ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-0R230iQEA38201204

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-0R220iQEA38201204

86300ANTENNA ASSY, W/HOLDER

main86760-0R020iQEA38201204-201208

sub86760-0R021

main86760-0R021iQEA38201209

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86761-47011iQEA38201204

86396NUT, ANTENNA

main86396-47010iQEA38201204

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

8271548100BRACKET,WIRING HARNESS CLAMP

main82715-48100

9008011545

main90080-11545

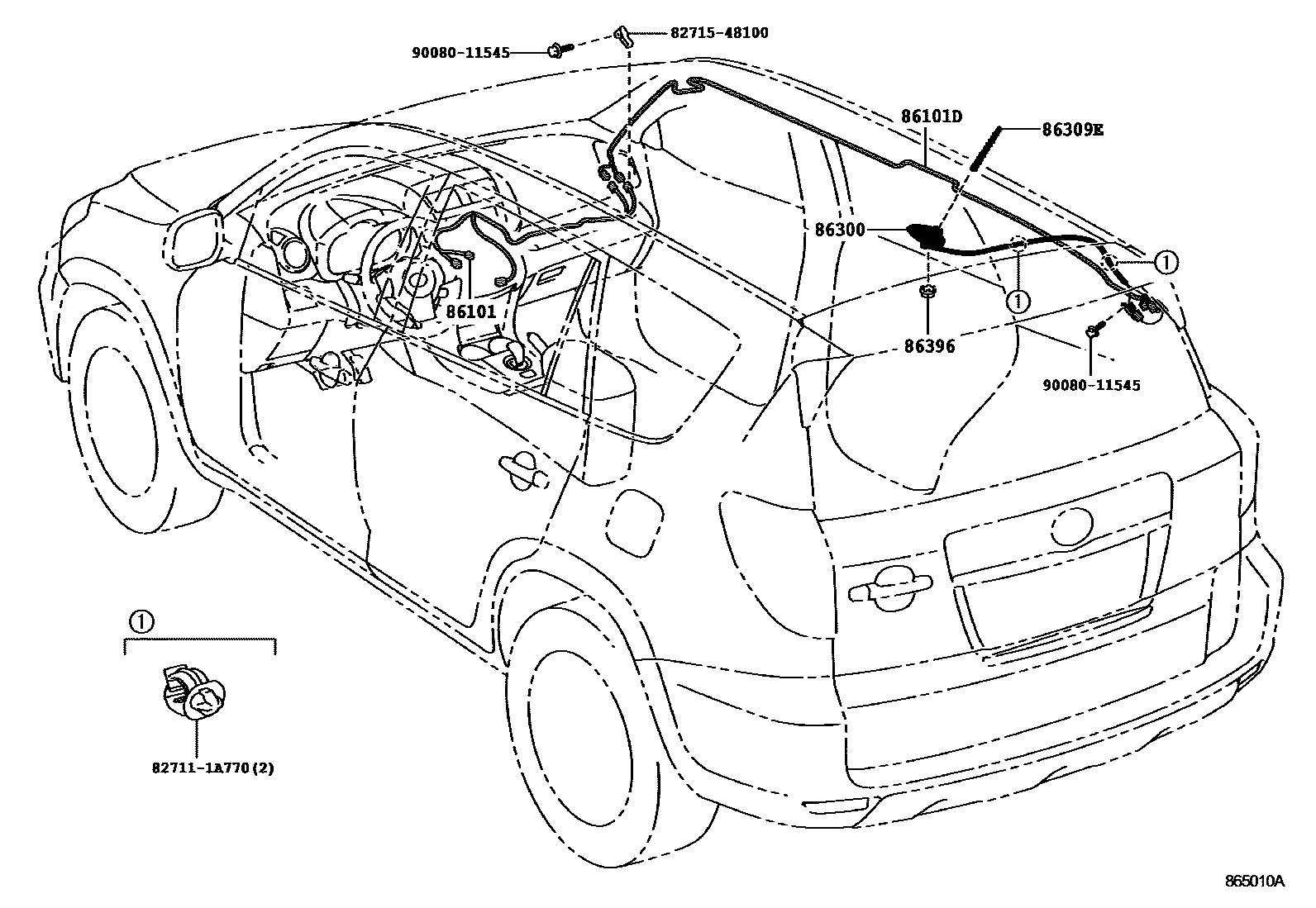

8 parts on this diagram · 1 diagram in section
