RADIO RECEIVER & AMPLIFIER & CONDENSER

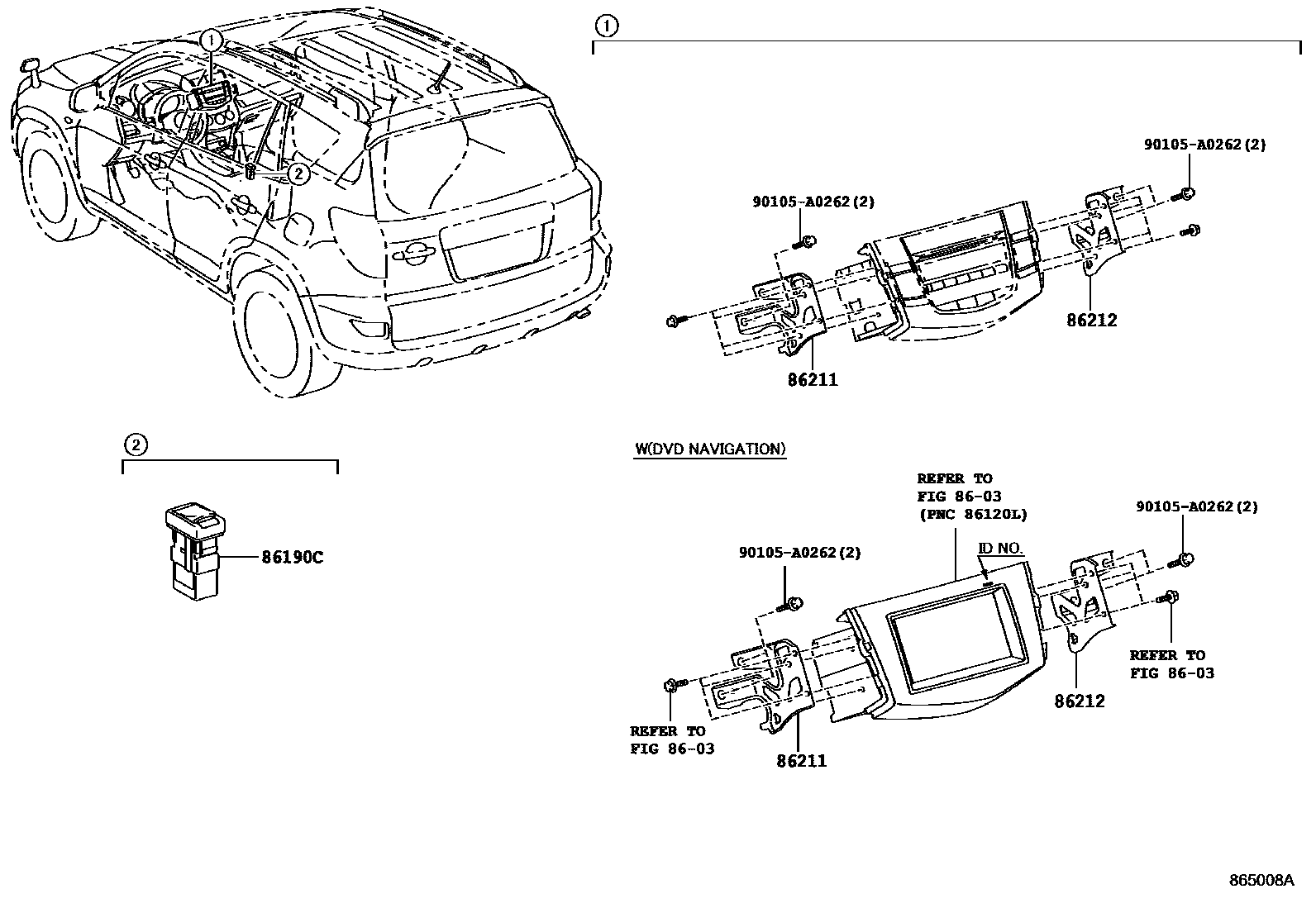

Parts diagram

8603

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-0C020i201204

86211BRACKET, RADIO, NO.1

main86211-0R010i201204-201408

86212BRACKET, RADIO, NO.2

main86212-0R010i201204-201408

90105A0262

main90105-A0262

5 parts on this diagram · 2 diagrams in section
