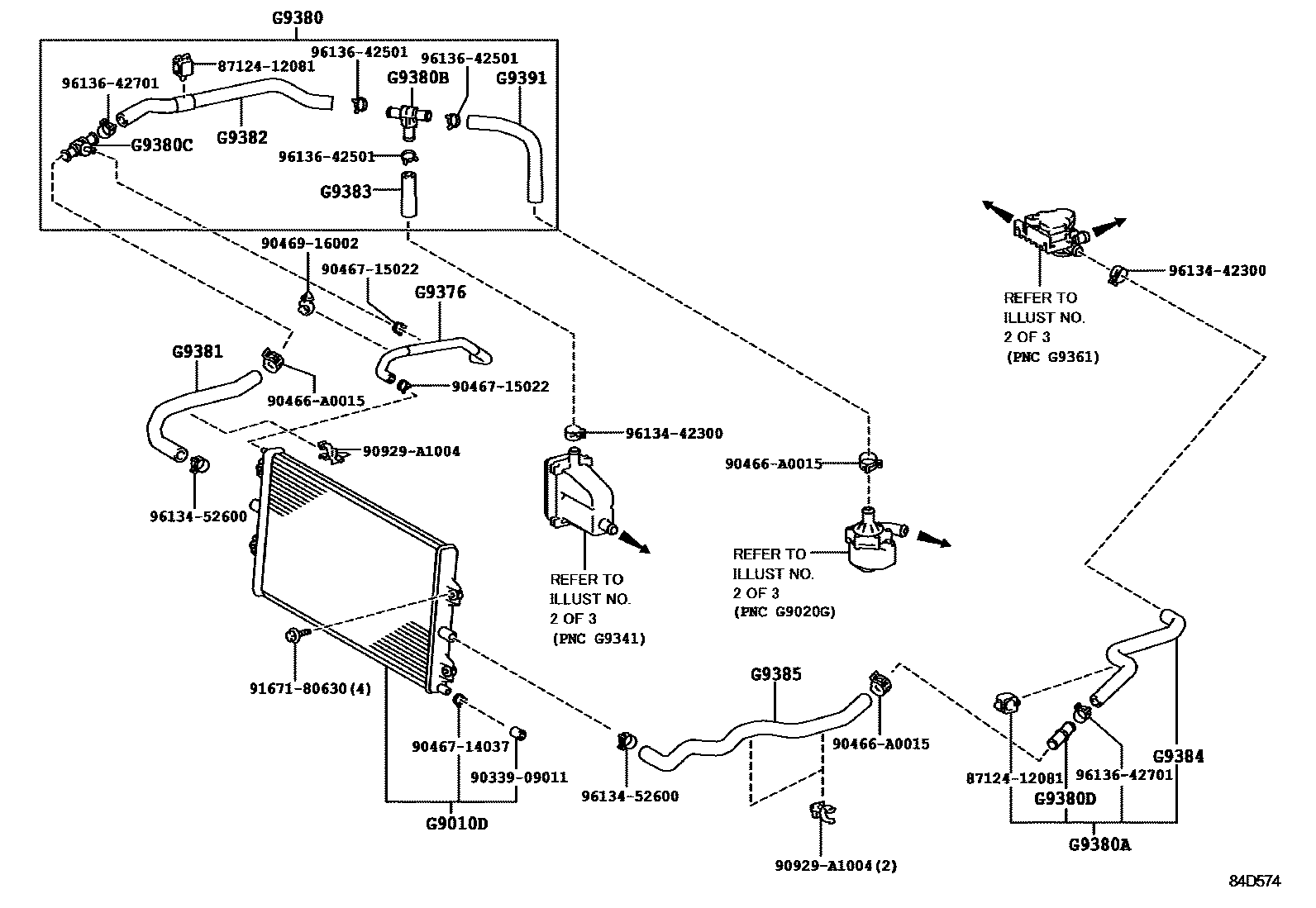

BEV COOLING

0001 1CONDENSOR SIDE 0002 1DC DC CONVERTER SIDE 0003 1BATTERY SIDE

G9010DRADIATOR ASSY

mainG90100R010iQEA38201204

G9376HOSE, EV WATER BY-PASS, NO.6

mainG93760R010iQEA38201204

G9380HOSE ASSY, EV RADIATOR, NO.1

mainG93800R010iQEA38201204

G9380AHOSE ASSY, EV RADIATOR, NO.2

mainG93800R020iQEA38201204

G9380BWAY, 3

main90413-17004iQEA38201204

G9380CWAY, 3

main90413-19004iQEA38201204

G9380DWAY, 3

main90412-19001iQEA38201204

G9381HOSE, EV RADIATOR, NO.1

mainG93810R030iQEA38201204

G9382HOSE, EV RADIATOR, NO.2

mainG93820R010iQEA38201204

G9383HOSE, EV RADIATOR, NO.3

mainG93830R010iQEA38201204

G9384HOSE, EV RADIATOR, NO.4

mainG93840R010iQEA38201204

G9385HOSE, EV RADIATOR, NO.5

mainG93850R010iQEA38201204

G9391HOSE, EV WATER PUMP, NO.1

mainG93910R010iQEA38201204

8712412081CLAMP, HEATER

main87124-12081

9033909011

main90339-09011

90466A0015

main90466-A0015

9046714037

main90467-14037

9046715022

main90467-15022

9046916002

main90469-16002

90929A1004

main90929-A1004

9167180630

main91671-80630

9613442300

main96134-42300

9613452600

main96134-52600

9613642501

main96136-42501

9613642701

main96136-42701

25 parts on this diagram · 3 diagrams in section
