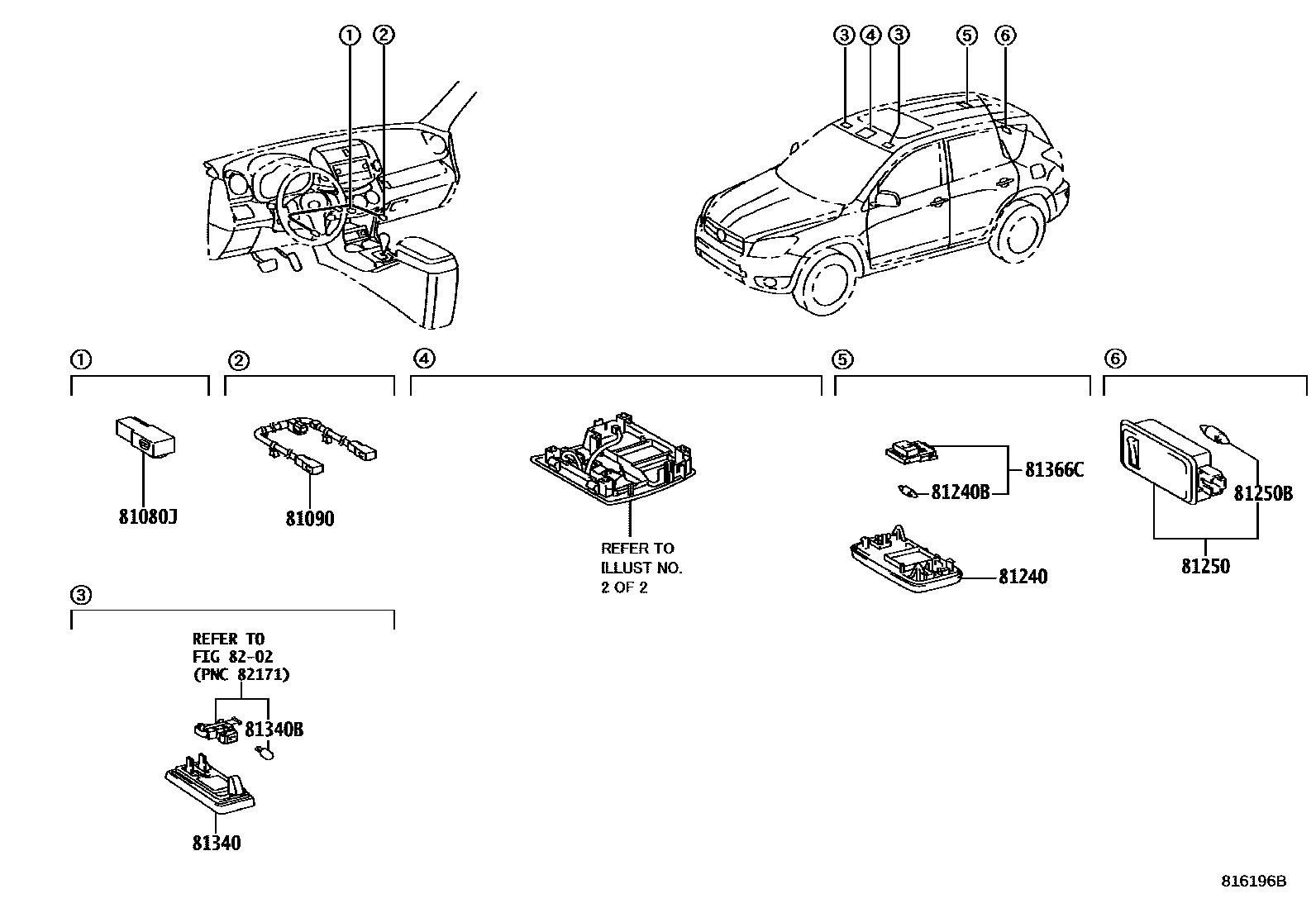

INTERIOR LAMP

0001 1 0002 1

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-42030iQEA38¥1,150201204-201408

81090LAMP ASSY, INTERIOR ILLUMINATION, NO.2

main81090-42020iQEA38201204

81240LAMP ASSY, ROOM, NO.1

main81240-02090-B1iQEA38201204-201408

GRAY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iQEA38¥180201204

12V 8W

81250LAMP ASSY, ROOM, NO.2

main81250-48010iQEA38¥2,420201204

81250BBULB, ROOM LAMP, NO.2

main99132-13050iQEA38¥150201204

12V 5W

81340LAMP ASSY, VANITY

main81340-30100-B1iQEA38201204-201205

GRAY,TRIM1#

main81340-30110iQEA38¥1,670201205

81340BBULB (FOR VANITY LAMP)

main90981-11062iQEA38¥340201204-201408

12V 8W

81366CBASE, ROOM LAMP SWITCH

main81366-02010iQEA38201204-201408

8202

10 parts on this diagram · 2 diagrams in section
