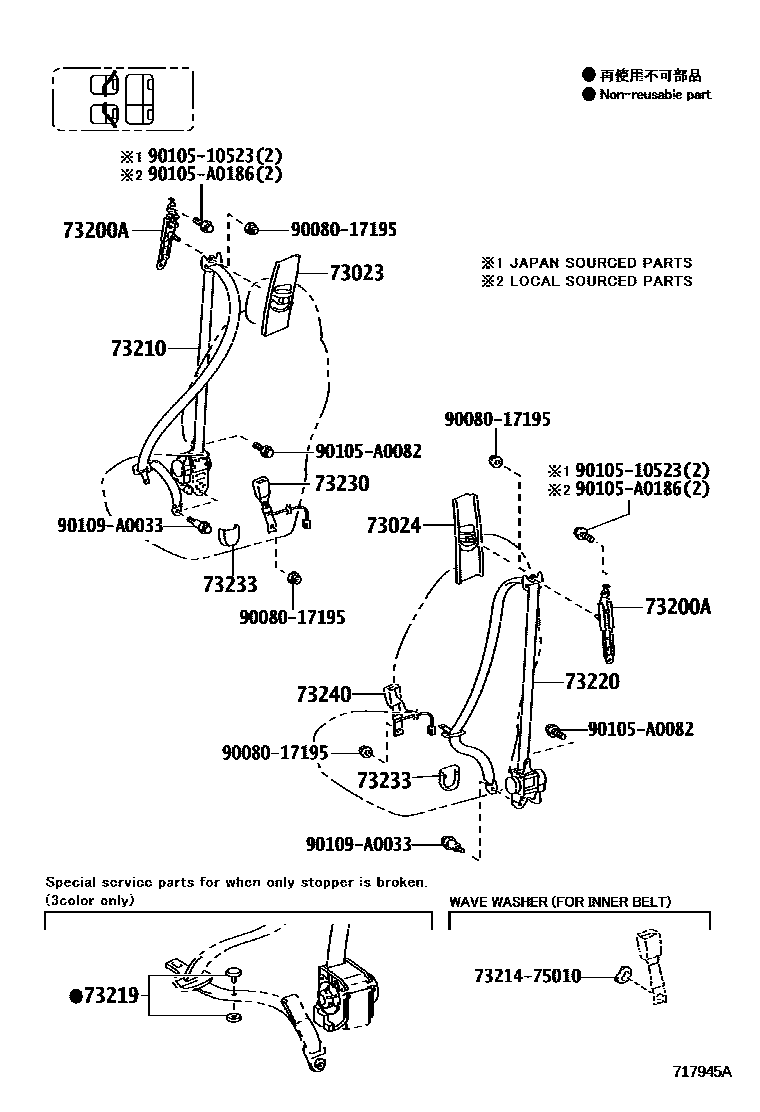

SEAT BELT

0001 1FRONT SEAT 0002 1REAR SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-0R010-B0iQEA38201204-201408

GRAY,TRIM1#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-0R010-B0iQEA38201204-201408

GRAY,TRIM1#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-06040iQEA38¥4,410201204

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-0R011-B3iQEA38201204-201408

GRAY,TRIM1#

73219STOPPER, TONGUE PLATE

main73219-02010iQEA38¥80201204

BLACK

main73219-02020iQEA38¥80201204

GRAY

main73219-02030iQEA38¥80201204

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-0R011-B3iQEA38201204-201408

GRAY,TRIM1#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0R020-B1iQEA38201204-201408

GRAY,TRIM1#

73233COVER, LAP BELT OUTER ANCHOR

main73233-0R010iQEA38201208

(L)

main73233-0R010-B0iQEA38201204-201208

GRAY,TRIM1#,(L)

sub73233-0R010

main73233-42030iQEA38¥310201204

(J)

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-0R010-B1iQEA38201204-201408

GRAY,TRIM1#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010¥170

9008017195

main90080-17195

9010510523

main90105-10523¥100

90105A0082

main90105-A0082

90105A0186

main90105-A0186

90109A0033

main90109-A0033

15 parts on this diagram · 2 diagrams in section
