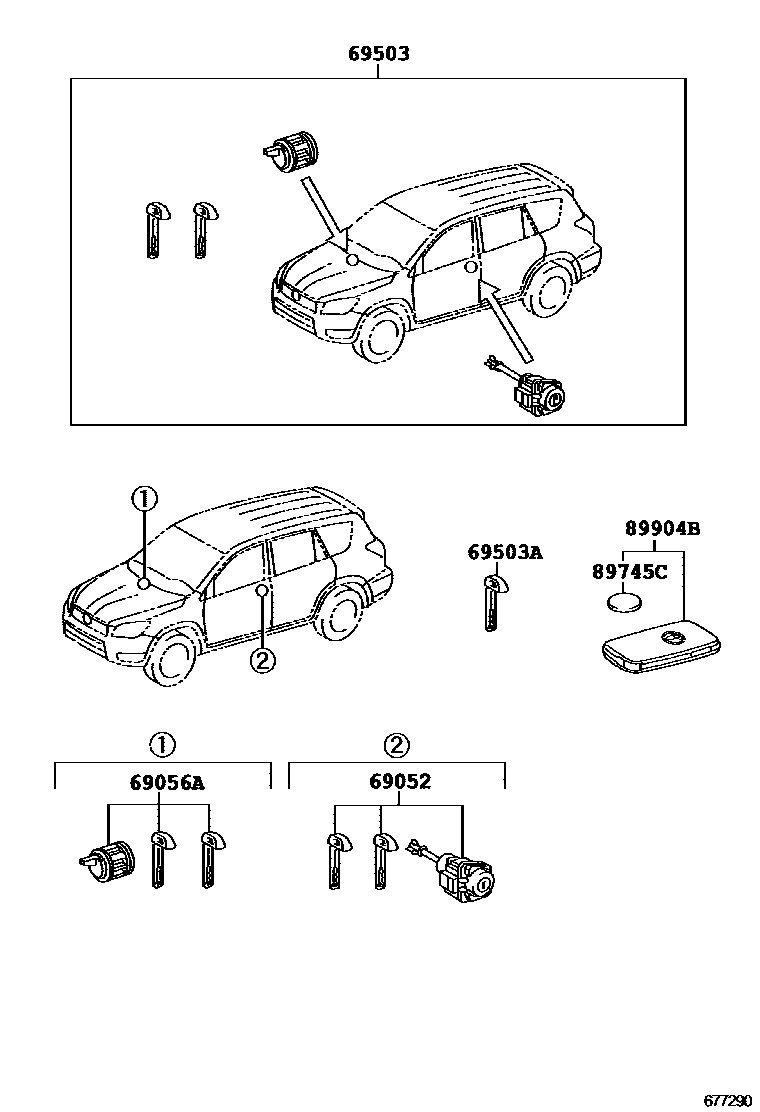

LOCK CYLINDER SET

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-0R020iQEA38201204

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-0R040iQEA38201204

69503CYLINDER SET, LOCK

main69005-0R040iQEA38201204

69503AKEY, BLANK

main69515-52120iQEA38201204

MASTER KEY,W(*68)

89745CBATTERY, TRANSMITTER

main89745-52020iQEA38201204

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-0R060iQEA38201204

6 parts on this diagram · 1 diagram in section
