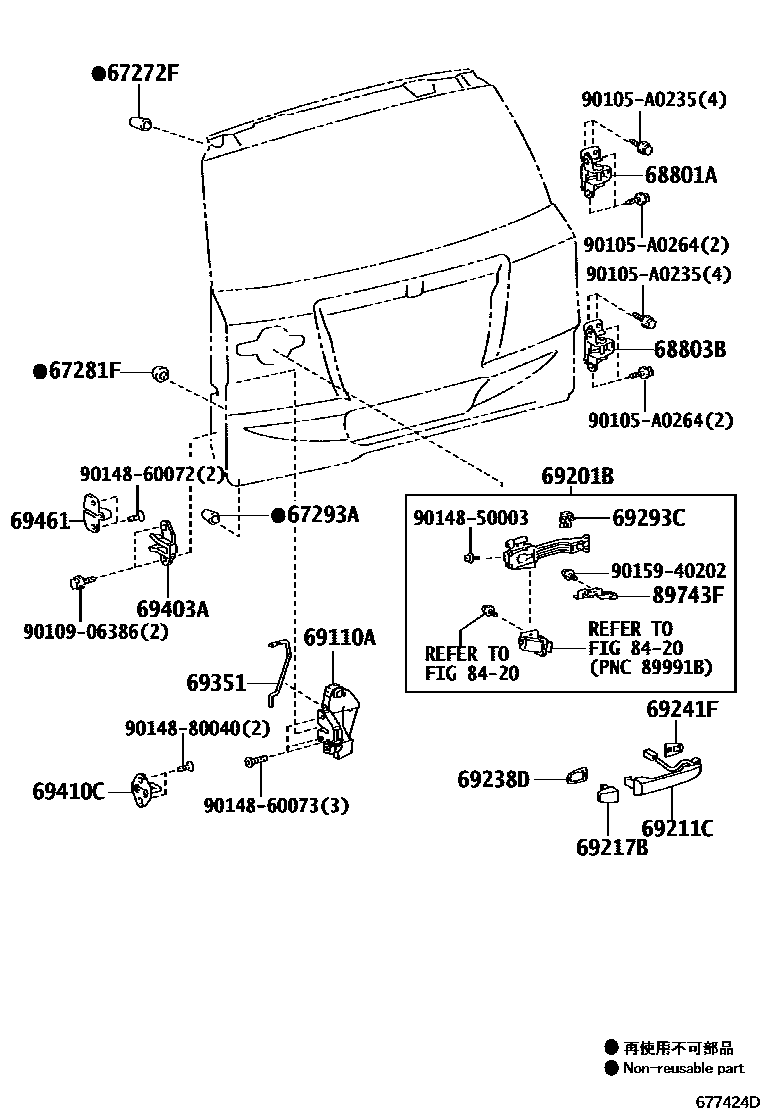

BACK DOOR LOCK & HINGE
67272FCUSHION, BACK DOOR STOPPER, NO.2
67281FSTOPPER, BACK DOOR, LOWER
67293ACUSHION, BACK DOOR STOPPER
68801AHINGE SUB-ASSY, BACK DOOR, UPPER
68803BHINGE SUB-ASSY, BACK DOOR, LOWER
69110ALOCK ASSY, BACK DOOR W/MOTOR
sub69110-42131
69201BFRAME SUB-ASSY, BACK DOOR OUTSIDE HANDLE
69211CHANDLE, BACK DOOR OUTSIDE
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAYISH BLUE M.M.,8V5
69217BCOVER, BACK DOOR OUTSIDE HANDLE
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAYISH BLUE M.M.,8V5
69238DCUSHION, BACK DOOR OUTSIDE HANDLE
69241FPAD, DOOR OUTSIDE HANDLE
69293CSNAP, BACK DOOR HANDLE
69351ROD, BACK DOOR LOCK CONTROL, UPPER
69403ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH
69410CPLATE ASSY, BACK DOOR LOCK STRIKER
69461STOPPER, BACK DOOR SIDE MALE, RH
8420
89743FBRACKET, ELECTRICAL KEY WIRE HARNESS
90105A0235
main90105-A0235
90105A0264
main90105-A0264
9010906386
main90109-06386
9014850003
main90148-50003
9014860072
main90148-60072
9014860073
main90148-60073
9014880040
main90148-80040
9015940202
main90159-40202
26 parts on this diagram · 1 diagram in section
