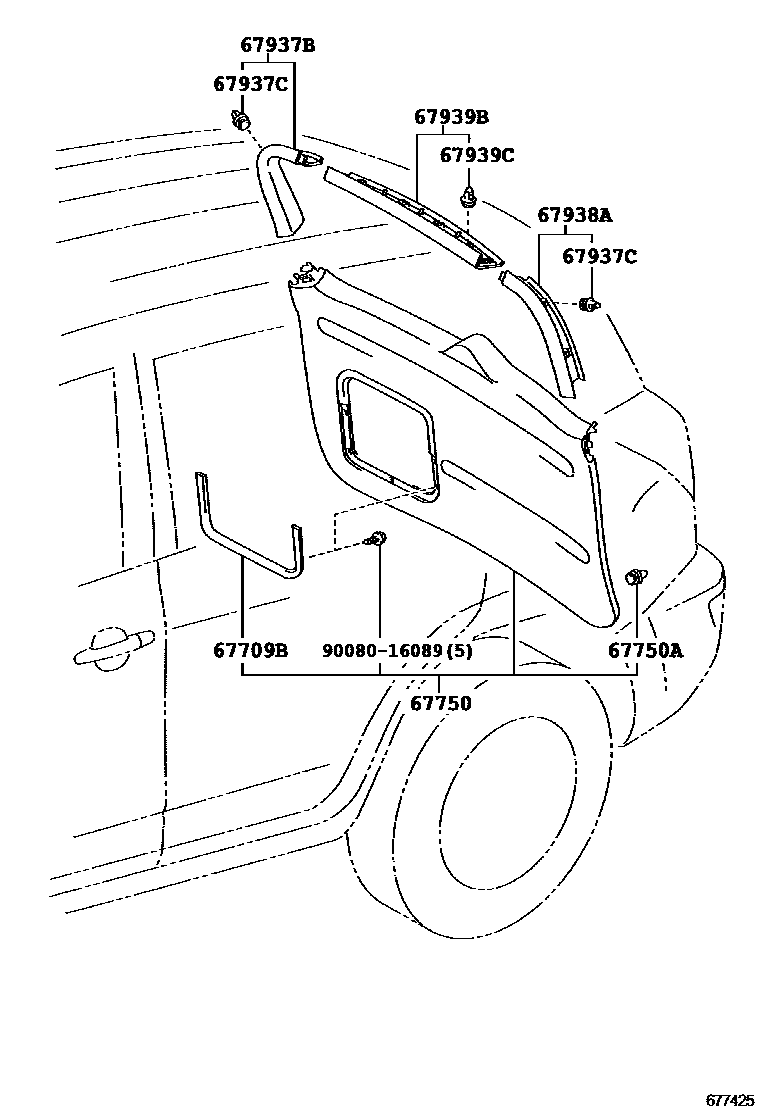

BACK DOOR PANEL & GLASS

0001 1DOOR TRIM 0002 1DOOR PANEL 0003 1DOOR GARNISH

67709BPOCKET SUB-ASSY, BACK DOOR TRIM

main67709-0R010-B1iQEA38201204-201408

DK.GRAY,TRIM1#

67750BOARD ASSY, BACK DOOR TRIM

main67750-0R060-B0iQEA38201204-201408

DARK GRAY,TRIM1#

67750ACLIP(FOR BACK DOOR TRIM)

main90467-09206iQEA38201204

67937BGARNISH, BACK DOOR SIDE, RH

main67937-0R010-B0iQEA38201204-201408

GRAY,TRIM1#

67937CCLIP(FOR BACK DOOR SIDE GARNISH)

main90467-10161iQEA38201204

67938AGARNISH, BACK DOOR SIDE, LH

main67938-0R010-B0iQEA38201204-201408

GRAY,TRIM1#

67939BGARNISH, BACK DOOR, CENTER

main67939-0R010-B0iQEA38201204-201408

GRAY,TRIM1#

67939CCLIP(FOR BACK DOOR CENTER GARNISH)

main90467-10161iQEA38201204

9008016089

main90080-16089

9 parts on this diagram · 3 diagrams in section
