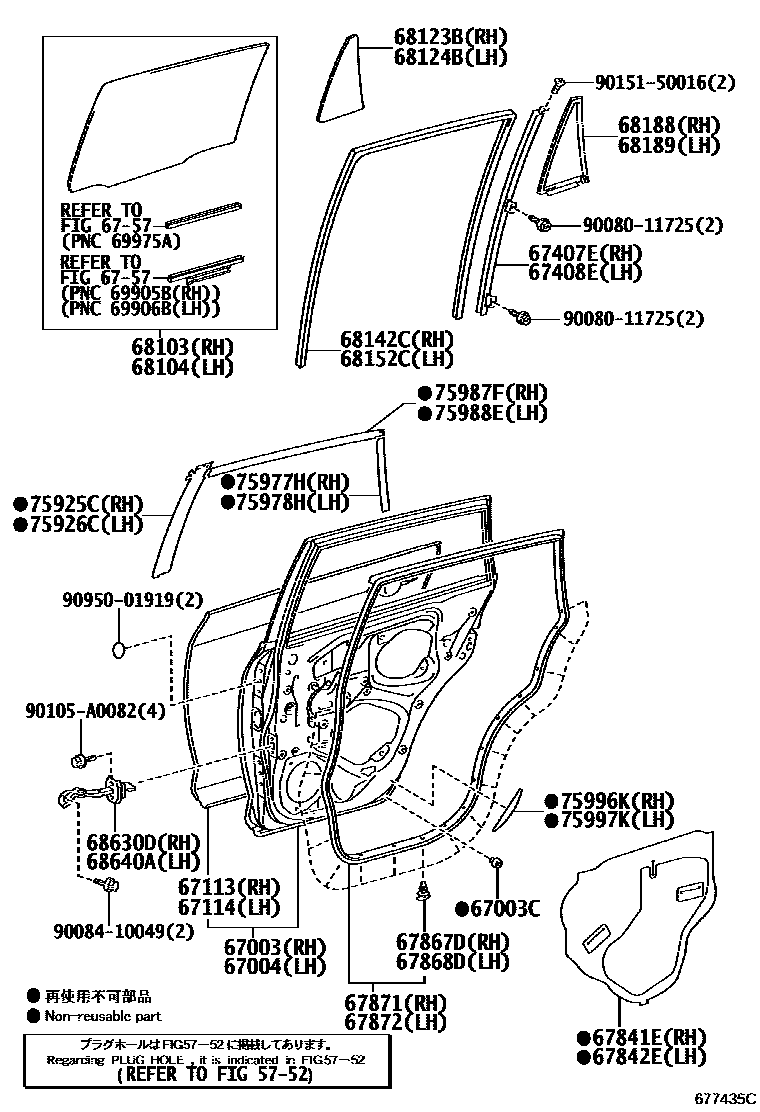

REAR DOOR PANEL & GLASS
5752
67003PANEL SUB-ASSY, REAR DOOR, RH
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
6757
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*TEM,T=3.1,GREEN
68104GLASS SUB-ASSY, REAR DOOR, LH
*TEM,T=3.1,GREEN
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
*TEM,T=3.1,DARK GRAY
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
*TEM,T=3.1,DARK GRAY
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
75925CTAPE, BLACK OUT, NO.3 RH
75926CTAPE, BLACK OUT, NO.3 LH
75977HSTRIPE, REAR DOOR OUTSIDE, LOWER RH
75978HSTRIPE, REAR DOOR OUTSIDE, LOWER LH
75987FSTRIPE, REAR DOOR, OUTSIDE, RH
75988ESTRIPE, REAR DOOR, OUTSIDE LH
75996KSTRIPE, REAR BODY, RH
75997KSTRIPE, REAR BODY, LH
9008011725
main90080-11725
9008410049
main90084-10049
90105A0082
main90105-A0082
9015150016
main90151-50016
9095001919
main90950-01919
38 parts on this diagram · 2 diagrams in section
