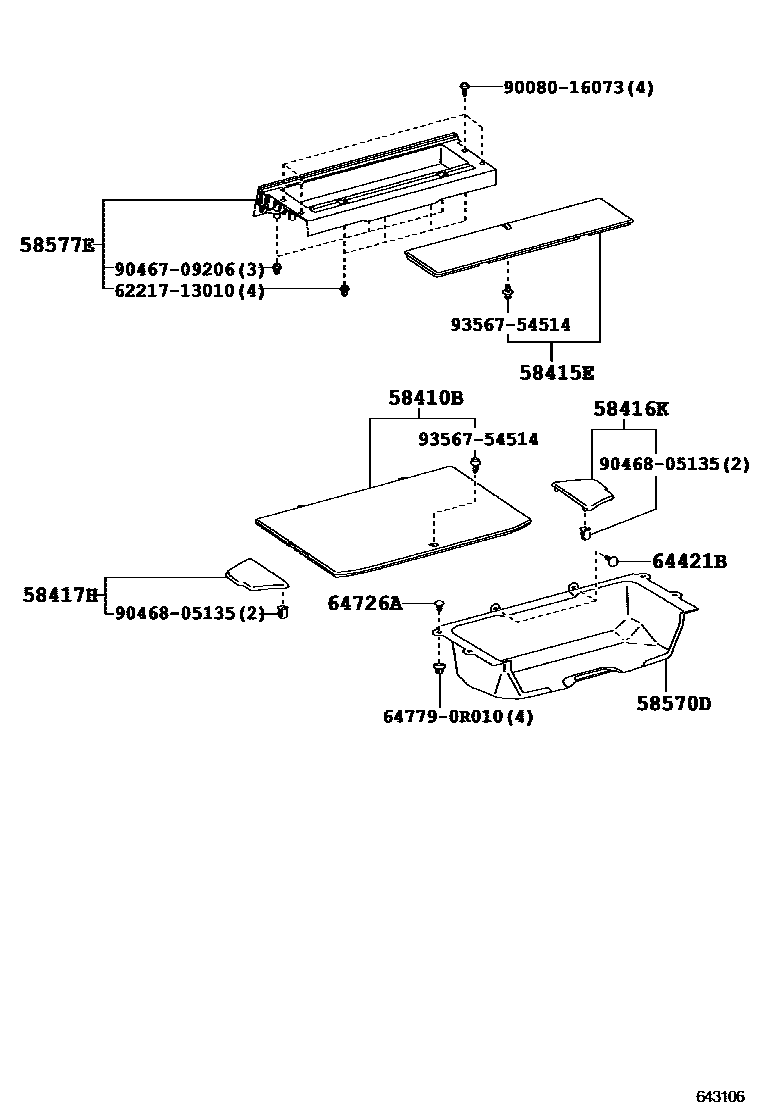

DECK BOARD & DECK TRIM COVER

58410BBOARD ASSY, DECK

main58410-0R010-B7iQEA38201204-201212

GRAY,TRIM1#

main58410-0R060-B0iQEA38201301-201408

GRAY,TRIM1#

58415EBOARD, REAR FLOOR, NO.1

main58415-0R010-B7iQEA38201204-201212

GRAY,TRIM1#

main58415-0R050-B0iQEA38201301-201408

GRAY,TRIM1#

58416KBOARD, REAR FLOOR, NO.2

main58416-0R010-B0iQEA38201204-201408

DK.GRAY,TRIM1#

58417HBOARD, REAR FLOOR, NO.3

main58417-0R010-B0iQEA38201204-201408

DK.GRAY,TRIM1#

58570DCARPET ASSY, REAR FLOOR

main58571-0R010iQEA38201204

58577EPLATE, REAR FLOOR MAT SUPPORT SIDE, NO.1

main58577-0R010-B2iQEA38201204-201408

DK.GRAY,TRIM1#

64421BCLIP(FOR LUGGAGE COMPARTMENT TRAY)

main90467-05164-C0iQEA38201204-201408

BLACK

sub90467-05164

64726ACLIP, LUGGAGE TRIM, REAR

main64726-26010-B2iQEA38201204-201408

GRAY,TRIM1#

6221713010COVER, RAIL ROOF SIDE, INNER CENTER

main62217-13010

647790R010TRAY, SPARE WHEEL COVER

main64779-0R010

9008016073

main90080-16073

9046709206

main90467-09206

9046805135

main90468-05135

9356754514

main93567-54514

14 parts on this diagram · 1 diagram in section
