SIDE MEMBER
5752
61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH
61033AREINFORCE SUB-ASSY, BACK DOOR OPENING SIDE
61033BPILLAR SUB-ASSY, NO.2 INNER, RH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61103AREINFORCEMENT SUB-ASSY, COWL SIDE, RH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61161PILLAR, FRONT BODY, UPPER INNER RH
61201RAIL SUB-ASSY, ROOF SIDE, RH
61211RAIL, ROOF SIDE, OUTER RH
61213BRAIL, ROOF SIDE, OUTER NO.2 RH
61311BPILLAR, CENTER BODY, OUTER RH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61611PANEL, QUARTER, RH
61617BPANEL, QUARTER INNER, LOWER RH
61621DTROUGH, BACK DOOR OPENING, RH
61625GEXTENSION, QUARTER PANEL, REAR RH
61627CREINFORCEMENT, QUARTER INNER PANEL, RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61635EEXTENSION, QUARTER WHEEL HOUSE, RH
61655BGUSSET, QUARTER WHEEL HOUSE, INNER RH
61663BREINFORCEMENT, QUARTER WHEEL HOUSE, INNER CENTER RH
61701BPANEL SUB-ASSY, ROOF SIDE, INNER UPPER RH
61703HREINFORCEMENT SUB-ASSY, ROOF SIDE, INNER RH
61707LPANEL SUB-ASSY, ROOF SIDE, INNER FRONT RH
61719CBRACKET, ROOF SIDE RAIL, RH
61731BPANEL, ROOF SIDE, INNER RH
61733APANEL, ROOF SIDE, INNER FRONT RH
61735APANEL, ROOF SIDE, INNER REAR RH
61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH
61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH
61824PLATE, NOISE CONTROL, NO.1
61825APLATE, NOISE CONTROL, NO.2
61893ARETAINER, BACK DOOR LOWER HINGE, RH
62611FINSULATOR, QUARTER WHEEL HOUSE, RH
67873HWEATHERSTRIP, CENTER DOOR, UPPER NO.1
75998GSTRIPE, QUARTER, LOWER RH
9008011549
main90080-11549
9008011699
main90080-11699
9011906869
main90119-06869
90178A0024
main90178-A0024

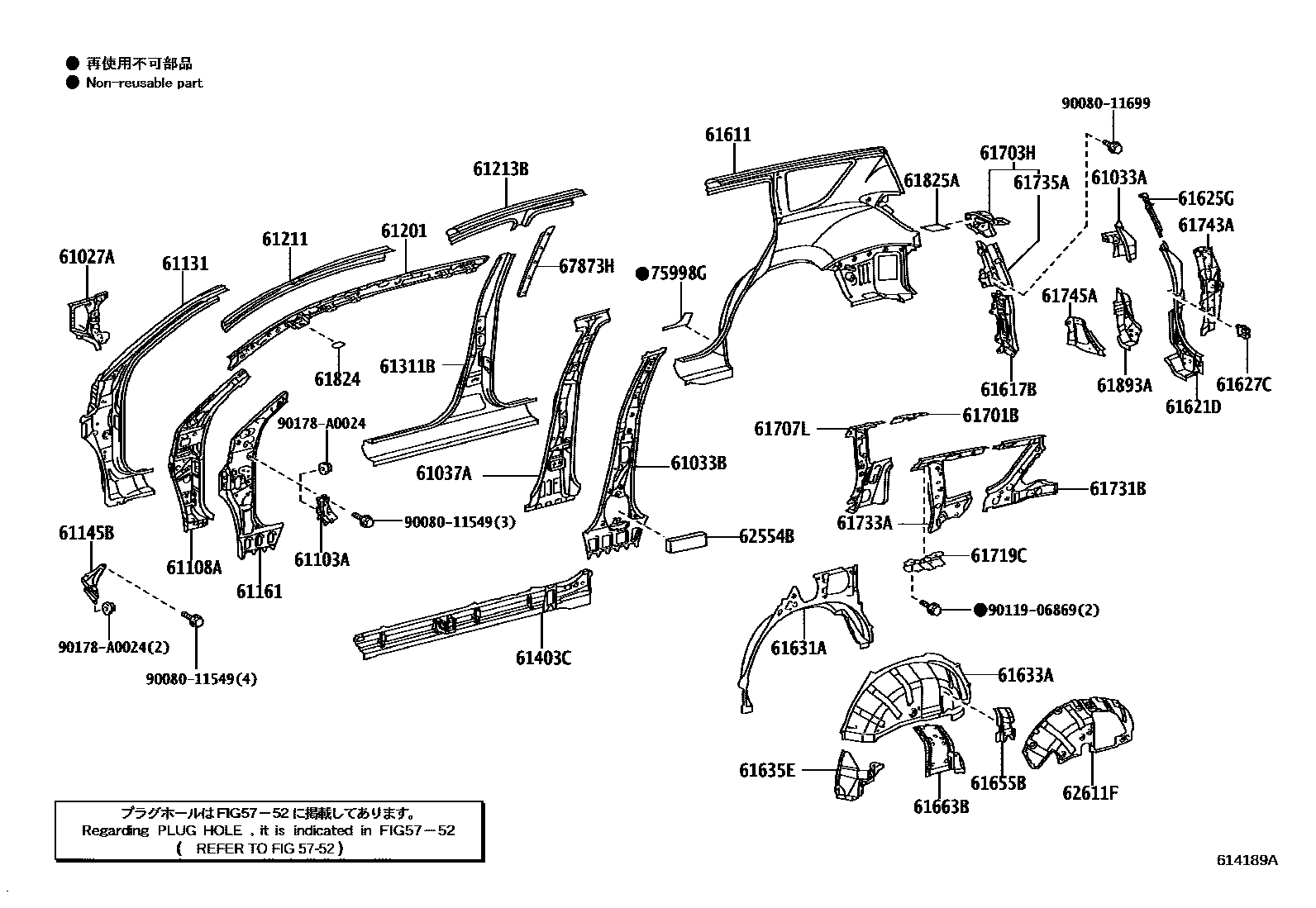

45 parts on this diagram · 2 diagrams in section
