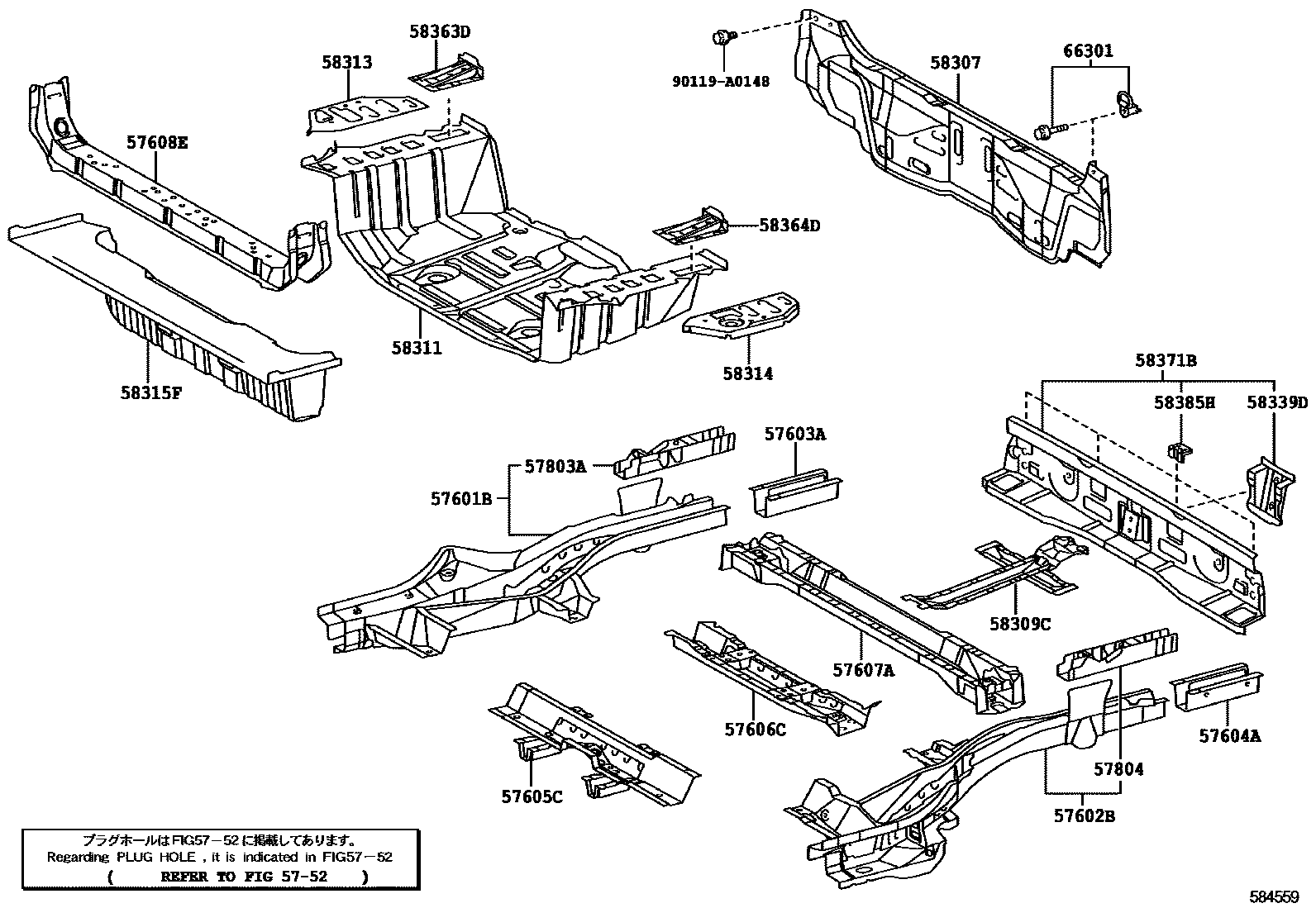

REAR FLOOR PANEL & REAR FLOOR MEMBER

5752

57601BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH

main57601-0R030i201204-201311

sub57601-0R031

main57601-0R031i201312

57602BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH

main57602-0R030i201204-201311

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-0R010i201204

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-0R010i201204

57605CMEMBER SUB-ASSY, REAR FLOOR CROSS

main57605-0R010i201204-201205

sub57605-0R011

main57605-0R011i201206

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-0R040i201204

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-0R011i201204

57608EREINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, RH

main57608-0R010i201204

57803AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH

main57803-0R010i201204

57804REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH

main57804-0R010i201204

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-0R011i201204

58309CGUARD SUB-ASSY, REAR VALANCE PANEL

main58309-0R020i201204

58311PAN, REAR FLOOR

main58311-0R010i201204

58313PANEL, REAR FLOOR SIDE, RH

main58313-0R010i201204

58314PANEL, REAR FLOOR SIDE, LH

main58314-0R010i201204

58315FEXTENSION, REAR FLOOR SIDE PANEL, FRONT

main58315-0R010i201204

58339DBRACKET, JACK UP

main58339-0R011i201204

58363DREINFORCEMENT, REAR FLOOR PANEL, NO.2 RH

main58363-0R011i201204

58364DREINFORCEMENT, REAR FLOOR PANEL, NO.2 LH

main58364-0R011i201204

58371BPANEL, BODY LOWER BACK, OUTER

main58302-0R011i201204

58385HBRACKET, REAR BUMPER COVER, NO.1

main58385-0R010i201204

66301HOOK SUB-ASSY, ROPE

main66301-42010i¥1,940201204

90119A0148

main90119-A0148

24 parts on this diagram · 1 diagram in section
