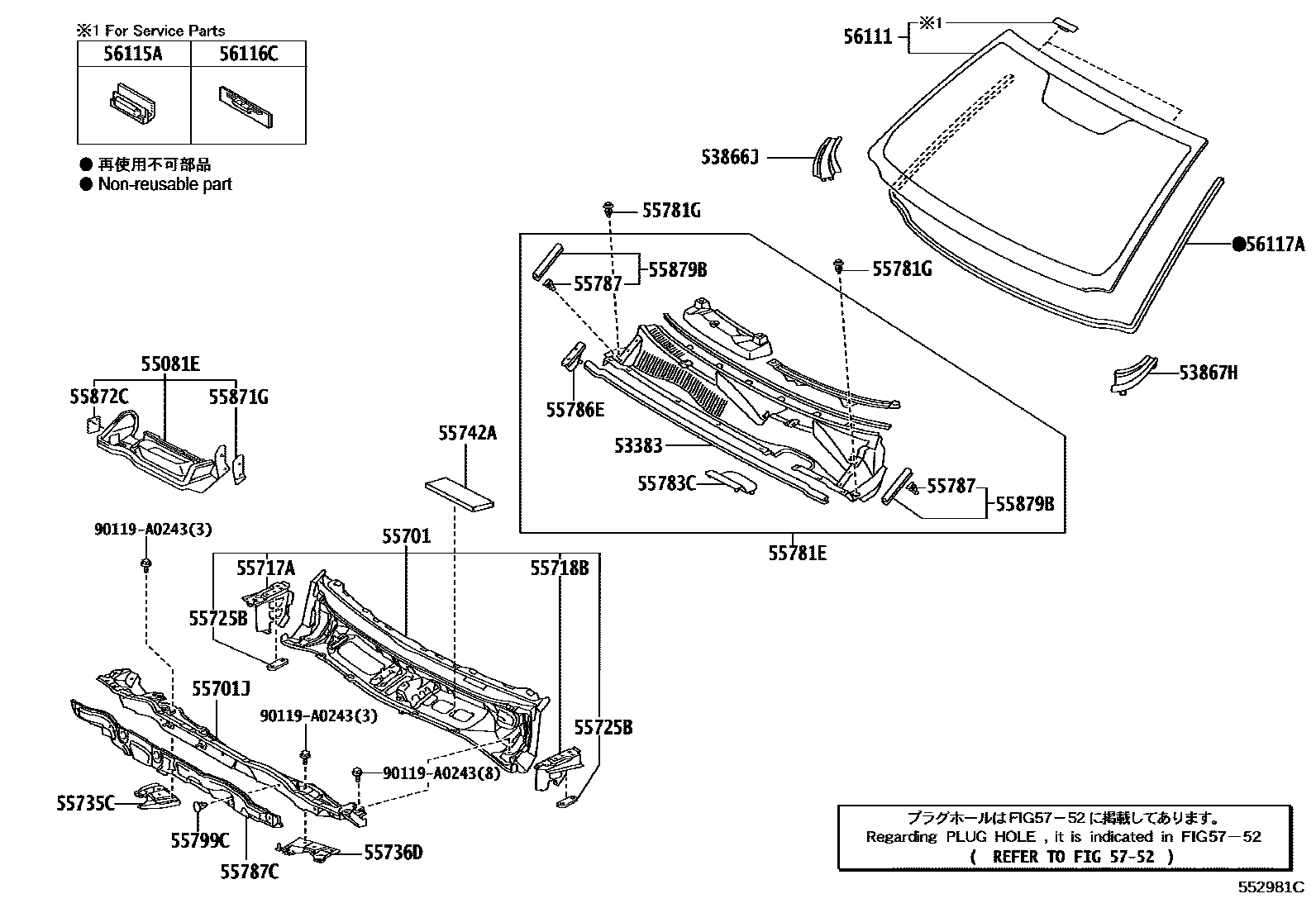

COWL PANEL & WINDSHIELD GLASS
53383SEAL, HOOD TO COWL TOP
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
55081EHOUSING SUB-ASSY, COWL VENTILATOR
55701PANEL SUB-ASSY, COWL
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55717APANEL, COWL TOP SIDE, INNER RH
55718BPANEL, COWL TOP SIDE, INNER LH
55725BREINFORCEMENT, HOOD HINGE MOUNTING
55735CREINFORCEMENT, COWL BODY MOUNTING, RH
55736DREINFORCEMENT, COWL BODY MOUNTING, LH
55742ASHEET, COWL TOP INSULATOR
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
sub55708-0R011
55781GCLIP, COWL TOP VENTILATOR LOUVER
55783CBRACKET, COWL TOP VENTILATOR LOUVER, RH
55786EPLATE, COWL TOP VENTILATOR LOUVER
55787CLIP, COWL VENTILATOR LOUVER, INNER
55787CINSULATOR, COWL TOP PANEL, NO.1
55799CCLIP, COWL TOP VENTILATOR LOUVER
55871GSEAL, AIR DUCT, NO.1
55872CSEAL, AIR DUCT, NO.2
55879BSEAL, COWL VENT
56111GLASS, WINDSHIELD
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
5752
90119A0243
main90119-A0243
28 parts on this diagram · 1 diagram in section
