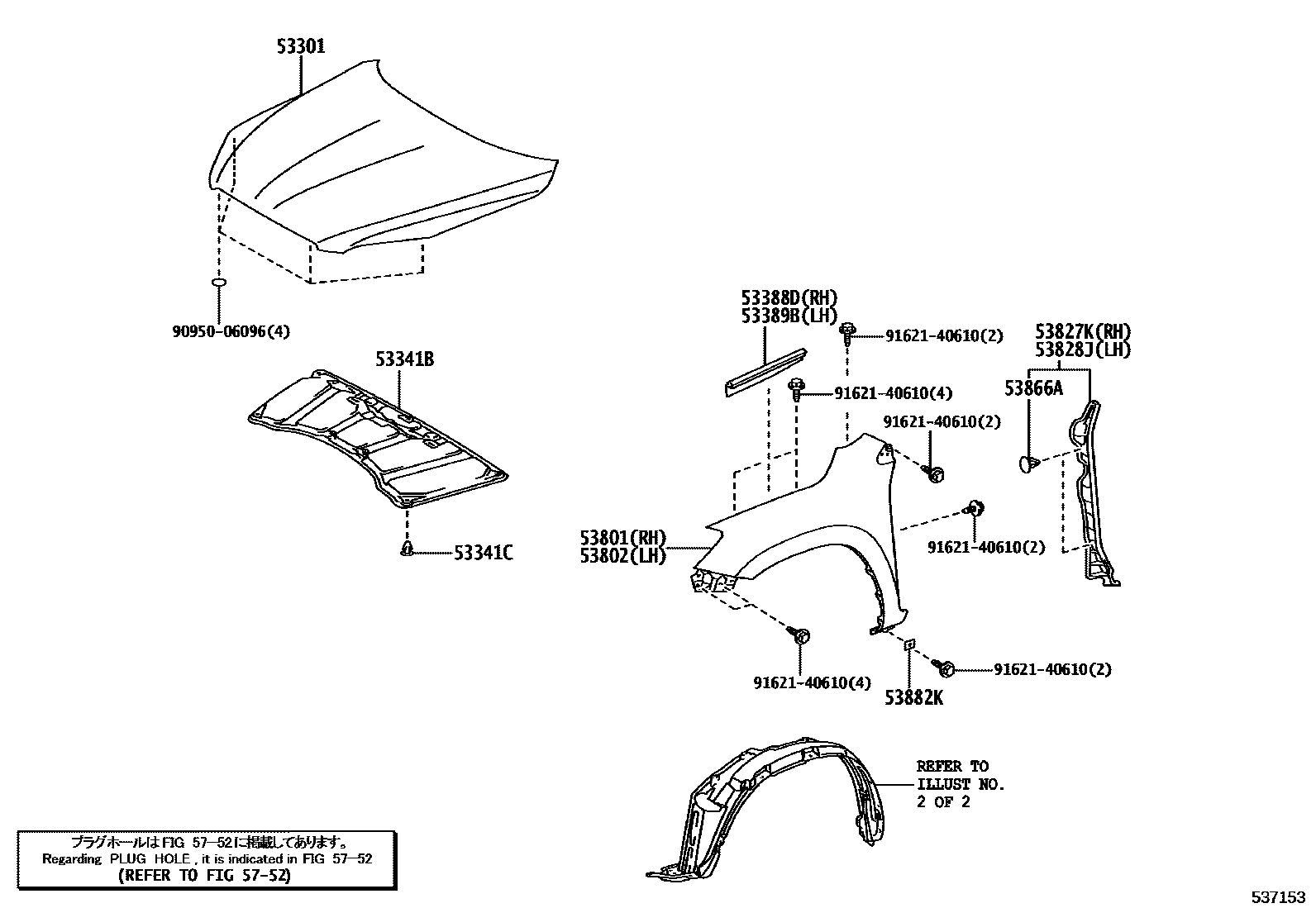

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-0R020iQEA38201204

53341BINSULATOR, HOOD

main53341-0R010iQEA38201204

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iQEA38201204

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-0R010iQEA38201204

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-0R010iQEA38201204

53801FENDER SUB-ASSY, FRONT RH

main53801-0R050iQEA38201204

53802FENDER SUB-ASSY, FRONT LH

main53802-0R020iQEA38201204

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-0R010iQEA38201204

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-0R010iQEA38201204

53866ACLIP(FOR FRONT FENDER TO COWL SIDE SEAL)

main90467-10005-C0iQEA38201204-201408

BLACK

sub90467-10005

sub90467-06017

53882KSEAL, FRONT FENDER

main53882-16030iQEA38201204

5752

9095006096

main90950-06096

9162140610

main91621-40610

14 parts on this diagram · 2 diagrams in section
