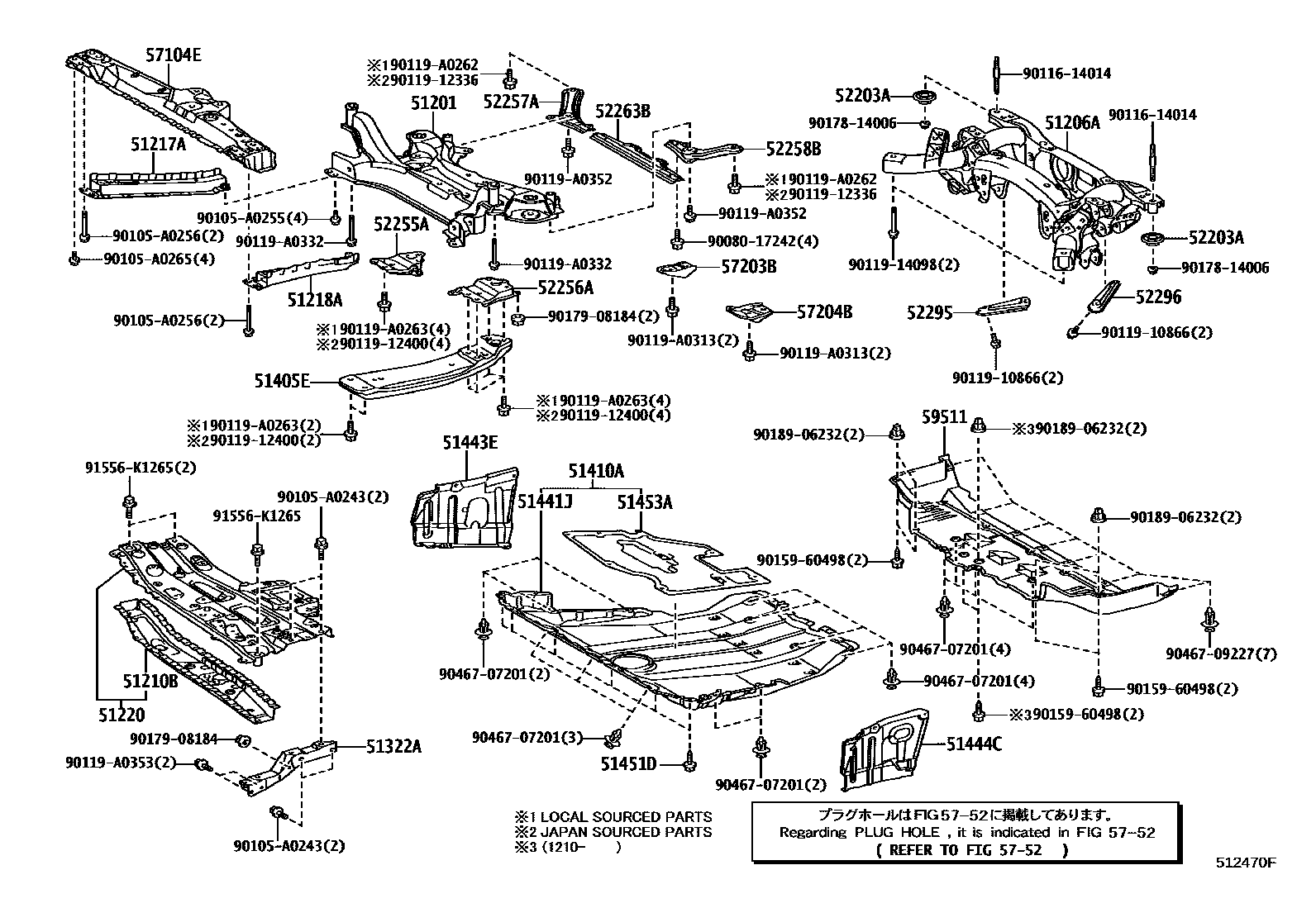

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-0R020iQEA38201204-201309

main51201-0R021iQEA38201309

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-0R032iQEA38201204-201402

sub51206-0R034

main51206-0R034iQEA38201403-201408

sub51206-78010

51210BCROSSMEMBER ASSY, FRAME, NO.1

main51210-0R010iQEA38201204

51217AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51107-0R010iQEA38201204-201208

sub51107-42010

main51107-0R040iQEA38201208

51218AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51108-0R010iQEA38201204-201208

sub51108-42010

main51108-0R030iQEA38201208

51220CROSSMEMBER ASSY, FRAME, NO.2

main51220-0R010iQEA38201204-201408

51322ABRACKET, FR SUSPENSION CROSSMEMBER, LH

main51322-0R010iQEA38201204

51405EBRACE SUB-ASSY, MOTOR UNDER

main51405-0R010iQEA38201204-201302

sub51405-0R011

main51405-0R011iQEA38201303

51410ACOVER ASSY, MOTOR UNDER, NO.1

main51410-0R060iQEA38201204-201205

sub51410-0R061

main51410-0R061iQEA38201205

51441JCOVER, MOTOR UNDER

main51441-0R040iQEA38201204-201205

sub51441-0R041

main51441-0R041iQEA38201205

51443ECOVER, MOTOR UNDER, REAR RH

main51443-0R030iQEA38201204

51444CCOVER, MOTOR UNDER, REAR LH

main51444-0R020iQEA38201204

51451DSCREW, NO.1

main90159-60498iQEA38201204-201408

51453ASILENCER, MOTOR UNDER COVER, FRONT

main51453-0R020iQEA38201204

52203ACUSHION SUB-ASSY, BODY MOUNTING, REAR UPPER

main52203-0R030iQEA38201204

52255ABRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-0R030iQEA38201204

52256ABRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-0R020iQEA38201204

52257ABRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-0R031iQEA38201204

52258BBRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-0R030iQEA38201204

52263BRETAINER, FRONT SUSPENSION MEMBER CUSHION, NO.1

main52263-0R010iQEA38201204-201211

main52263-0R011iQEA38201211

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-12040iQEA38201204

52296BRACE, REAR SUSPENSION MEMBER, LH

main52296-12010iQEA38201204

57104EMEMBER SUB-ASSY, FRONT CROSS

main57104-0R030iQEA38201204

57203BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57203-0R010iQEA38201204

57204BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57204-0R010iQEA38201204

5752

59511BOARD, UPR FLOOR, NO.1

main59511-0R010iQEA38201204-201205

sub59511-0R011

main59511-0R011iQEA38201205-201210

main59511-0R012iQEA38201210

9008017242

main90080-17242

90105A0243

main90105-A0243

90105A0255

main90105-A0255

90105A0256

main90105-A0256

90105A0265

main90105-A0265

9011614014

main90116-14014

9011910866

main90119-10866

9011912336

main90119-12336

9011912400

main90119-12400

9011914098

main90119-14098

90119A0262

main90119-A0262

90119A0263

main90119-A0263

90119A0313

main90119-A0313

90119A0332

main90119-A0332

90119A0352

main90119-A0352

90119A0353

main90119-A0353

9015960498

main90159-60498

9017814006

main90178-14006

9017908184

main90179-08184

9018906232

main90189-06232

9046707201

main90467-07201

9046709227

main90467-09227

91556K1265

main91556-K1265

50 parts on this diagram · 1 diagram in section
