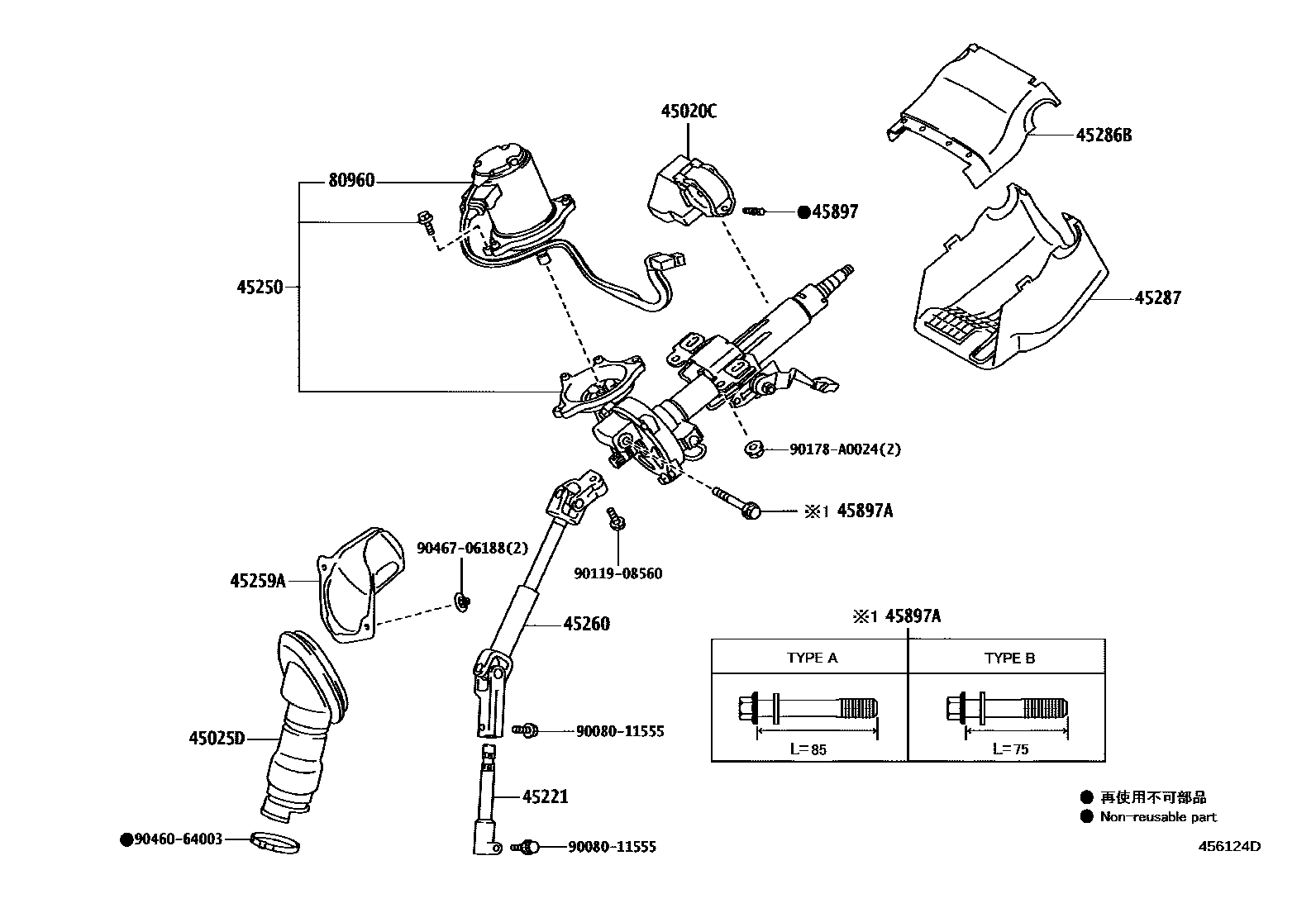

STEERING COLUMN & SHAFT
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45221SHAFT, STEERING INTERMEDIATE
45250COLUMN ASSY, STEERING
45259ASHEET, COLUMN HOLE COVER SILENCER
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45286BCOVER, STEERING COLUMN, UPR
DK.GRAY,TRIM1#
45287COVER, STEERING COLUMN, LWR
DK.GRAY,TRIM1#
45897BOLT, STEERING LOCK SET
45897ABOLT, TILT STEERING PAWL SET
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
80960MOTOR ASSY, POWER STEERING
9008011555
main90080-11555
9011908560
main90119-08560
90178A0024
main90178-A0024
9046064003
main90460-64003
9046706188
main90467-06188
16 parts on this diagram · 1 diagram in section
