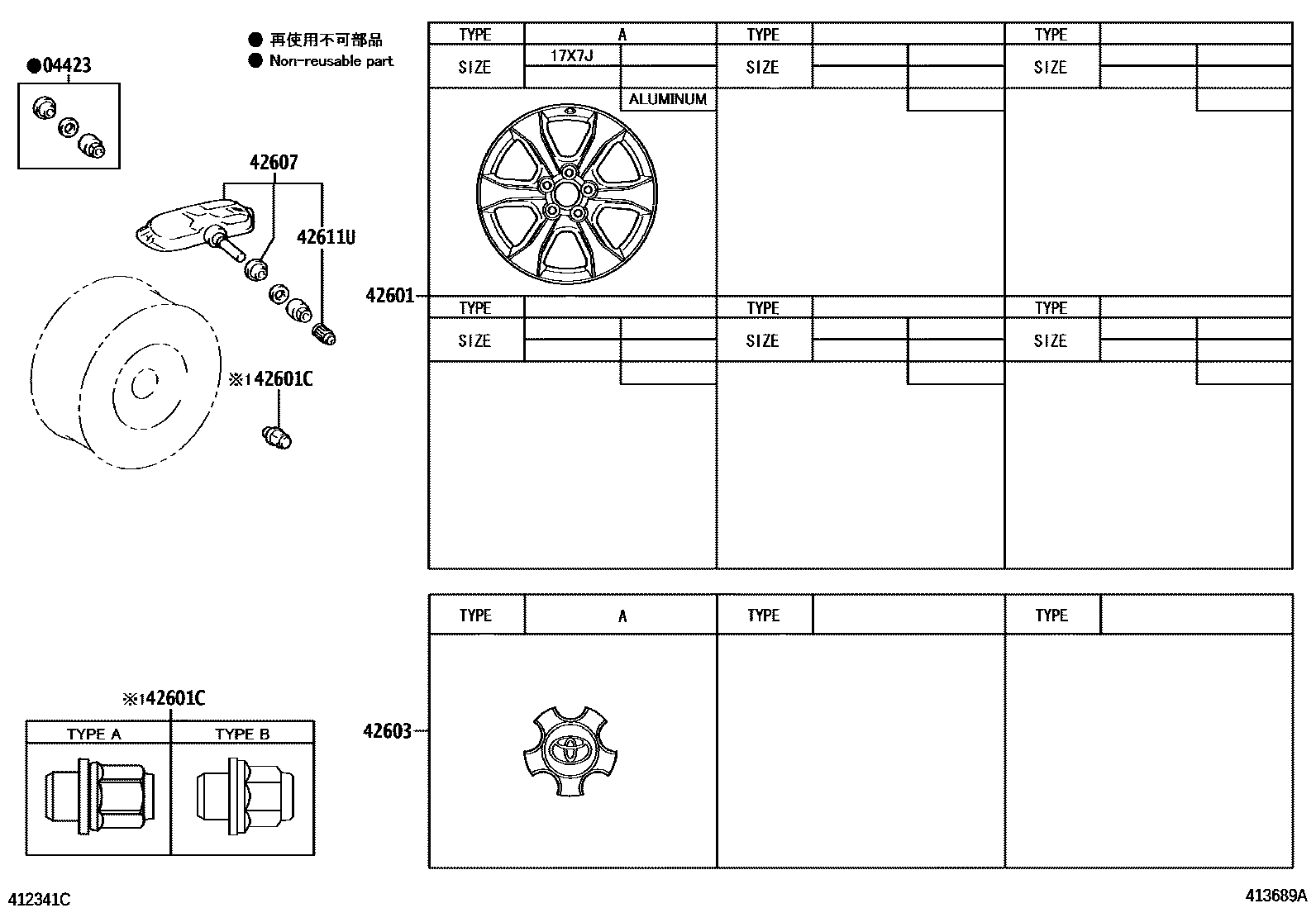

DISC WHEEL & WHEEL CAP

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-0E010iQEA38201204

42601WHEEL, DISC

main42611-0R030iQEA38201204

17X7J, #,TYPE A:REFER ILLUST.

sub42611-42371

42601CNUT, HUB (FOR AXLE)

main90084-94001iQEA38201204

TYPE A:REFER ILLUST.

sub90942-A1009

main90942-01033iQEA38201204

TYPE B:REFER ILLUST.

42603ORNAMENT SUB-ASSY, WHEEL HUB

main4260B-0R020iQEA38201204

*ALU,TYPE A:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-06011iQEA38201204

sub42607-06012

42611UCAP, TIRE VALVE

main90942-A5002iQEA38201204

6 parts on this diagram · 1 diagram in section
