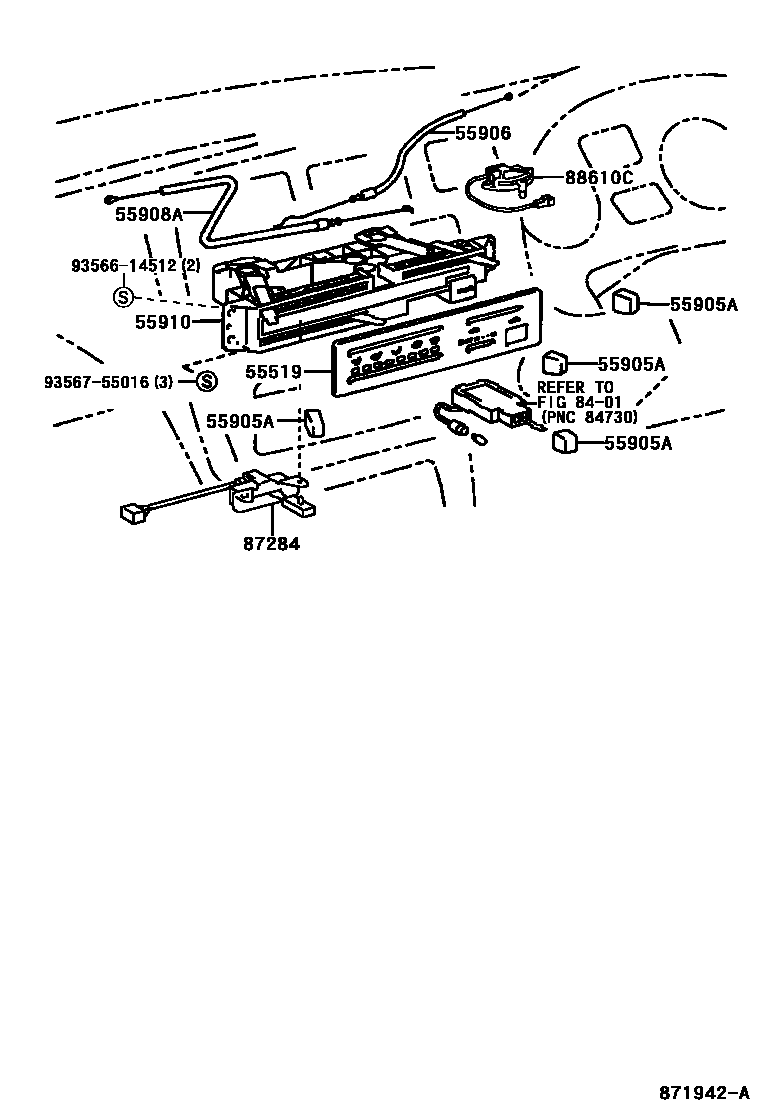

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL 0002 1AIR DUCT 0003 1SENSOR

55519PLATE, HEATER CONTROL NAME

main55519-42050iBEA11199709-199911

55905AKNOB, HEATER CONTROL

main55905-89115iBEA11199709-199911

55906CABLE SUB-ASSY, HEATER CONTROL

main55906-42020iBEA11199709-199911

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-42020iBEA11199709-199911

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55900-42080iBEA11199709-199911

8401

87284RESISTOR SUB-ASSY, VARIABLE

main88032-42020iBEA11199709-199911

88610CSWITCH ASSY, COOLER CONTROL

main88610-42010iBEA11199709-199911

9356614512

main93566-14512

9356755016

main93567-55016

10 parts on this diagram · 3 diagrams in section
