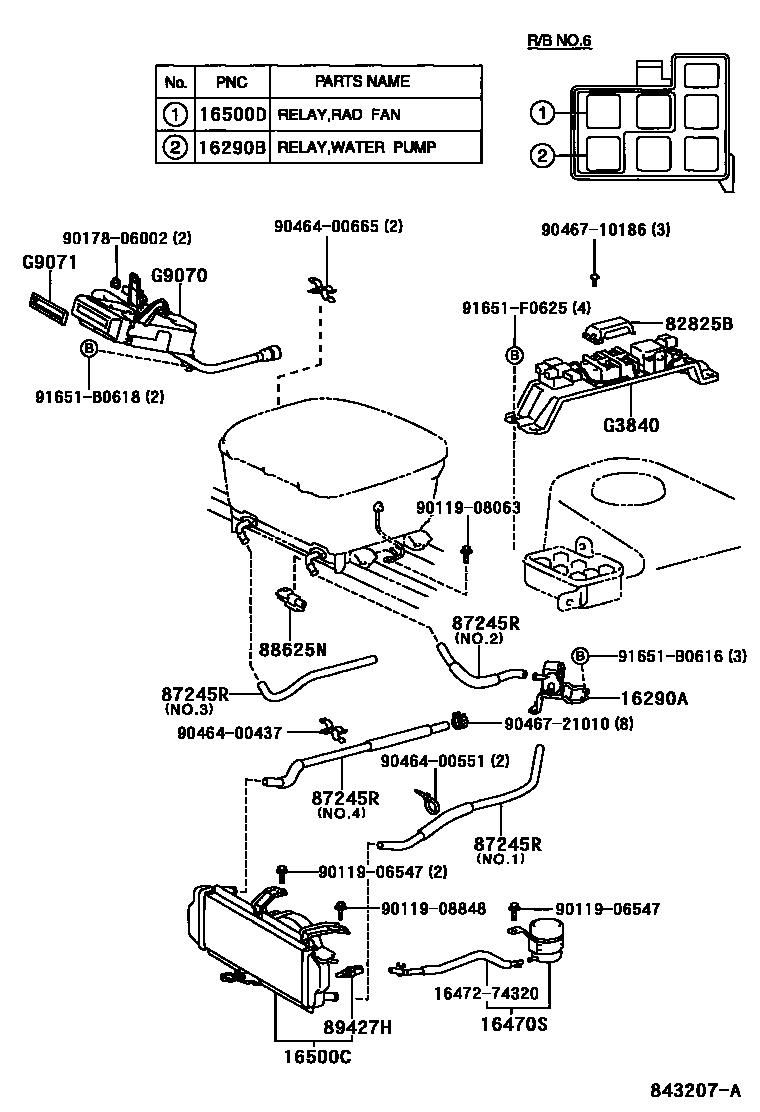

INVERTER COOLING

0001 1RADIATOR 0002 1CONTROLLER 0003 1CONTROLLER 0004 1CONTROLLER 0005 1EV CHARGER

16290APUMP ASSY, WATER W/MOTOR & BRACKET

mainG902042010iEM..BEA11199709-199712

subG9020-42020

mainG902042020iEM..BEA11199712-200209

mainG902042040iEM..BEA11200209

subG9020-42041

16290BRELAY(FOR WATER PUMP)

main90987-02009iEM..BEA11199709

16470SRESERVE TANK ASSY, RADIATOR

main16470-74320iEM..BEA11199709

16500CRADIATOR ASSY, SUB W/FAN

mainG901042010iEM..BEA11199709

16500DRELAY(FOR RADIATOR FAN)

main90987-04003iEM..BEA11199709

82825BCOVER, RELAY

main82825-42011iBEA11199709

87245RHOSE, WATER

main87245-42150iBEA11199709

NO.1

main87245-42160iBEA11199709

NO.2

main87245-42170iBEA11199709

NO.3

main87245-42180iBEA11199709

NO.4

88625NTHERMISTOR

main88625-32170iBEA11199709-200109

sub88625-32171

main88625-32171iBEA11200109

89427HSWITCH, TEMPERATURE (FOR RADIATOR FAN)

main89427-42010iBEA11199709

G3840RELAY ASSY, ELECTRIC VEHICLE

mainG384042030iBEA11199709

G9070PORT ASSY, EV CHARGER

mainG907042010iBEA11..IN199812-199911

mainG907042020iBEA11199911

G9071SEAL, EV CHARGER

mainG907142010iBEA11..IN199812-199911

mainG907142020iBEA11199911

1647274320HOSE, BREATHER

main16472-74320

9011906547

main90119-06547

9011908063

main90119-08063

9011908848

main90119-08848

9017806002

main90178-06002

9046400437

main90464-00437

9046400551

main90464-00551

9046400665

main90464-00665

9046710186

main90467-10186

9046721010

main90467-21010

91651B0616

main91651-B0616

91651B0618

main91651-B0618

91651F0625

main91651-F0625

25 parts on this diagram · 5 diagrams in section
