INSIDE TRIM BOARD

0001 1 0002 1

62103BPLUG(FOR COWL SIDE TRIM BOARD)

main90950-01267-B1iBEA11199709

SHADOW GRAY,TRIM1#

sub90950-01267

62111BCLIP(FOR COWL SIDE TRIM)

main90467-06147iBEA11199709-199911

62111CBOARD, COWL SIDE TRIM, RH

main62111-42021-B1iBEA11199709

SHADOW GRAY,TRIM1#

sub62111-42021

62112BOARD, COWL SIDE TRIM, LH

main62112-42021-B1iBEA11199709

SHADOW GRAY,TRIM1#

sub62112-42021

62211GARNISH, FRONT PILLAR, RH

main62211-42020-B1iBEA11199709-200209

SHADOW GRAY,TRIM1#

main62211-42040-B1iBEA11200209

LT.GRAY,TRIM1#

62212GARNISH, FRONT PILLAR, LH

main62212-42020-B1iBEA11199709-200209

SHADOW GRAY,TRIM1#

main62212-42040-B1iBEA11200209

LT.GRAY,TRIM1#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-42010-B0iBEA11199709-199911

SHADOW GRAY,TRIM1#

main62311-42011-B0iBEA11199911-200209

SHADOW GRAY,TRIM1#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-42010-B0iBEA11199709-199911

SHADOW GRAY,TRIM1#

main62312-42011-B0iBEA11199911-200209

SHADOW GRAY,TRIM1#

62333ATRIM, REAR DOOR OPENING, RH

main62333-42010-B1iBEA11199709-199910

SHADOW GRAY,TRIM1#

main62333-42020-B0iBEA11199910-200209

SHADOW GRAY,TRIM1#

62334ATRIM, REAR DOOR OPENING, LH

main62334-42010-B1iBEA11199709-199910

SHADOW GRAY,TRIM1#

main62334-42020-B0iBEA11199910-200209

SHADOW GRAY,TRIM1#

62411GARNISH, CENTER PILLAR, RH

main62410-42010-B1iBEA11200209

LT.GRAY,TRIM1#

main62411-42020-B0iBEA11199709-200209

SHADOW GRAY,TRIM1#

62412GARNISH, CENTER PILLAR, LH

main62412-42020-B0iBEA11199709-200209

SHADOW GRAY,TRIM1#

main62420-42010-B1iBEA11200209

LT.GRAY,TRIM1#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-42010-B1iBEA11199709

SHADOW GRAY,TRIM1#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-42010-B1iBEA11199709

SHADOW GRAY,TRIM1#

62461HCLIP (FOR ROOF SIDE INNER GARNISH)

main90467-08179iBEA11199709-199911

62471AGARNISH, ROOF SIDE, INNER RH

main62470-42040-B0iBEA11199709-200209

SHADOW GRAY,TRIM1#

main62470-42070-B1iBEA11200209

SHADOW GRAY,TRIM1#

62471JCLIP (FOR ROOF SIDE GARNISH)

main62217-42010iBEA11199805-200209

main90468-05077iBEA11199709-199805

62472AGARNISH, ROOF SIDE, INNER LH

main62480-42040-B0iBEA11199709-200209

SHADOW GRAY,TRIM1#

main62480-42070-B1iBEA11200209

SHADOW GRAY,TRIM1#

62510GTRIM ASSY, SIDE NO.1, RH

main62510-42020-B1iBEA11199709

BLUISH GRAY,TRIM1#

sub62510-42020

62520GTRIM ASSY, SIDE NO.1, LH

main62520-42020-B1iBEA11199709

BLUISH GRAY,TRIM1#

sub62520-42020

62538CCOVER, QUARTER TRIM, HOLE

main62538-42010-B1iBEA11199709

SHADOW GRAY,TRIM1#

sub62538-42010

62567ACLIP(FOR QUARTER TRIM REAR LOWER COVER)

main90467-07076-P0iBEA11199709

SHADOW GRAY,TRIM1#

sub90467-07041

sub90467-07076

sub90467-A0016

63229BBRACKET, ROOF HEADLINING, REAR

main63229-42010iBEA11199709-199911

63429CBAND, ROOM RACK

main63429-42050iBEA11199709

64707CKNOB, JACK COVER

main64769-90K00-B2iBEA11199709

SHADOW GRAY,TRIM1#

sub64769-90K00

64707GSTOPPER, JACK COVER

main64768-60010iBEA11199709

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-42030-B0iBEA11199709

SHADOW GRAY,TRIM1#

64735COVER, DECK TRIM SIDE SERVICE HOLE

main64735-42010-B0iBEA11199709

SHADOW GRAY,TRIM1#

sub64735-42010

64740APANEL ASSY, DECK TRIM SIDE, LH

main64740-42030-B0iBEA11199709

SHADOW GRAY,TRIM1#

64769CASE SUB-ASSY, TOOL BAG

main64769-42030-B0iBEA11199709

SHADOW GRAY,TRIM1#

64769ACOVER ASSY, SIDE TRIM TOOL BAG

main64760-42010-B1iBEA11199709

SHADOW GRAY,TRIM1#

sub64760-42010

64771BCOVER, SPARE WHEEL

main64771-42050iBEA11199709-199711

75577CBRACKET, ROOF SIDE GARNISH

main75577-42010iBEA11199709-199911

6221742010COVER, RAIL ROOF SIDE, INNER CENTER

main62217-42010

9018905076

main90189-05076

9046706070P0

main90467-06070P0

9046708179

main90467-08179

9046804177

main90468-04177

9046805123

main90468-05123

9356055014

main93560-55014

9356615512

main93566-15512

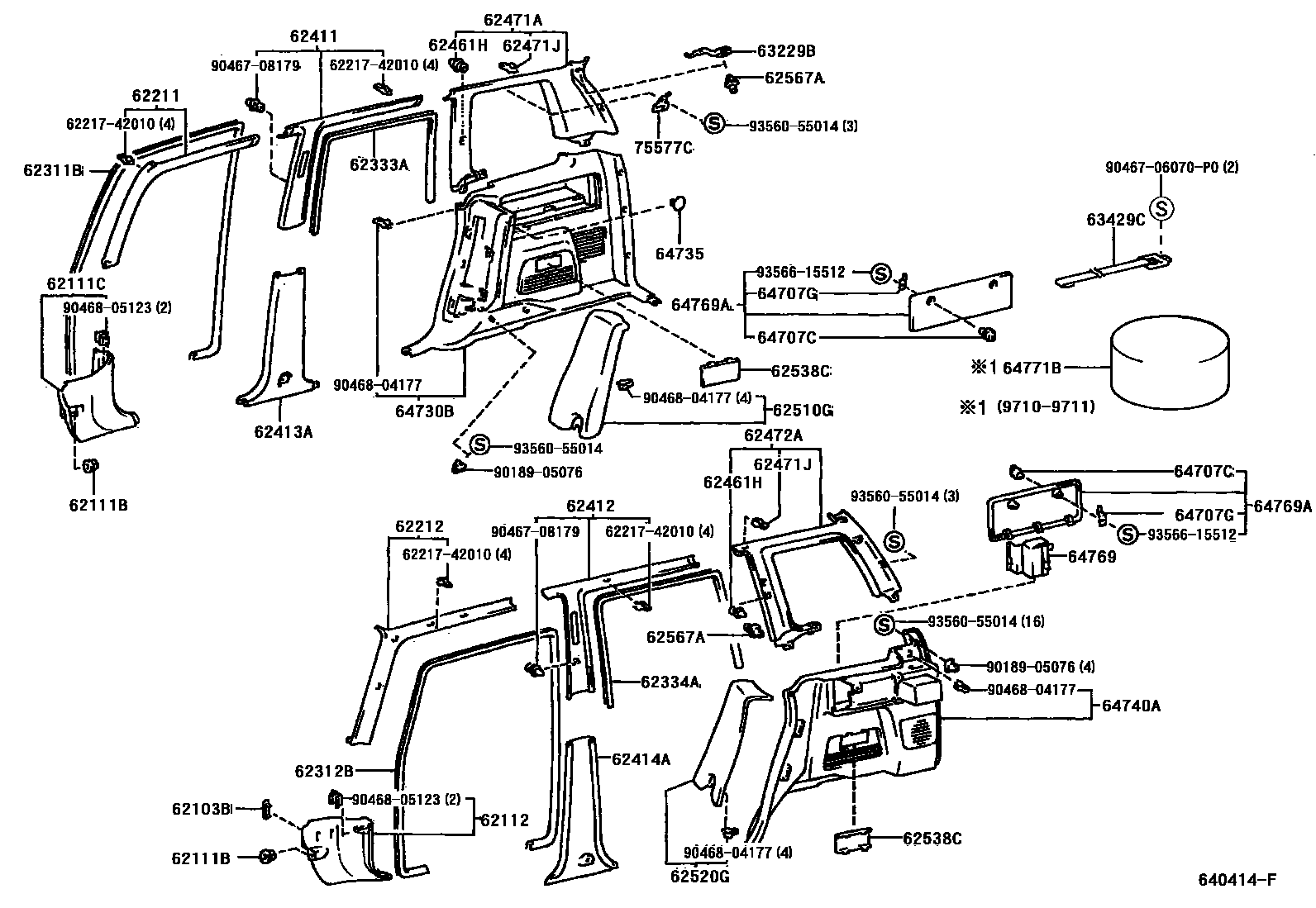

41 parts on this diagram · 2 diagrams in section
