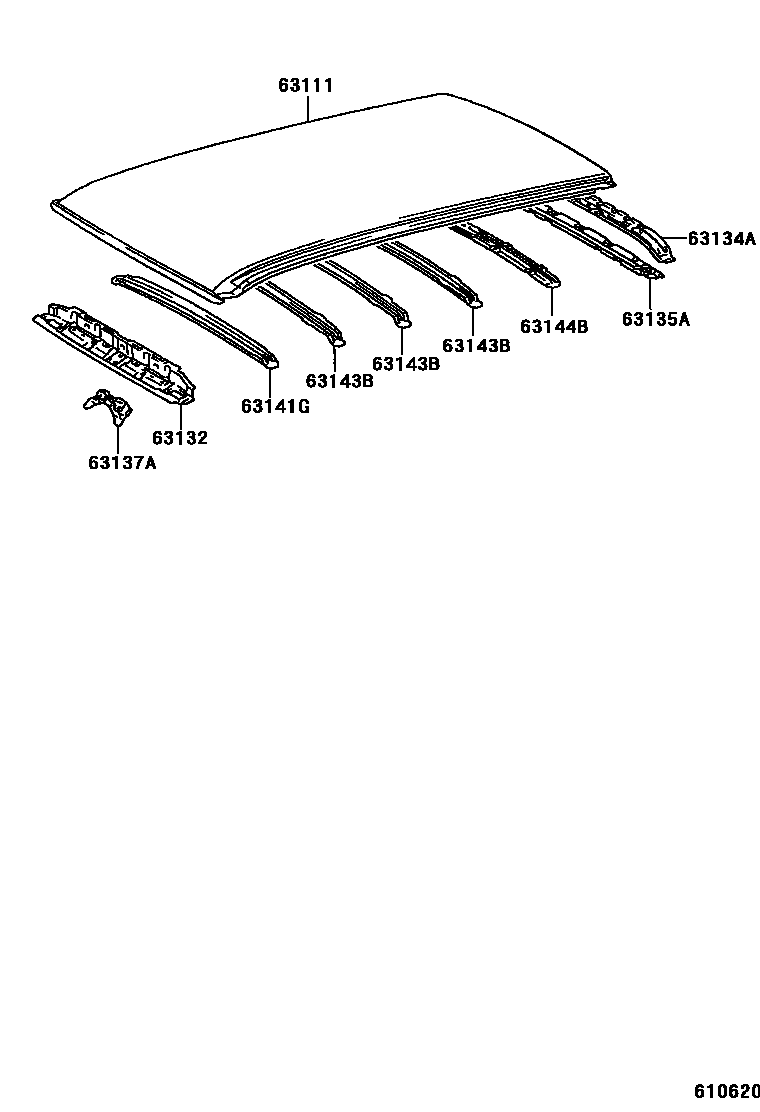

ROOF PANEL & BACK PANEL

63111PANEL, ROOF

main63111-42030iBEA11199709-199911

63132PANEL, WINDSHIELD HEADER, INNER

main63132-42020iBEA11199709-199911

63134AFRAME, BACK DOOR OPENING, UPPER

main63134-42010iBEA11199709-199911

63135AFRAME, BACK DOOR OPENING, LOWER

main63135-42011iBEA11199709-199911

63137ABRACKET, DOME LAMP, NO.1

main63137-42010iBEA11199709-199911

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-42020iBEA11199709-199911

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-42020iBEA11199709-199911

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-42010iBEA11199709-199911

8 parts on this diagram · 1 diagram in section
