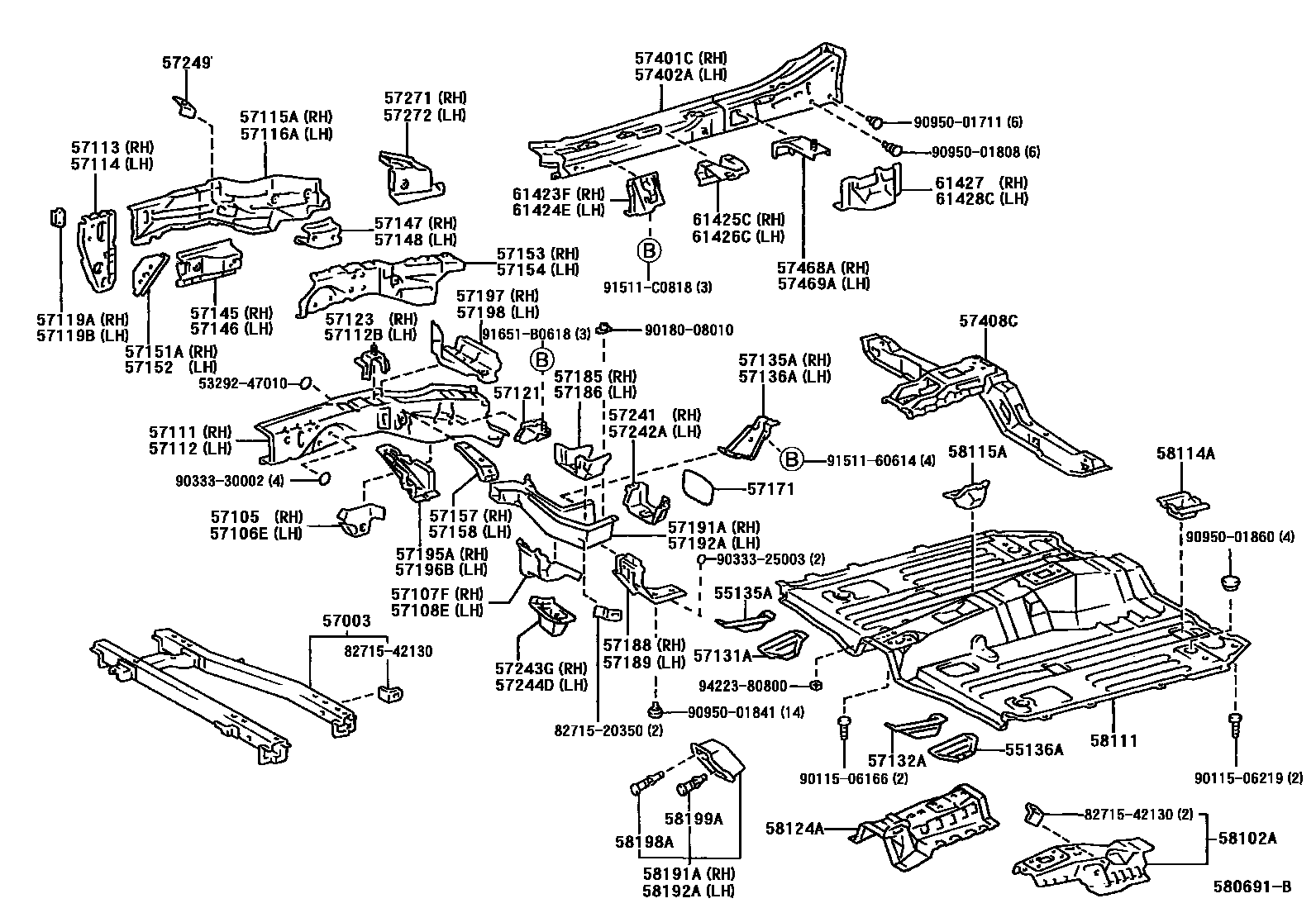

FRONT FLOOR PANEL & FRONT FLOOR MEMBER
55135ABRACKET, TOE BOARD, RH
55136ABRACKET, TOE BOARD, LH
57003MEMBER SUB-ASSY, FRONT SIDE, RH
57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH
57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH
57107FBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH
57108EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH
57111MEMBER, FRONT SIDE, RH
57112MEMBER, FRONT SIDE, LH
57112BBRACKET SUB-ASSY, STRUT BAR, LH
57113EXTENSION, FRONT SIDE MEMBER, RH
57114EXTENSION, FRONT SIDE MEMBER, LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57119APLATE, FRONT SIDE MEMBER, FRONT RH
57119BPLATE, FRONT SIDE MEMBER, FRONT LH
57121BRACKET, FRONT BODY MOUNTING, RH
57123SUPPORT, FRONT SIDE MEMBER, RH
57131AMEMBER, FRONT SIDE, REAR RH
57132AMEMBER, FRONT SIDE, REAR LH
57135ABRACKET, FRONT FLOOR SIDE, RH
57136ABRACKET, FRONT FLOOR SIDE, LH
57145PLATE, FRONT SIDE MEMBER, CENTER RH
57146PLATE, FRONT SIDE MEMBER, CENTER LH
57147PLATE, FRONT SIDE MEMBER, REAR RH
57148PLATE, FRONT SIDE MEMBER, REAR LH
57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH
57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH
57153REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH
57154REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH
57157REINFORCEMENT, FRONT SIDE MEMBER, NO.4 RH
57158REINFORCEMENT, FRONT SIDE MEMBER, NO.4 LH
57171BRACKET, CROSSMEMBER FLOOR, NO.1
57185REINFORSEMENT, FRONT SIDE MEMBER, REAR NO.1 INNER RH
57186REINFORCEMENT, FRONT SIDE MEMBER, REAR NO.1 INNER LH
57188REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH
57189REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH
57191AMEMBER, FRONT SIDE, INNER REAR RH
57192AMEMBER, FRONT SIDE, INNER REAR LH
57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH
57196BREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH
57197BOX, TORQUE, FRONT RH
57198BOX, TORQUE, FRONT LH
57241REINFORCEMENT, FRONT SIDE MEMBER, NO.5 RH
57242AREINFORCEMENT, FRONT SIDE MEMBER, NO.5 LH
57243GREINFORCEMENT, FRONT SIDE MEMBER, NO.6 RH
57244DREINFORCEMENT, FRONT SIDE MEMBER, NO.6 LH
57249BRACKET, FLEXIBLE HOSE, NO.1
57271EXTENSION, STEERING GEAR BOX SUPPORT MEMBER, RH
57272EXTENSION, STEERING GEAR BOX SUPORT MEMBER, LH
57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57402AMEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57408CMEMBER SUB-ASSY, FRONT FLOOR CROSS
57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH
57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH
58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR
58111PAN, FRONT FLOOR
58114AREINFORCEMENT, FRONT FLOOR PANEL
58115AREINFORCEMENT, FRONT FLOOR PANEL
58124AREINFORCEMENT, COWL MOUNTING, FRONT
58191AFOOTREST, FRONT FLOOR, RH
58192AFOOTREST, FRONT FLOOR, LH
58198ACLIP, FOOTREST, NO.1
58199ACLIP, FOOTREST, NO.2
61423FREINFORCEMENT, ROCKER PANEL, NO.3 RH
61424EREINFORCEMENT, ROCKER PANEL, NO.3 LH
61425CREINFORCEMENT, ROCKER PANEL, NO.4 RH
61426CREINFORCEMENT, ROCKER PANEL, NO.4 LH
61427REINFORCEMENT, ROCKER PANEL, NO.5 RH
61428CREINFORCEMENT, ROCKER PANEL, NO.5 LH
5329247010SEAL, RADIATOR SUPPORT TO FRAME, LH
8271520350BRACKET,WIRING HARNESS CLAMP
8271542130BRACKET,WIRING HARNESS CLAMP
9011506166
9011506219
9018008010
9033325003
9033330002
9095001711
9095001808
9095001841
9095001860
9151160614
91511C0818
91651B0618
9422380800
86 parts on this diagram · 1 diagram in section
