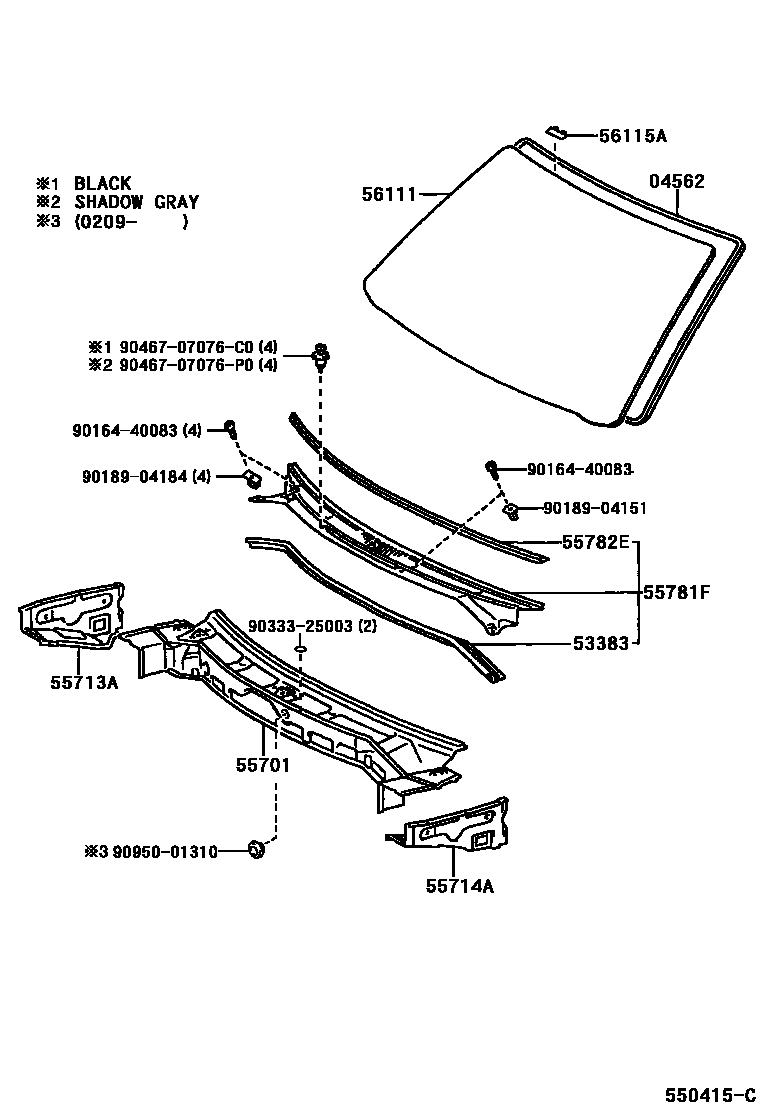

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iBEA11199709-199911

53383SEAL, HOOD TO COWL TOP

main53383-42010iBEA11199709-199911

55701PANEL SUB-ASSY, COWL

main55700-42230iBEA11199709-199911

55713APANEL, COWL TOP SIDE, RH

main55713-42011iBEA11..IN199812

main55713-42030iBEA11..CON199709-199911

55714APANEL, COWL TOP SIDE, LH

main55714-42011iBEA11199709-199911

55781FLOUVER, COWL TOP VENTILATOR

main55708-42040iBEA11199709-199911

55782EPROTECTOR, COWL TOP VENTILATOR LOUVER

main55782-42020iBEA11199709-199911

sub55782-42010

56111GLASS, WINDSHIELD

main56111-42090iBEA11199709-200209

*TL,T=4.76,GREEN

main56111-42130iBEA11200209

*TL,T=4.56,GREEN

main56111-42150iBEA11200209

*EHTL,T=4.56,GREEN,W(WIPER DEICER)

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-20080iBEA11199709-199911

9016440083

main90164-40083

9018904151

main90189-04151

9018904184

main90189-04184

9033325003

main90333-25003

9046707076C0

main90467-07076C0

9046707076P0

main90467-07076P0

9095001310

main90950-01310

16 parts on this diagram · 1 diagram in section
