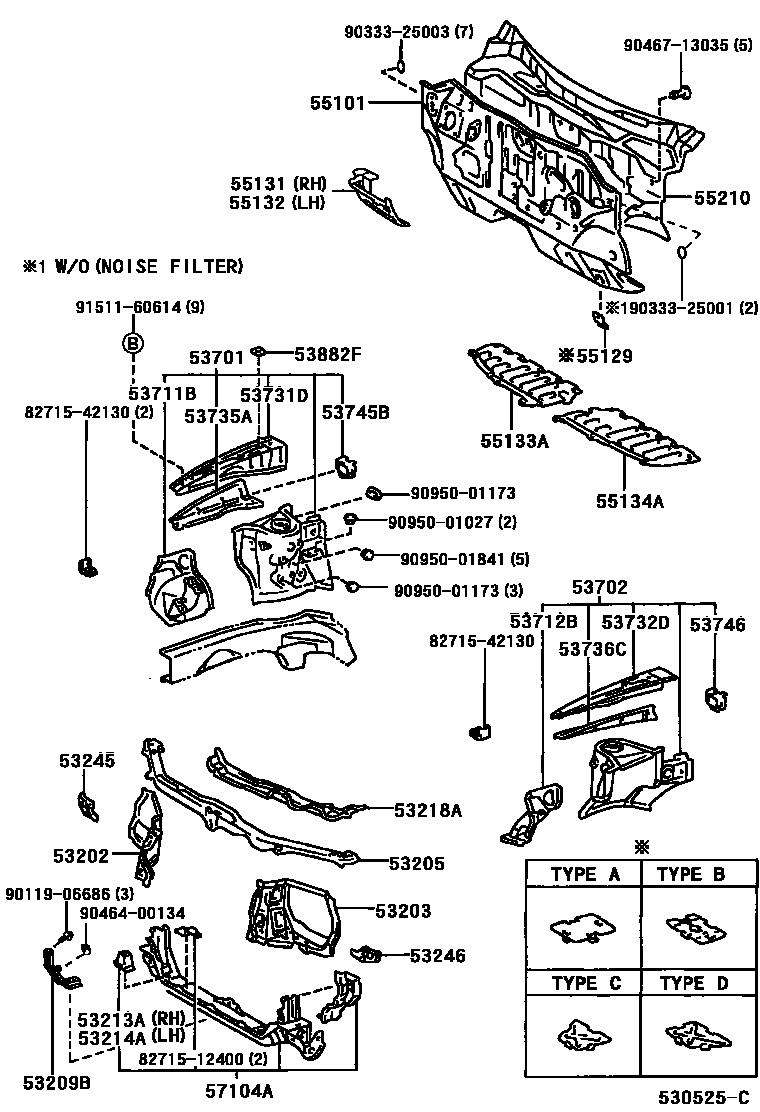

FRONT FENDER APRON & DASH PANEL
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT
53213ASUPPORT, RADIATOR, UPPER RH
53214ASUPPORT, RADIATOR, UPPER LH
53218ASUPPORT, RADIATOR, LOWER
53245BRACKET, HEADLAMP, RH
53246BRACKET, HEADLAMP, LH
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53735AMEMBER, FRONT APRON TO COWL SIDE, LOWER RH
53736CMEMBER, FRONT APRON TO COWL SIDE, LOWER LH
53745BREINFORCEMENT, FRONT FENDER APRON, REAR RH
53746REINFORCEMENT, FRONT FENDER APRON, REAR LH
53882FSEAL, FRONT FENDER
55129COVER, DASH PANEL HOLE
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
TYPE C:REFER TO ILLUSTRATION
TYPE D:REFER TO ILLUSTRATION
55131REINFORCEMENT, DASH PANEL
55132REINFORCEMENT, DASH PANEL, NO.2
55133AREINFORCEMENT, DASH TO FLOOR, RH
55134AREINFORCEMENT, DASH TO FLOOR, LH
55210INSULATOR ASSY, DASH PANEL
57104AMEMBER SUB-ASSY, FRONT CROSS
8271512400BRACKET,WIRING HARNESS CLAMP
main82715-12400
8271542130BRACKET,WIRING HARNESS CLAMP
main82715-42130
9011906686
main90119-06686
9033325001
main90333-25001
9033325003
main90333-25003
9046400134
main90464-00134
9046713035
main90467-13035
9095001027
main90950-01027
9095001173
main90950-01173
9095001841
main90950-01841
9151160614
main91511-60614
39 parts on this diagram · 1 diagram in section
