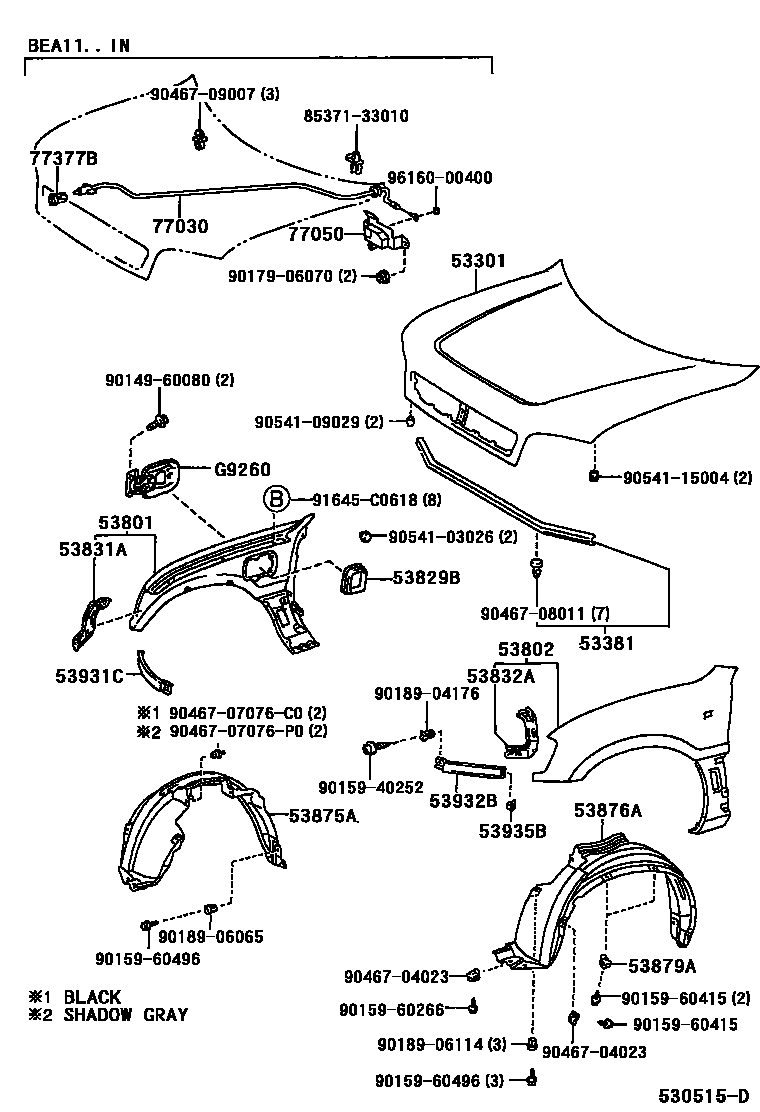

HOOD & FRONT FENDER
53381SEAL, HOOD TO RADIATOR SUPPORT
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53829BPROTECTOR, FRONT FENDER, LOWER RH
53831APANEL, FRONT FENDER SIDE, UPPER RH
53832APANEL, FRONT FENDER SIDE, UPPER LH
53879ARETAINER, FRONT FENDER LINER
53931CPANEL, FRONT END
53932BPANEL, FRONT END, LH
53935BPROTECTOR, FRONT END PANEL
77030CABLE SUB-ASSY, ELECTRIC VEHICLE CHARGER LID LOCK CONTROL
77050CONTROL OPENER ASSY, ELECTRIC VEHICLE CHARGER LID LOCK
77377BRETAINER, ELECTRIC VEHICLE CHARGER LID LOCK
G9260LID ASSY, EV CHARGER
8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-33010
9014960080
main90149-60080
9015940252
main90159-40252
9015960266
main90159-60266
9015960415
main90159-60415
9015960496
main90159-60496
9017906070
main90179-06070
9018904176
main90189-04176
9018906065
main90189-06065
9018906114
main90189-06114
9046704023
main90467-04023
9046707076C0
main90467-07076C0
9046707076P0
main90467-07076P0
9046708011
main90467-08011
9046709007
main90467-09007
9054103026
main90541-03026
9054109029
main90541-09029
9054115004
main90541-15004
91645C0618
main91645-C0618
9616000400
main96160-00400
37 parts on this diagram · 1 diagram in section
