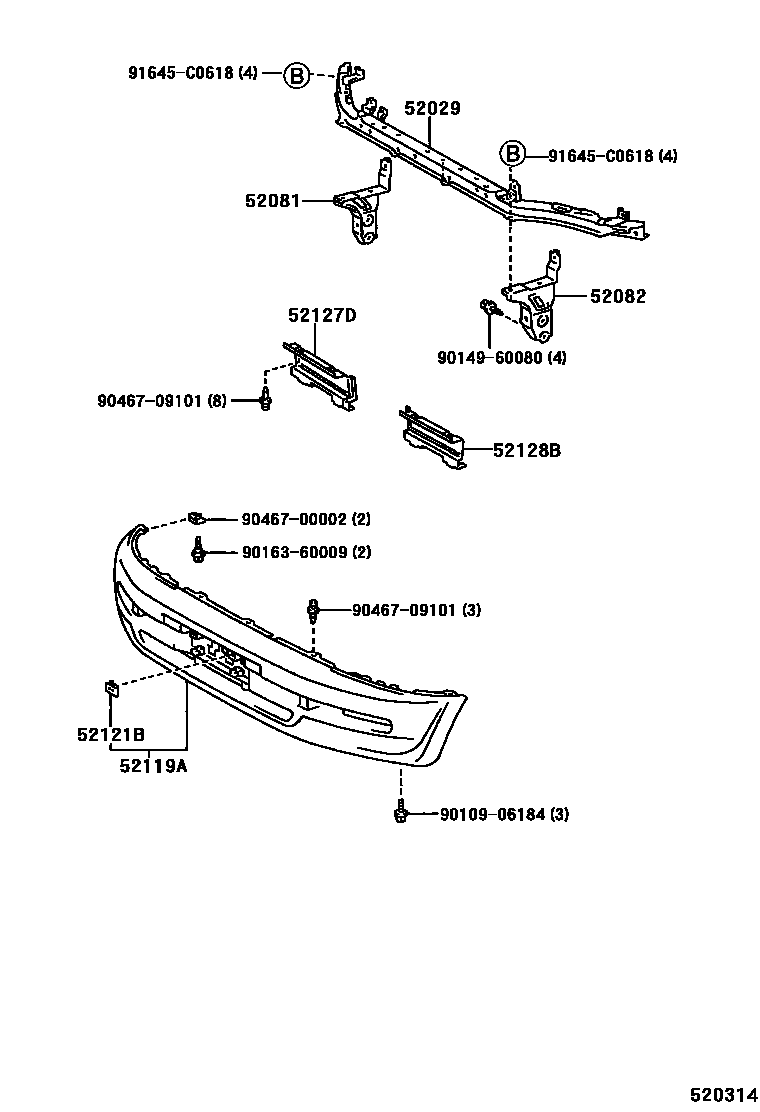

FRONT BUMPER & BUMPER STAY

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-42050iBEA11199709-199911

52081STAY SUB-ASSY, FRONT BUMPER

main52145-42010iBEA11199709-199911

52082STAY SUB-ASSY, FRONT BUMPER, LH

main52146-42010iBEA11199709-199911

52119ACOVER, FRONT BUMPER

main52119-42902iBEA11199709

sub52119-42993

52121BBRACKET, FRONT LICENCE PLATE MOUNTING

main52121-42010iBEA11199709-199911

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-42020iBEA11199709-199911

52128BCOVER, FRONT BUMPER HOLE, LH

main52128-42020iBEA11199709-199911

9010906184

main90109-06184

9014960080

main90149-60080

9016360009

main90163-60009

9046700002

main90467-00002

9046709101

main90467-09101

91645C0618

main91645-C0618

13 parts on this diagram · 1 diagram in section
