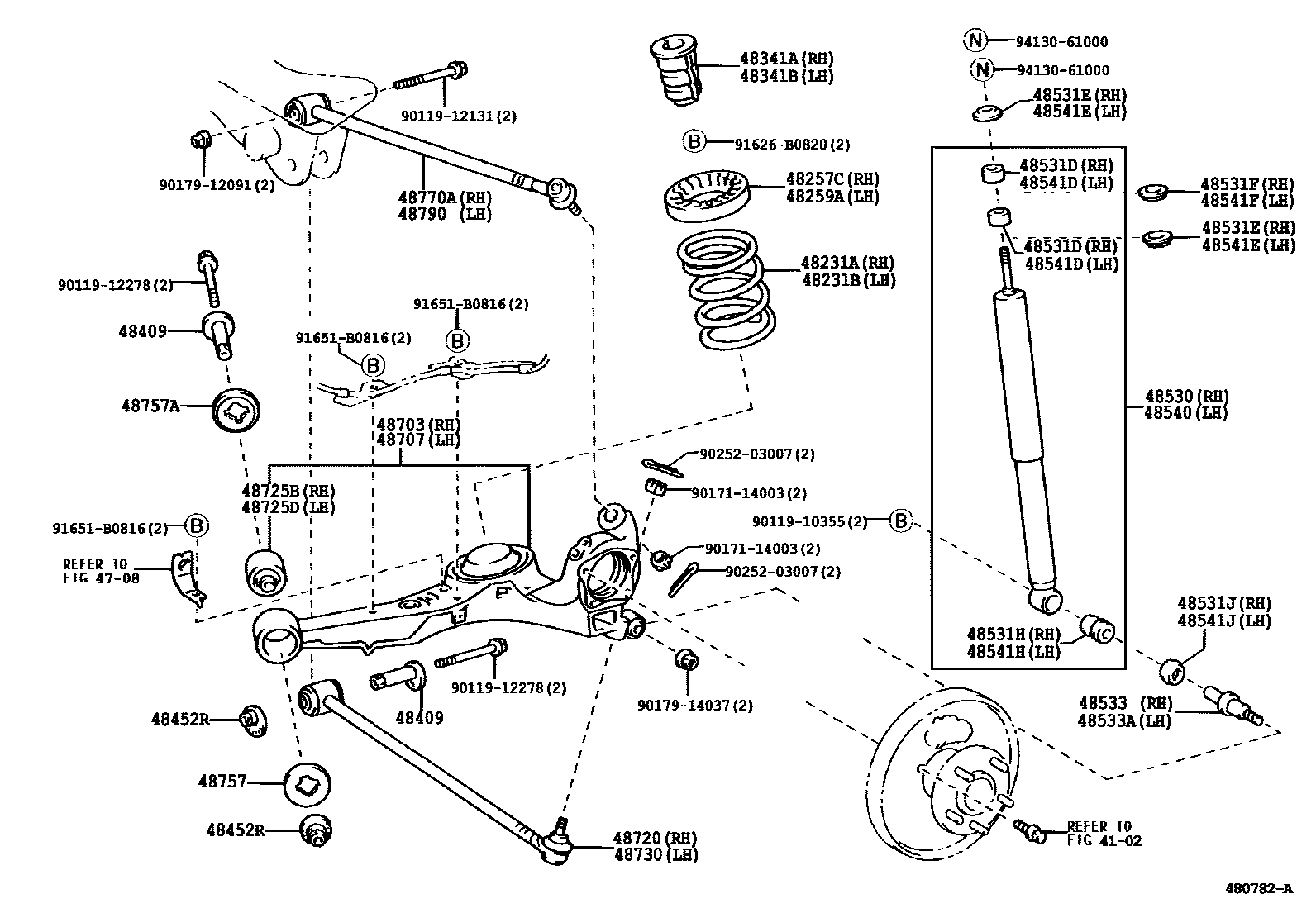

REAR SPRING & SHOCK ABSORBER
4102
4708
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48341ABUMPER, REAR SPRING, NO.1 RH
sub48306-42040
48341BBUMPER, REAR SPRING, NO.1 LH
sub48306-42040
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2
48530ABSORBER ASSY, SHOCK, REAR RH
48531DCUSHION, REAR SHOCK ABSORBER, NO.2 RH
NO.1
NO.2
48531ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH)
48531FRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER RH)
48531HBUSH(FOR REAR SHOCK ABSORBER RH)
48531JWASHER, REAR SHOCK ABSORBER CUSHION, NO.1 RH
48533PIN, REAR SHOCK ABSORBER LOWER PIVOT, RH
48533APIN, REAR SHOCK ABSORBER LOWER PIVOT, LH
48540ABSORBER ASSY, SHOCK, REAR LH
48541DCUSHION, REAR SHOCK ABSORBER, NO.2 LH
NO.1
NO.2
48541ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH)
48541FRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER LH)
48541HBUSH(FOR REAR SHOCK ABSORBER LH)
48541JWASHER, REAR SHOCK ABSORBER CUSHION, NO.1 LH
48703ARM SUB-ASSY, REAR SUSPENSION, RH
48707ARM SUB-ASSY, REAR SUSPENSION, LH
48720ARM ASSY, LOWER CONTROL, RH
48725BBUSH, REAR SUSPENSION ARM, NO.1
48725DBUSH, REAR SUSPENSION ARM, NO.3
48730ARM ASSY, LOWER CONTROL, LH
48757ATTACHMENT, REAR SUSPENSION ARM
48757AATTACHMENT, REAR SUSPENSION ARM, NO.2
48770AARM ASSY, UPPER CONTROL, REAR RH
48790ARM ASSY, UPPER CONTROL, REAR LH
9011910355
main90119-10355
9011912131
main90119-12131
9011912278
main90119-12278
9017114003
main90171-14003
9017912091
main90179-12091
9017914037
main90179-14037
9025203007
main90252-03007
91626B0820
main91626-B0820
91651B0816
main91651-B0816
9413061000
main94130-61000
44 parts on this diagram · 1 diagram in section
