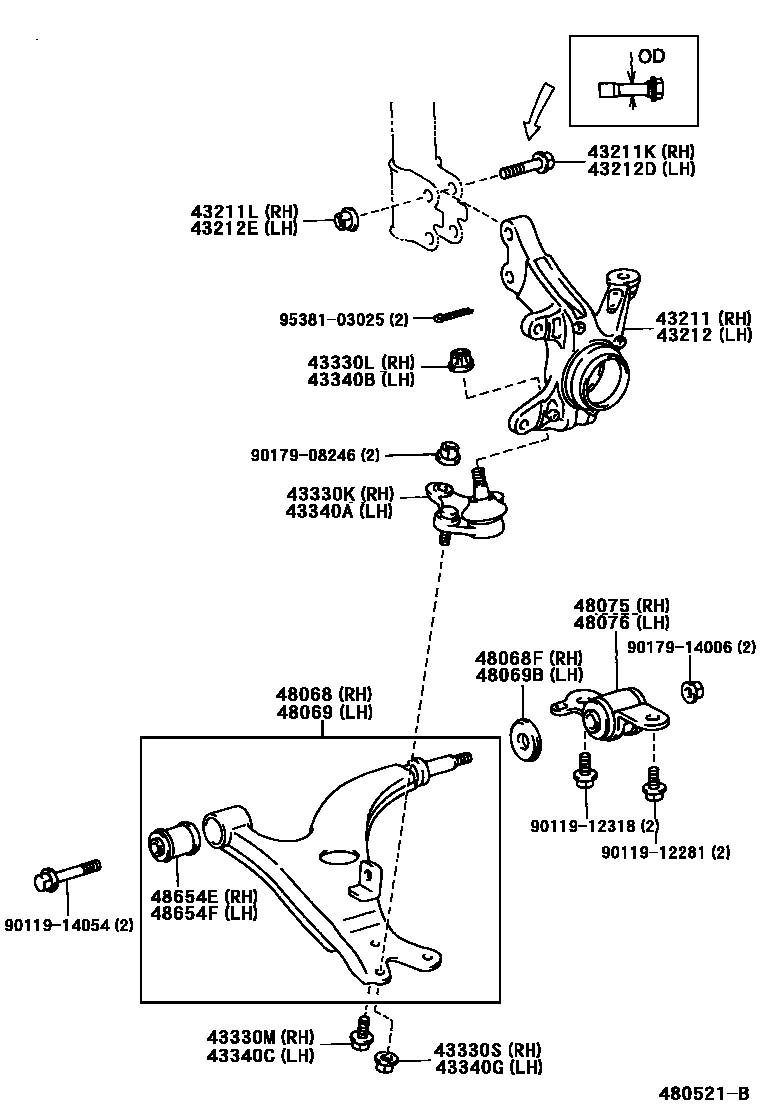

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-42050iBEA11199709-199911

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-15001iBEA11199709-199911

OD=15.0

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-15006iBEA11199709-199911

43212KNUCKLE, STEERING, LH

main43212-42050iBEA11199709-199911

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-15001iBEA11199709-199911

OD=15.0

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-15006iBEA11199709-199911

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-49025iBEA11199710-199911

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iBEA11199709-199911

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-12122iBEA11199709-199911

43330SNUT (FOR FRONT LOWER BALL JOINT RH)

main90179-12052iBEA11199709-199911

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-49025iBEA11199710-199911

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iBEA11199709-199911

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-12122iBEA11199709-199911

43340GNUT (FOR FRONT LOWER BALL JOINT LH)

main90179-12052iBEA11199709-199911

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-42012iBEA11199709-199911

48068FRETAINER, CUSHION(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90948-02090iBEA11199709-199911

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-42012iBEA11199709-199911

48069BRETAINER, CUSHION(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90948-02090iBEA11199709-199911

48075BRACKET SUB-ASSY, LWR ARM, NO,1

main48075-42040iBEA11199709-199911

48076BRACKET SUB-ASSY, LWR ARM, NO.2

main48076-42040iBEA11199709-199911

48654EBUSH, FRONT LOWER ARM, NO.1 RH

main48654-42020iBEA11199709-199911

48654FBUSH, FRONT LOWER ARM, NO.1 LH

main48654-42020iBEA11199709-199911

9011912281

main90119-12281

9011912318

main90119-12318

9011914054

main90119-14054

9017908246

main90179-08246

9017914006

main90179-14006

9538103025

main95381-03025

28 parts on this diagram · 1 diagram in section
