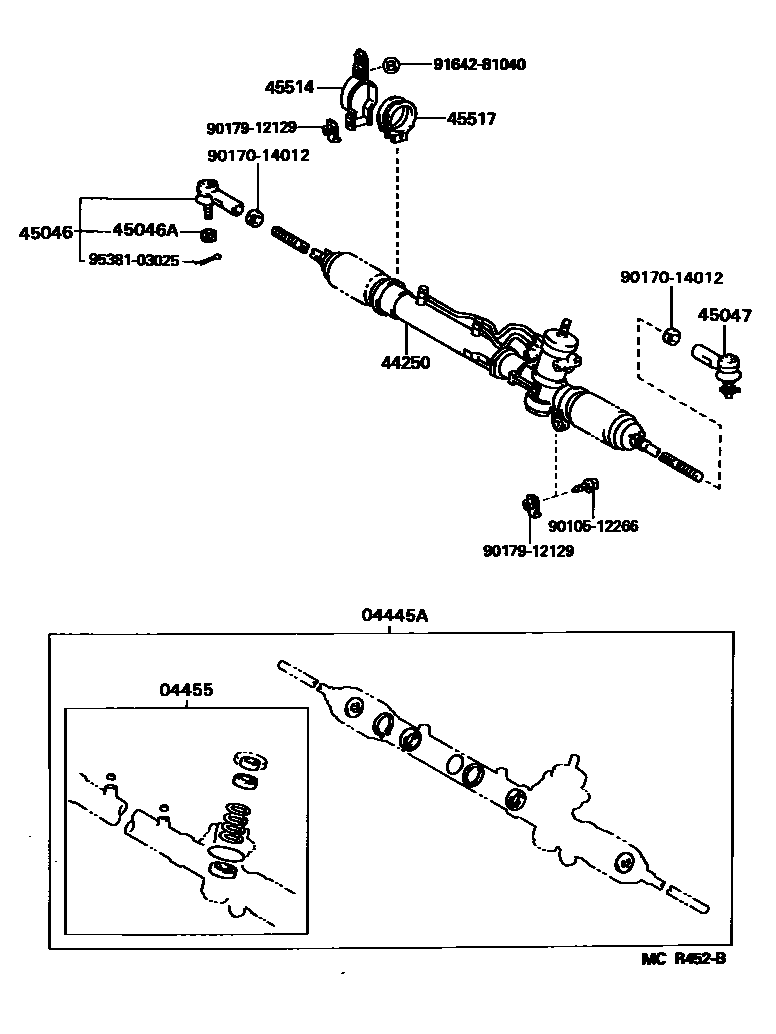

FRONT STEERING GEAR & LINK

0001 1 0002 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-42020iBEA11199709-199911

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-12090iBEA11199709-199911

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-42060iBEA11199709-199911

45046END SUB-ASSY, TIE ROD, RH

main45046-29305iBEA11199709-199911

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iBEA11199709-199911

45047END SUB-ASSY, TIE ROD, LH

main45046-29305iBEA11199709-199911

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-42010iBEA11199709-199911

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-42010iBEA11199709-199911

9010512266

main90105-12266

9017014012

main90170-14012

9017912129

main90179-12129

9164281040

main91642-81040

9538103025

main95381-03025

13 parts on this diagram · 2 diagrams in section
