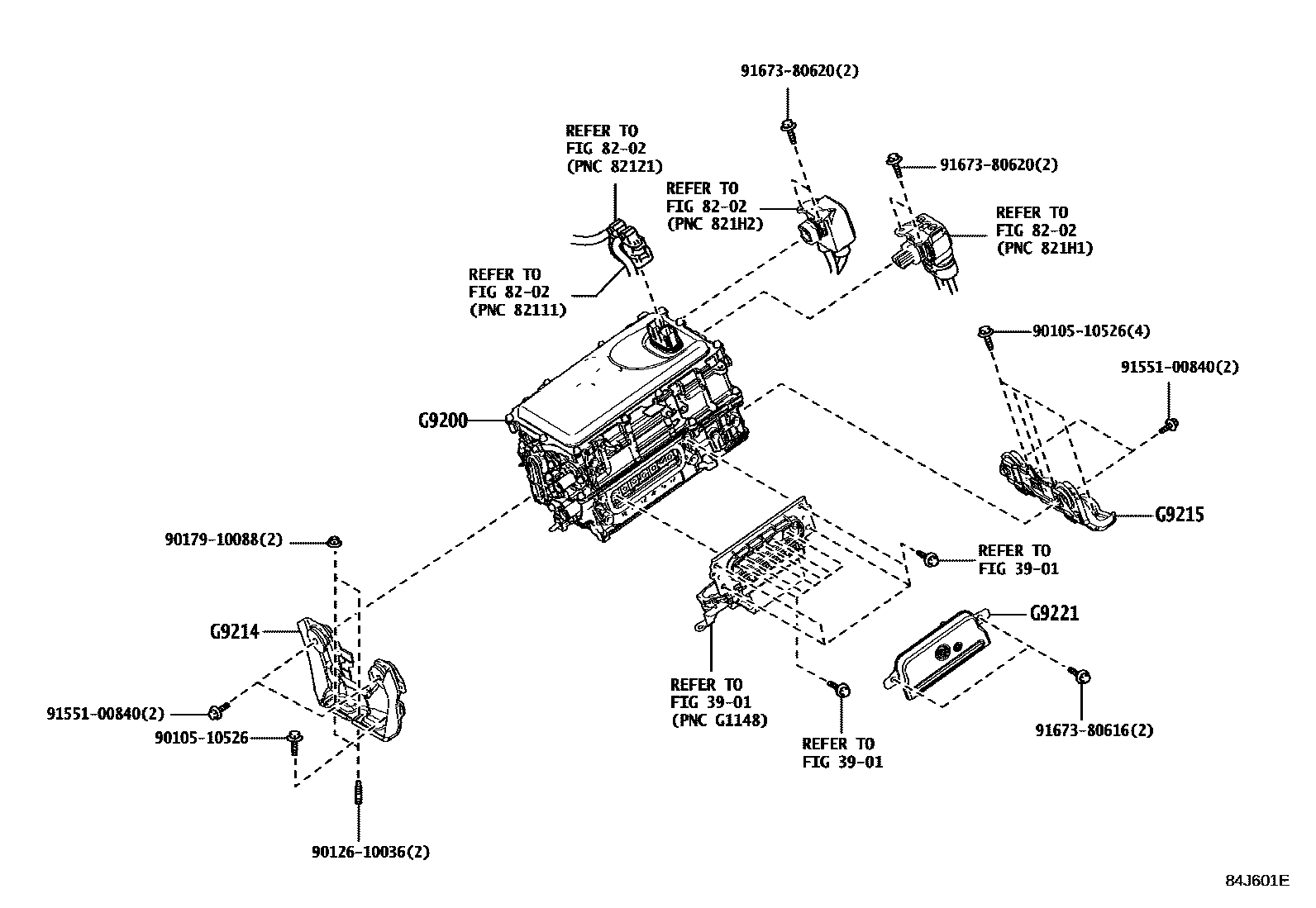

HEV INVERTER

0001 1 0002 1 0003 1HV CONVERTER KIT 0004 1HV CONVERTER KIT

3901

8202

G9200INVERTER ASSY, W/CONVERTER

mainG92A033031iAXAH52201811-202106

subG92A0-33032

mainG92A033032iAXAH52202107-202204

subG92A0-33033

mainG92A033033iAXAH52202205-202310

mainG92A042070iAXAH54,AXAL54201902-202106

subG92A0-42071

mainG92A042071iAXAH54,AXAL54202107-202206

subG92A0-42072

mainG92A042072iAXAH54,AXAL54202207-202310

G9214BRACKET, INVERTER, NO.1

mainG921433040iAXAH5#,AXAL54201811-202310

G9215BRACKET, INVERTER, NO.2

mainG921533040iAXAH52201811-202310

mainG921542010iAXAH54,AXAL54201902-202310

G9221COVER, INVERTER

mainG902247050iAXAH5#,AXAL54201811-202310

9010510526

main90105-10526

9012610036

main90126-10036

9017910088

main90179-10088

9155100840

main91551-00840

9167380616

main91673-80616

9167380620

main91673-80620

12 parts on this diagram · 4 diagrams in section
