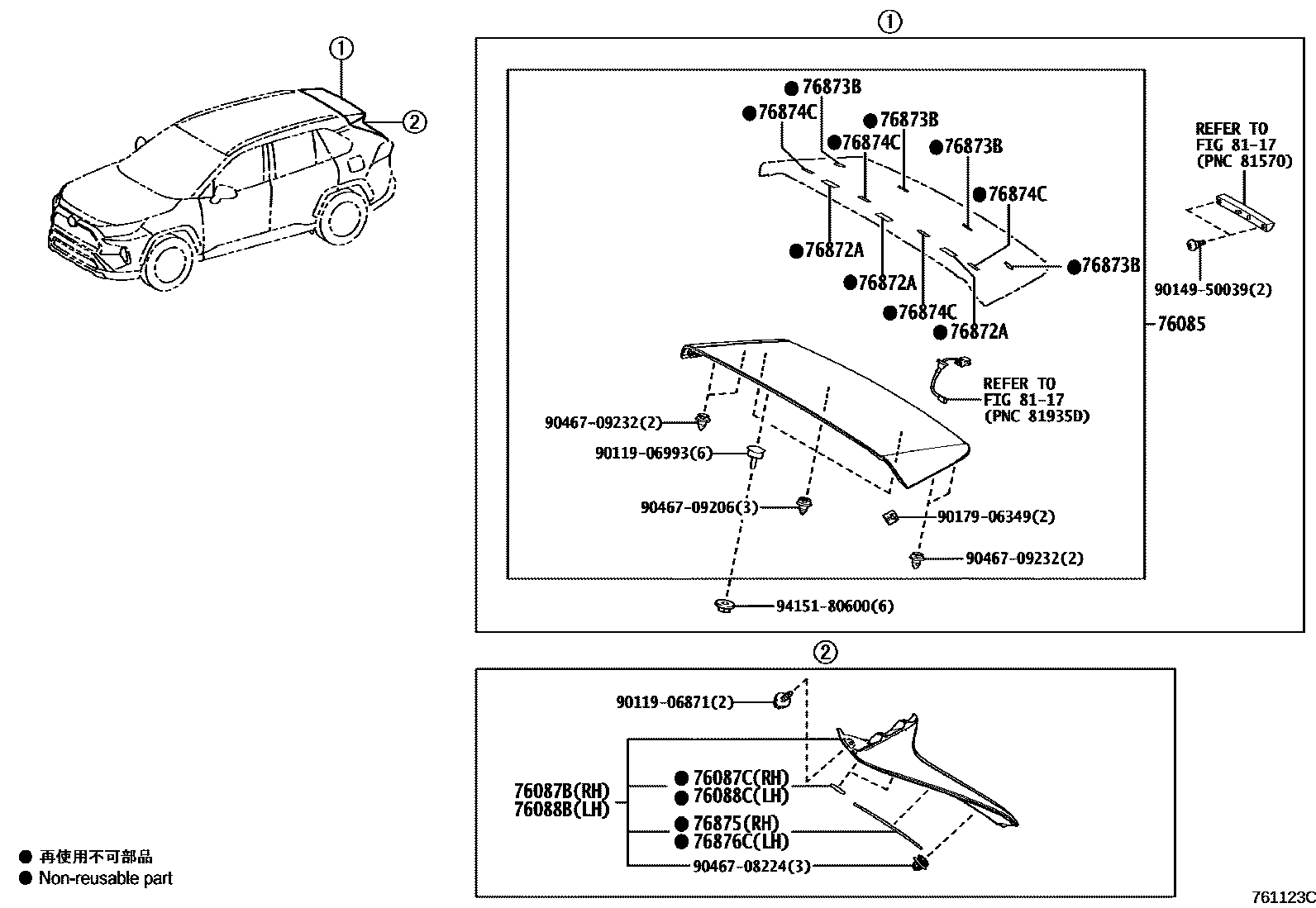

SPOILER & SIDE MUDGUARD

0001 1 0002 1

76085SPOILER SUB-ASSY, REAR

main76085-42908iAXAA5#,AXAH5#,AXAL54202008-202310

PAINT REQ.

main76085-42908iAXAA5#,AXAH5#,AXAL54201811-202007

76087BSPOILER SUB-ASSY, REAR SIDE, RH

main76087-42050iAXAA5#..G;AXAH5#,AXAL54..G,M,P,S201811-202310

main76087-42060iAXAA5#..M,V,X201811-202310

76087CPROTECTOR, REAR SIDE SPOILER

main87268-42010iAXAA5#,AXAH5#,AXAL54201811-202310

76088BSPOILER SUB-ASSY, REAR SIDE, LH

main76088-42050iAXAA5#..G;AXAH5#,AXAL54..G,M201811-202310

main76088-42060iAXAA5#..M,V,X;AXAH54,AXAL54..X201811-202310

76088CPROTECTOR, REAR SIDE SPOILER

main87268-42010iAXAA5#,AXAH5#,AXAL54201811-202310

76872APROTECTOR, REAR SPOILER, NO.1

main76872-42060iAXAA5#,AXAH5#201811-202310

76873BPROTECTOR, REAR SPOILER, NO.2

main76873-42020iAXAA5#,AXAH5#,AXAL54201811-202310

76874CPROTECTOR, REAR SPOILER, NO.3

main76874-42020iAXAA5#,AXAH5#201811-202001

sub76872-42060

76875PROTECTOR, REAR SPOILER, NO.4

main76875-42020iAXAA5#,AXAH5#,AXAL54201811-202310

76876CPROTECTOR, REAR SPOILER, NO.4

main76875-42020iAXAA5#,AXAH5#,AXAL54201811-202310

8117

9011906871

main90119-06871

9011906993

main90119-06993

9014950039

main90149-50039

9017906349

main90179-06349

9046708224

main90467-08224

9046709206

main90467-09206

9046709232

main90467-09232

9415180600

main94151-80600

19 parts on this diagram · 2 diagrams in section
