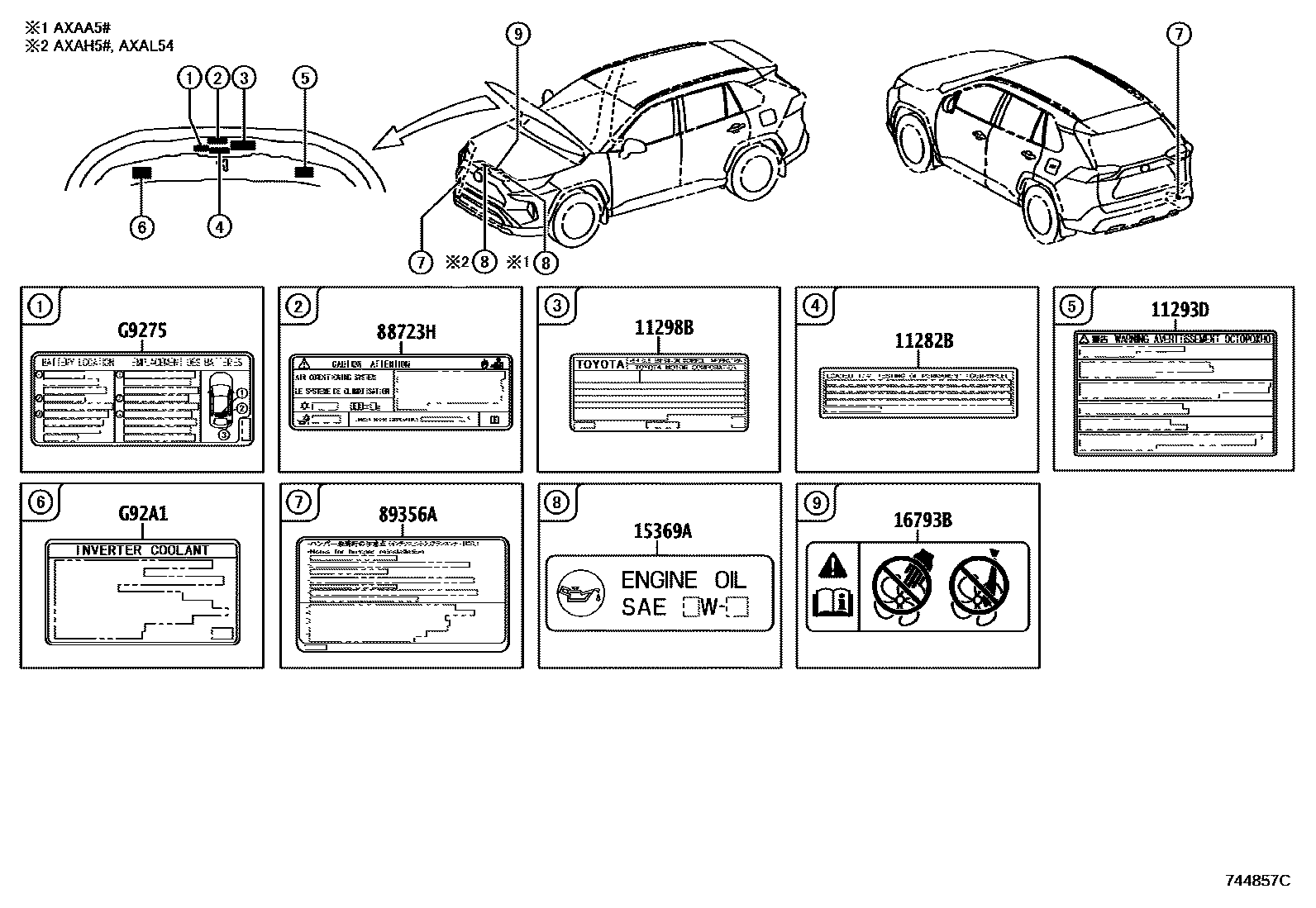

CAUTION PLATE

0001 1 0002 1 0003 1

11282BLABEL, LOADED TESTING CAUTION

main11282-74010iA25AFKS..AXAA54201811-202009

11293DLABEL, ENGINE CAUTION

main11293-36070iA25AFXS..AXAH5#,AXAL54201811-202112

11298BLABEL, EMISSION CONTROL INFORMATION

main11298-25070iA25AFKS..AXAA5#201811-201909

main11298-25071iA25AFKS..AXAA5#201909-202007

main11298-25072iA25AFKS..AXAA5#202008-202112

main11298-25073iA25AFKS..AXAA54202112-202210

main11298-25074iA25AFKS..AXAA54202210-202310

main11298-25075iA25AFKS..AXAA54202310-202411

main11298-25076iA25AFKS..AXAA54202411

main11298-25080iA25AFXS..AXAH5#201811-201909

main11298-25081iA25AFXS..AXAH5#,AXAL54201909-202007

main11298-25082iA25AFXS..AXAH5#,AXAL54202008-202112

main11298-25083iA25AFXS..AXAH5#,AXAL54202112-202210

main11298-25084iA25AFXS..AXAH5#,AXAL54202210-202310

main11298-25085iA25AFXS..AXAH5#,AXAL54202310-202411

main11298-25086iA25AFXS..AXAH5#,AXAL54202411

main11298-25280iA25AFKS..AXAA52202112-202210

main11298-25281iA25AFKS..AXAA52202210-202310

main11298-25282iA25AFKS..AXAA52202310-202411

main11298-25283iA25AFKS..AXAA52202411

15369ALABEL, ENGINE OIL INFORMATION

main15369-25010iA25#..AXAA5#,AXAH5#,AXAL54201811-202310

16793BLABEL, COOLING FAN INFORMATION

main16793-36030iA25#..AXAA5#,AXAH5#,AXAL54201811-202310

88723HLABEL, COOLER SERVICE CAUTION

main88723-11010iAXAA5#201811-202310

main88723-11020iAXAH54,AXAL54201902-202310

main88723-33170iAXAH52202008-202310

KOREA SPEC

main88723-33170iAXAH52201811-202007

89356ALABEL, CLEARANCE WARNING INFORMATION

main89356-47020iAXAA5#,AXAH54,AXAL54..G201811-202111

CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)

main89356-47020iAXAA5#,AXAH54,AXAL54..M202008-202110

POWER DOOR LOCK-TWO OPERATION & *PBD(*KPBD)

G9275LABEL, BATTERY CAUTION, NO.1

mainG927512010iAXAH5#201811-202310

mainG927548120iAXAL54202005-202310

G92A1LABEL, HYBRID COOLANT SYSTEM INFORMATION

mainG92A176010iAXAH5#,AXAL54201811-202007

9 parts on this diagram · 3 diagrams in section
