SEAT BELT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
LT.GRAY,TRIM1#,20,4#
LT.GRAY,TRIM1#,2#,4#
LT.GRAY,TRIM20,41
LT.GRAY,TRIM2#,4#
BLACK,TRIM20,41
BLACK,TRIM20
BLACK,TRIM2#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
LT.GRAY,TRIM1#,2#,4#
LT.GRAY,TRIM20,41
LT.GRAY,TRIM1#,20,4#
LT.GRAY,TRIM2#,4#
BLACK,TRIM20,41
BLACK,TRIM2#
BLACK,TRIM20
73119PLATE, SEAT BELT WEBBING CLIP
KOREA SPEC
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
BLACK,TRIM2#
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,4#
KOREA SPEC,BLACK,TRIM1#,2#,4#
BLACK/BLACK,TRIM1#,2#,4#
KOREA SPEC,BLACK/BLACK,TRIM1#,2#,4#
73214PLATE, FRONT SEAT BELT ANCHOR
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
BLACK
BLACK,PUERTO RICO SPEC
BLACK,KOREA SPEC
GRAY,KOREA SPEC
GRAY,PUERTO RICO SPEC
GRAY
BEIGE
BEIGE,PUERTO RICO SPEC
BEIGE,KOREA SPEC
73220BELT ASSY, FRONT SEAT OUTER, LH
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK/BLACK,TRIM2#
BLACK/BLACK,TRIM2#,4#
BLACK/BLACK,TRIM1#,2#,4#
73230BELT ASSY, FRONT SEAT INNER, RH
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#,4#
73233COVER, LAP BELT OUTER ANCHOR
BLACK,TRIM2#
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#,4#
73240BELT ASSY, FRONT SEAT INNER, LH
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#,4#
FRONT SEAT-DRIVER SEAT:MEMORY POWER SEAT,BLACK,TRIM1#,2#,4#
FRONT SEAT-DRIVER SEAT:POWER SEAT,BLACK,TRIM1#,2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#
9010510523
9010911059
9017811002
9017911010
9155380612

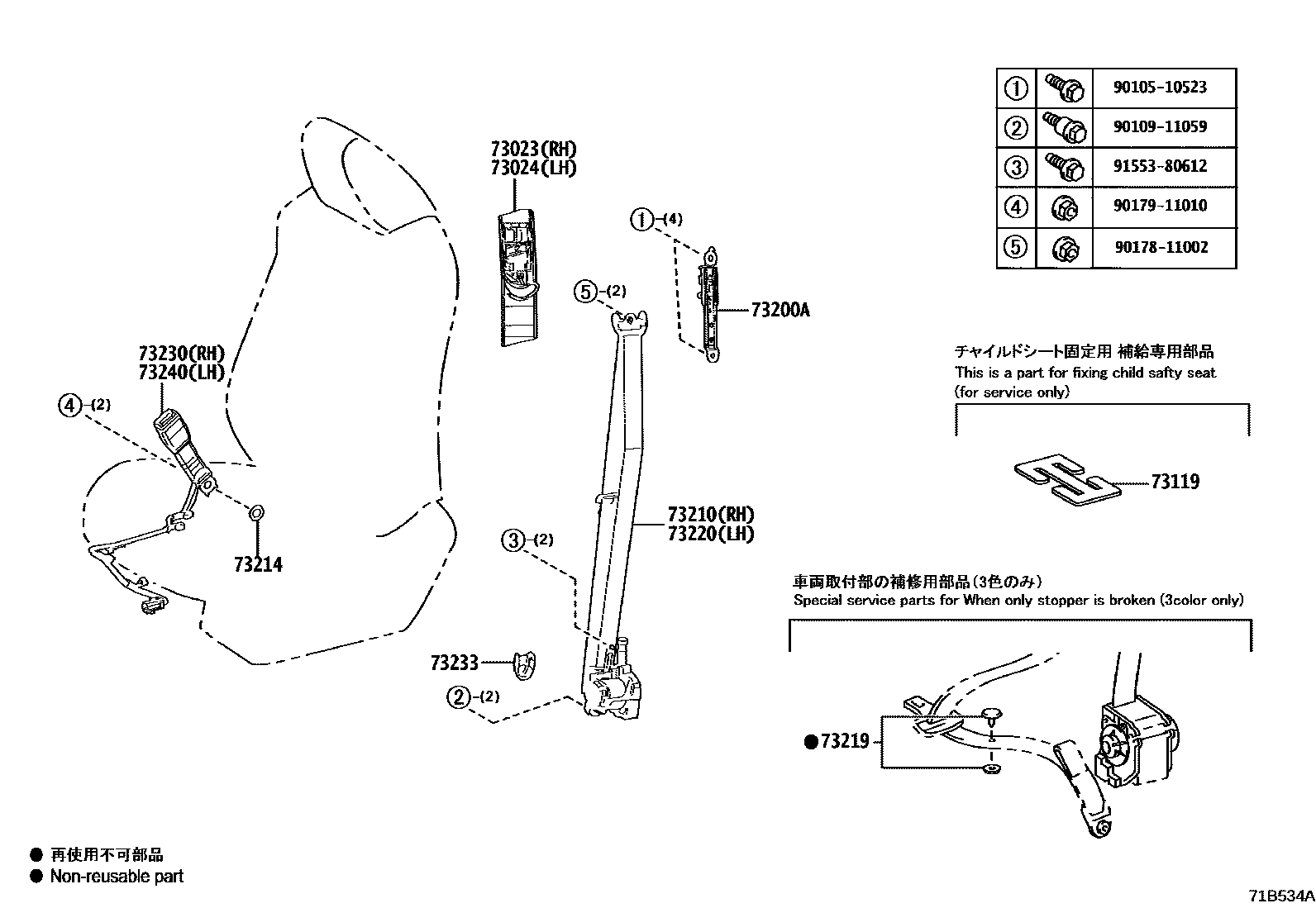

16 parts on this diagram · 2 diagrams in section
