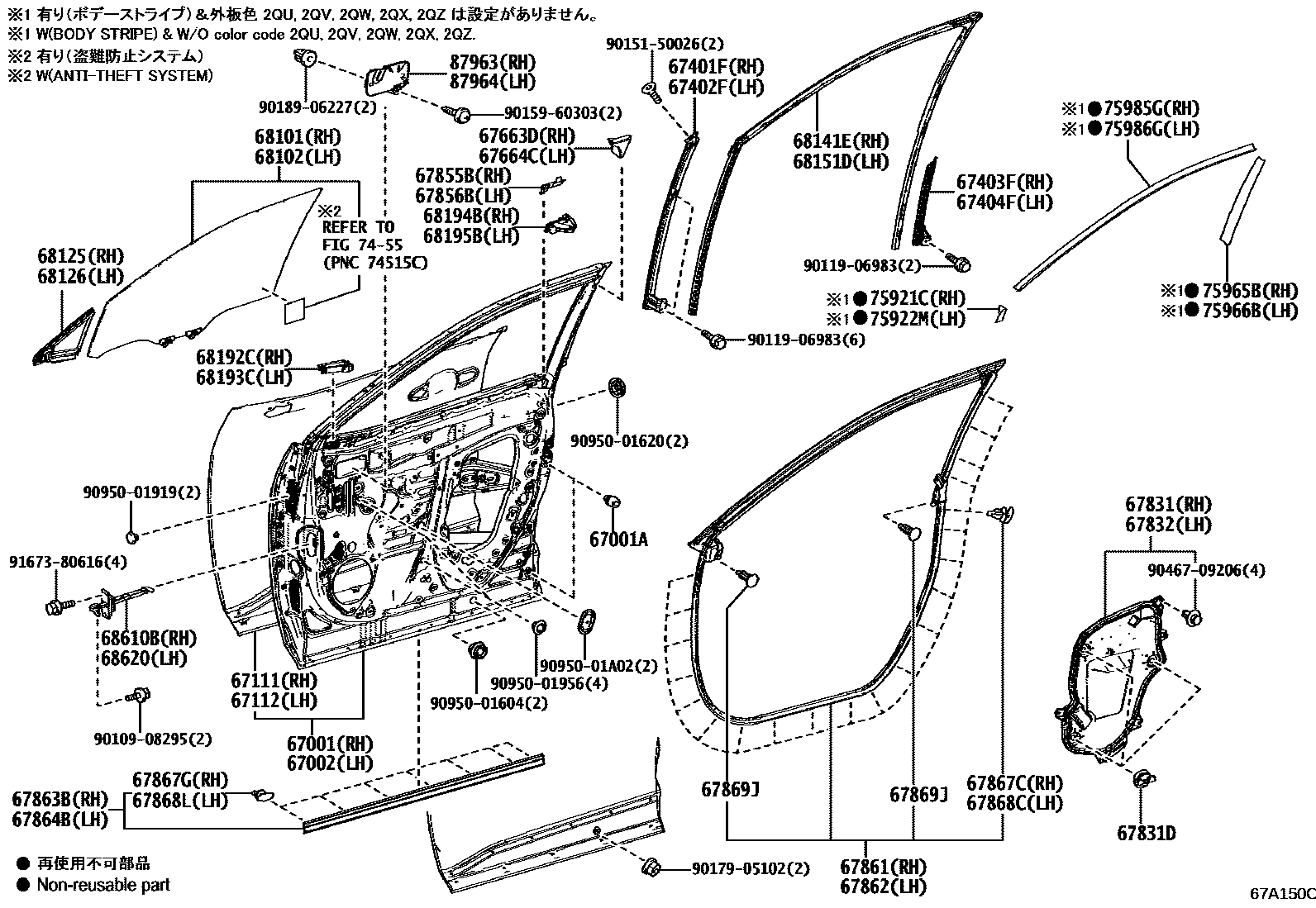

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-42160iAXAA5#,AXAH5#,AXAL54201811-202007

sub67001-42161

sub87091-42010

main67001-42170iAXAA5#,AXAH5#,AXAL54202008-202103

sub87091-42010

main67001-42171iAXAA5#,AXAH5#,AXAL54202103-202210

67001ACUSHION, FRONT DOOR PANEL

main90541-09137×4iAXAA5#,AXAH5#,AXAL54201811-202007

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-42180iAXAA5#,AXAH5#,AXAL54201811-202007

sub67002-42181

sub87091-42010

main67002-42190iAXAA5#,AXAH5#,AXAL54202008-202103

sub87091-42010

main67002-42191iAXAA5#,AXAH5#,AXAL54202103-202210

67111PANEL, FRONT DOOR, OUTER RH

main67111-42080iAXAA5#,AXAH5#,AXAL54202008-202210

67112PANEL, FRONT DOOR, OUTER LH

main67112-42080iAXAA5#,AXAH5#,AXAL54202310

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-42030iAXAA5#,AXAH5#,AXAL54201811-202007

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-42030iAXAA5#,AXAH5#,AXAL54201811-202007

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-42050iAXAA5#,AXAH5#,AXAL54202008-202210

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-42050iAXAA5#,AXAH5#,AXAL54202008-202210

67663DGARNISH, DOOR FRAME, RH

main67663-42030iAXAA5#,AXAH5#,AXAL54202008-202210

67664CGARNISH, DOOR FRAME, LH

main67664-42030iAXAA5#,AXAH5#,AXAL54201811-202007

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-42090iAXAA5#,AXAH5#,AXAL54202210-202310

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main67869-42010×6iAXAA5#,AXAH5#,AXAL54202404

main67869-47010×6iAXAA5#,AXAH5#,AXAL54202008-202210

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-42040iAXAA5#,AXAH5#,AXAL54201811-202007

67855BPROTECTOR, FRONT DOOR PANEL, RH

main67855-42030iAXAA5#,AXAH5#,AXAL54201811-202007

67856BPROTECTOR, FRONT DOOR PANEL, LH

main67856-42030iAXAA5#,AXAH5#,AXAL54201811-202007

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-42120iAXAA5#,AXAH5#,AXAL54202210-202310

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-42120iAXAA5#,AXAH5#,AXAL54201811-202007

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-42040iAXAA5#,AXAH5#,AXAL54201811-202007

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67864-42030iAXAA5#,AXAH5#,AXAL54202008-202210

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×21iAXAA5#,AXAH5#,AXAL54202310

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-12150×7iAXAA5#,AXAH5#,AXAL54201811-202007

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×21iAXAA5#,AXAH5#,AXAL54201811-202007

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-12150×7iAXAA5#,AXAH5#,AXAL54201811-202007

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-26050×4iAXAA5#,AXAH5#,AXAL54201811-202007

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-42260supersedes 68101-42280iAXAH54..G202210-202310

KOREA SPEC

main68101-42350iAXAH52202008-202210

KOREA SPEC

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-42270supersedes 68102-42290iAXAH54..G202210-202310

KOREA SPEC

main68102-42360iAXAA52..M;AXAH54..G,M201811-202007

KOREA SPEC

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-42020iAXAA5#,AXAH5#,AXAL54202210-202310

main68125-42050iAXAA52..M;AXAH54..G,M201811-202007

KOREA SPEC

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-42020iAXAA5#,AXAH5#,AXAL54202210-202310

main68126-42050iAXAH52202008-202210

KOREA SPEC

68141ERUN, FRONT DOOR GLASS, RH

main68141-42120iAXAA5#,AXAH5#201811-201903

main68141-42121iAXAA5#,AXAH5#,AXAL54202210-202310

68151DRUN, FRONT DOOR GLASS, LH

main68151-42120iAXAA5#,AXAH5#201811-201903

main68151-42121iAXAA5#,AXAH5#,AXAL54201904-202007

68192CSEAL, FRONT DOOR BELT, FRONT RH

main68192-42010iAXAA5#,AXAH5#,AXAL54202008-202210

68193CSEAL, FRONT DOOR BELT, FRONT LH

main68193-42010iAXAA5#,AXAH5#,AXAL54202008-202210

68194BSEAL, FRONT DOOR BELT, REAR RH

main68194-42010iAXAA5#,AXAH5#,AXAL54202310

68195BSEAL, FRONT DOOR BELT, REAR LH

main68195-42010iAXAA5#,AXAH5#,AXAL54202008-202210

68610BCHECK ASSY, FRONT DOOR, RH

main68610-42060iAXAA5#,AXAH5#,AXAL54202310

68620CHECK ASSY, FRONT DOOR, LH

main68610-42060iAXAA5#,AXAH5#,AXAL54202008-202210

7455

75921CTAPE, BLACK OUT, NO.1 RH

main75921-42050iAXAH54,AXAL54..P202112-202210

75922MTAPE, BLACK OUT, NO.1 LH

main75922-42050iAXAH54,AXAL54..P202310

75965BSTRIPE, FRONT DOOR NO.4 RH

main75965-42010iAXAH54,AXAL54..P202310

75966BSTRIPE, FRONT DOOR NO.4 LH

main75966-42010iAXAH54,AXAL54..P202310

75985GSTRIPE, FRONT DOOR OUTSIDE, RH

main75985-42050iAXAH54,AXAL54..P202310

75986GSTRIPE, FRONT DOOR OUTSIDE, LH

main75986-42030iAXAH54,AXAL54..P202210-202310

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-42010iAXAA5#,AXAH5#,AXAL54202008-202210

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-42010iAXAA5#,AXAH5#,AXAL54201811-202007

9010908295

main90109-08295

9011906983

main90119-06983

9015150026

main90151-50026

9015960303

main90159-60303

9017905102

main90179-05102

9018906227

main90189-06227

9046709206

main90467-09206

9095001604

main90950-01604

9095001620

main90950-01620

9095001919

main90950-01919

9095001956

main90950-01956

9095001A02

main90950-01A02

9167380616

main91673-80616

59 parts on this diagram · 2 diagrams in section
