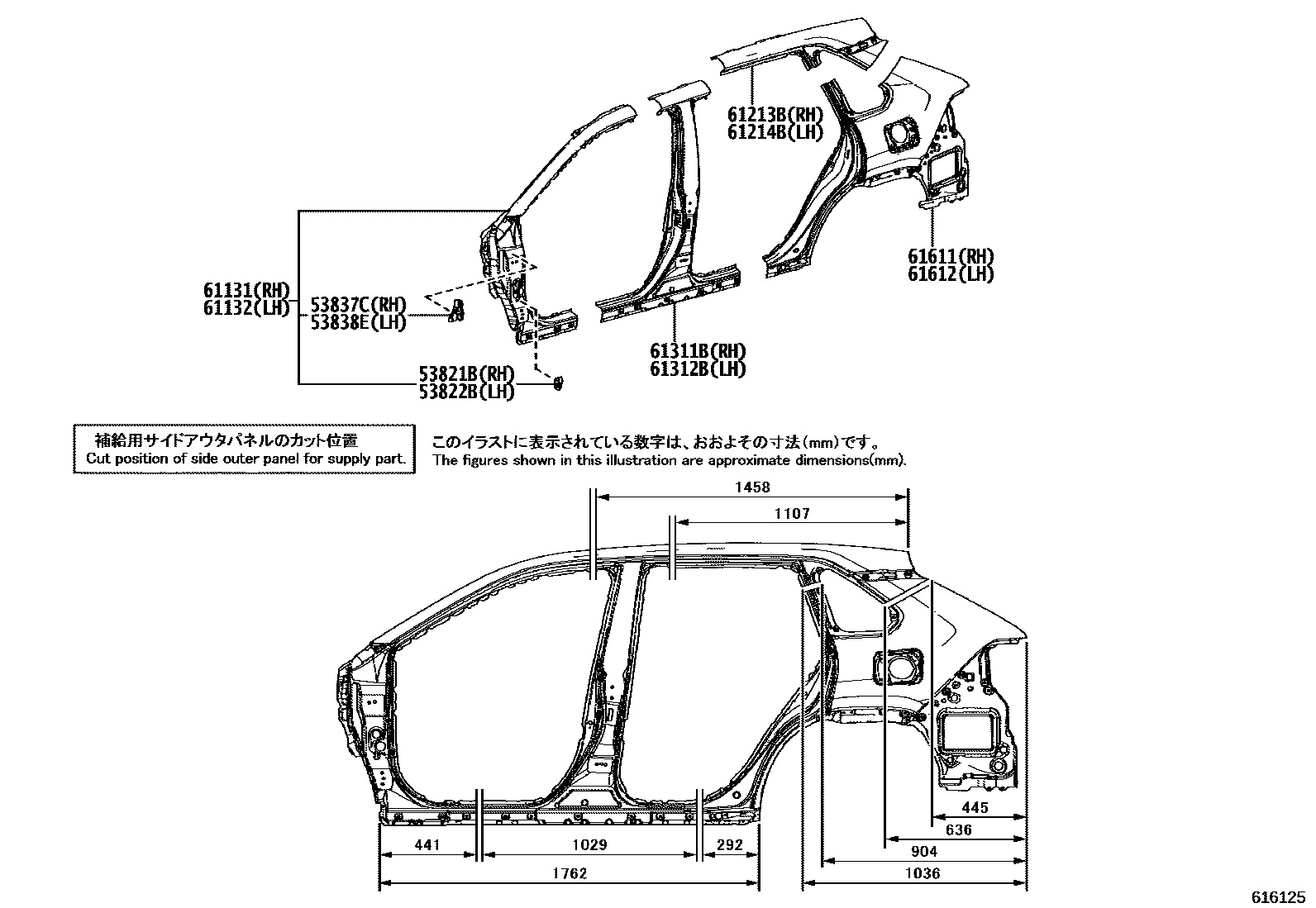

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL,RH 0003 1INNER PANEL,LH 0004 1INNER PANEL,LH

53821BBRACKET, FRONT FENDER, REAR RH

main53821-42030iAXAA5#,AXAH5#,AXAL54201811-202310

53822BBRACKET, FRONT FENDER, REAR LH

main53821-42030iAXAA5#,AXAH5#,AXAL54201811-202310

53837CBRACKET, FRONT SIDE PANEL, NO.2 RH

main53837-42020iAXAA5#,AXAH5#,AXAL54201811-202310

53838EBRACKET, FRONT SIDE PANEL, NO.2 LH

main53838-42020iAXAA5#,AXAH5#,AXAL54201811-202310

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61010-42020iAXAA5#,AXAH5#,AXAL54201811-202112

main61010-42021iAXAA5#,AXAH5#,AXAL54202112-202310

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61020-42020iAXAA5#,AXAH5#,AXAL54201811-202112

main61020-42021iAXAA5#,AXAH5#,AXAL54202112-202310

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61210-42010iAXAA5#,AXAH5#,AXAL54201811-202112

main61210-42011iAXAA5#,AXAH5#,AXAL54202112-202310

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61220-42010iAXAA5#,AXAH5#,AXAL54201811-202112

main61220-42011iAXAA5#,AXAH5#,AXAL54202112-202310

61311BPILLAR, CENTER BODY, OUTER RH

main61311-42050iAXAA5#,AXAH5#,AXAL54201811-202112

main61311-42051iAXAA5#,AXAH5#,AXAL54202112-202310

61312BPILLAR, CENTER BODY, OUTER LH

main61312-42050iAXAA5#,AXAH5#,AXAL54201811-202112

main61312-42051iAXAA5#,AXAH5#,AXAL54202112-202310

61611PANEL, QUARTER, RH

main61601-42130iAXAA5#,AXAH5#,AXAL54201811-202007

main61601-42160iAXAA5#,AXAH5#,AXAL54202008-202310

61612PANEL, QUARTER, LH

main61602-42130iAXAA5#,AXAH5#,AXAL54201811-202007

main61602-42140iAXAA5#,AXAH5#,AXAL54202008-202310

12 parts on this diagram · 4 diagrams in section
