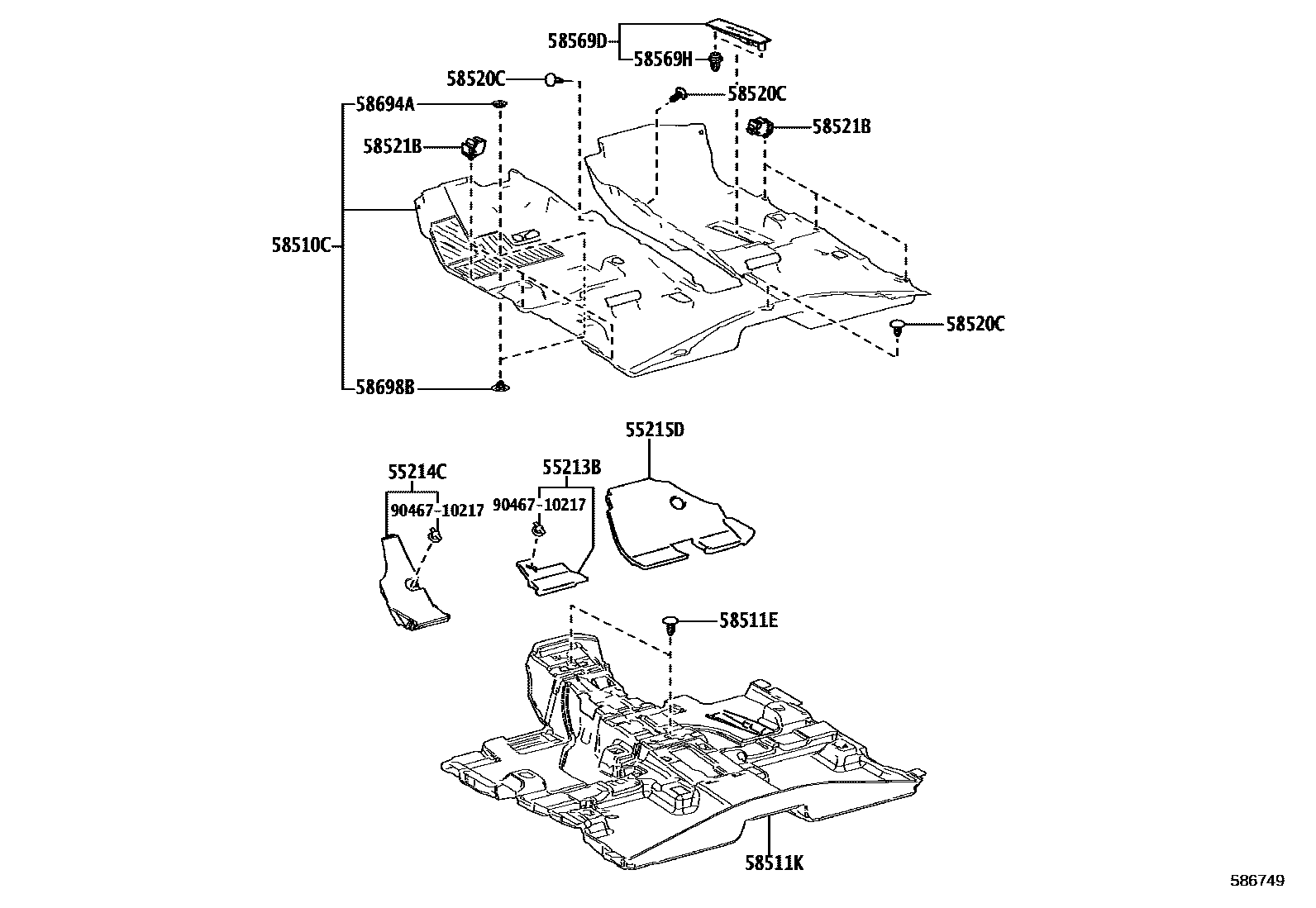

FLOOR MAT & SILENCER PAD
55213BPAD, DASH PANEL INSULATOR, NO.1
55215DPAD, DASH PANEL INSULATOR, NO.3
58510CCARPET ASSY, FRONT FLOOR, FRONT
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#,4#
58511ECLIP(FOR FRONT FLOOR MAT)
58511KMAT, FLOOR, NO.1
(J)
58520CCLIP(FOR FRONT FLOOR CARPET)
58521BHOOK, FLOOR CARPET
58569DCOVER, FRONT FLOOR CAUTION PLATE
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#
58569HCLIP, FRONT FLOOR CAUTION PLATE COVER, NO.1
58694APLATE, MAT SET, UPPER
58698BPLATE, MAT SET, LOWER
9046710217
main90467-10217
13 parts on this diagram · 2 diagrams in section
