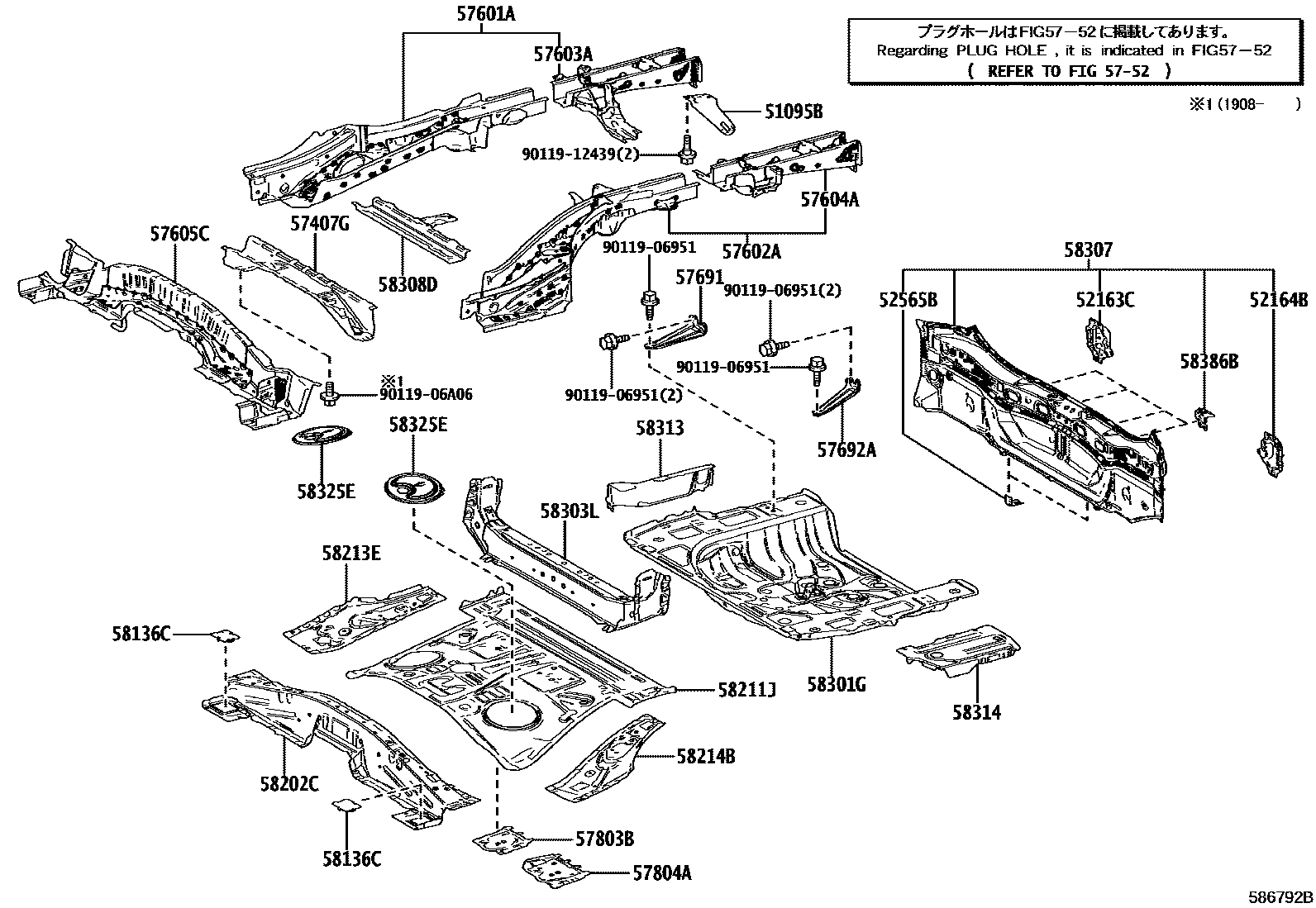

REAR FLOOR PANEL & REAR FLOOR MEMBER
51095BHOOK SUB-ASSY, TRANSPORT, REAR RH
52163CPLATE, REAR BUMPER REINFORCEMENT, RH
52164BPLATE, REAR BUMPER REINFORCEMENT, LH
52565BRETAINER, REAR BUMPER, LOWER
5752
57601AMEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602AMEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57605CMEMBER SUB-ASSY, REAR FLOOR CROSS
57691BRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER RH
57692ABRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER LH
57803BREINFORCE SUB-ASSY, BELT ANCHOR, NO.2 RH
57804AREINFORCE SUB-ASSY, BELT ANCHOR, NO.2 LH
58136CCOVER, REAR FLOOR HOLE
58202CPAN SUB-ASSY, CENTER FLOOR, FRONT
58211JPAN, CENTER FLOOR
58214BPANEL, SEAT FLOOR SIDE, LH
58303LPANEL SUB-ASSY, REAR FLOOR PARTITION
58308DBRACKET SUB-ASSY, REAR FLOOR CROSSMEMBER
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58386BBRACKET, REAR BUMPER COVER, NO.2
9011906951
main90119-06951
9011906A06
main90119-06A06
9011912439
main90119-12439
31 parts on this diagram · 2 diagrams in section
