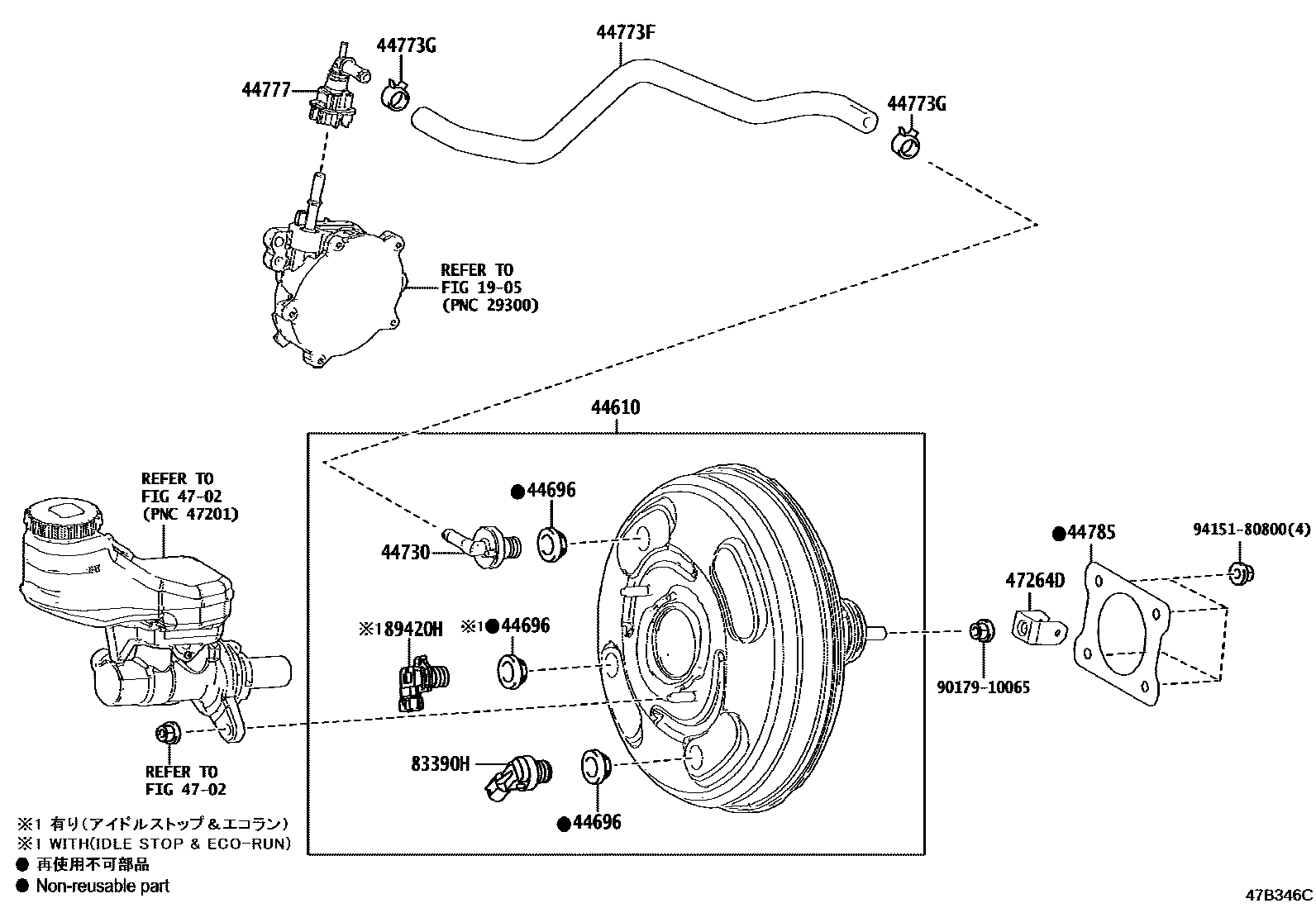

BRAKE BOOSTER & VACUUM TUBE

1905

44610BOOSTER ASSY, BRAKE

main44610-42500iAXAA54..G,V201811-202310

main44610-42510iAXAA52..M;AXAA54..M,X201811-202112

main44610-42511iAXAA52..M;AXAA54..M,X202112-202310

44696GROMMET, CHECK VALVE

main90480-24439iAXAA52..M;AXAA54..M,X¥390201811-202310

main90480-24439iAXAA52..M¥390201909-202007

KOREA SPEC

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-52010iAXAA5#¥1,300201811-202310

44773FHOSE, UNION TO CHECK VALVE

main44773-42200iAXAA5#201811-202310

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014iAXAA5#¥230201811-202310

44777CONNECTOR, VACUUM HOSE, NO.1

main44777-33010iAXAA5#¥520201811-202310

44785GASKET, BRAKE BOOSTER

main44785-12040iAXAA5#¥200201811-202310

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-42020iAXAA5#¥240201811-202310

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iAXAA5#¥3,780201811-202310

89420HSENSOR ASSY, VACUUM

main89421-52020iAXAA54..X¥5,900201811-202112

main89421-52020iAXAA5#..M¥5,900201910-202007

KOREA SPEC

main89421-71040iAXAA52..M;AXAA54..M,X¥5,900202112-202310

9017910065

main90179-10065¥90

9415180800

main94151-80800¥80

14 parts on this diagram · 1 diagram in section
