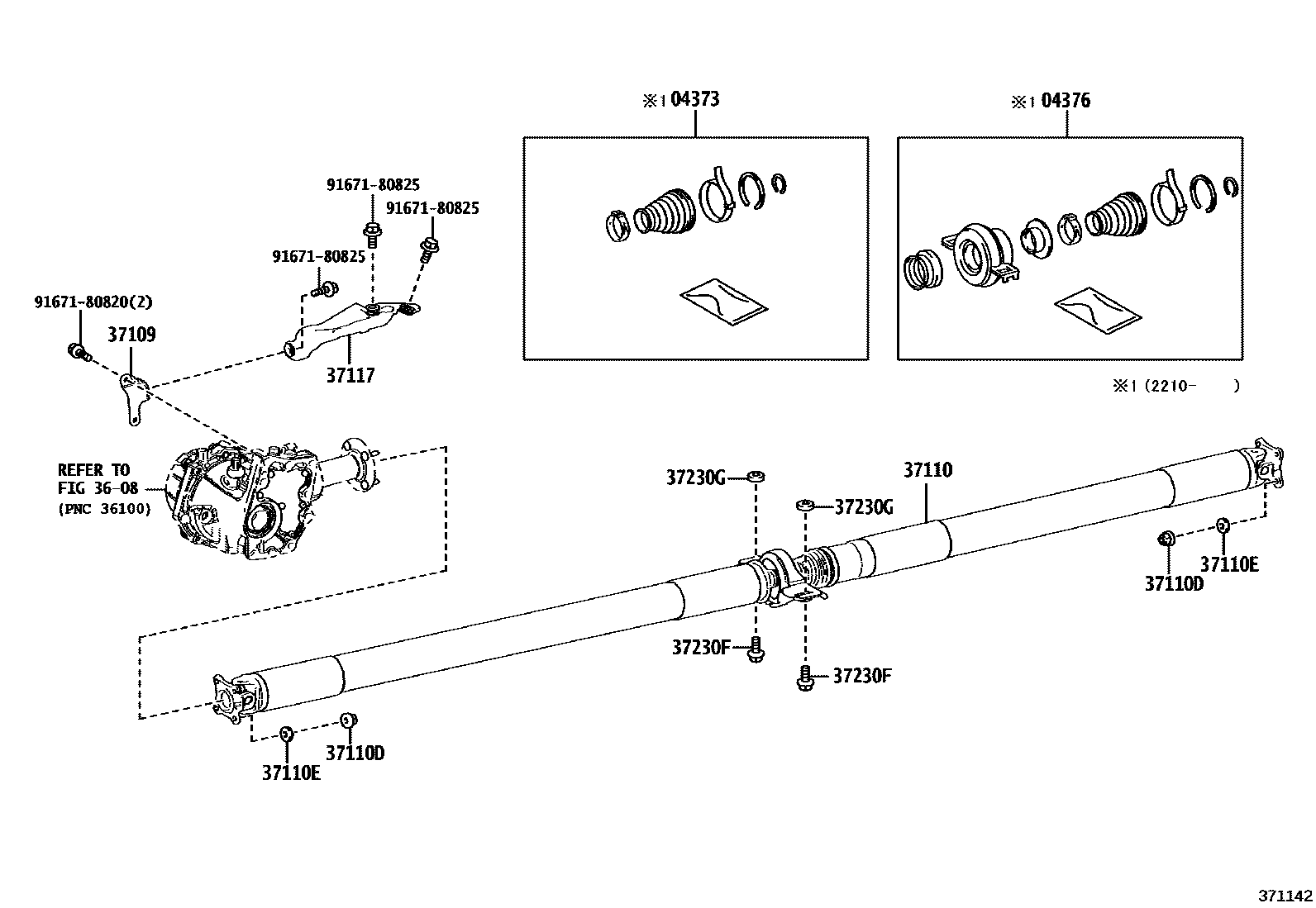

PROPELLER SHAFT & UNIVERSAL JOINT

04373BOOT KIT, UNIVERSAL

main04373-52010iAXAA54201811-202310

04376BEARING KIT, CENTER SUPPORT

main04376-52020iAXAA54201811-202310

3608

37109BRACKET SUB-ASSY, PROPELLER SHAFT HEAT INSULATOR, NO.1

main37109-42010iAXAA54201811-202310

37110SHAFT ASSY, PROPELLER

main37100-42070iAXAA54..M,X201811-202310

main37100-42100iAXAA54..G,V201811-202310

37110DNUT (FOR PROPELLER SHAFT)

main90179-08197iAXAA54201811-202310

37110EWASHER (FOR PROPELLER SHAFT)

main90201-08097iAXAA54201811-202310

37117INSULATOR, PROPELLER SHAFT HEAT

main37117-42010iAXAA54201811-202310

37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)

main90119-10444iAXAA54201811-202310

37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)

main90201-10081iAXAA54201811-202310

T=4.5

main90201-10083iAXAA54201811-202310

T=6.5

main90201-10123iAXAA54201811-202310

T=2.0

9167180820

main91671-80820

9167180825

main91671-80825

12 parts on this diagram · 1 diagram in section
