TRANSFER CASE & EXTENSION HOUSING
36100ABOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
S=22 & 22,L=69,NO.1
S=22 & 22,L=69,NO.1,TYPE B:REF ILL.
S=22 & 22,L=69,NO.1:REFER ILLUST.
S=19 & 19,L=47,NO.2:REFER ILLUST.
S=19 & 19,L=47,NO.2
S=19 & 19,L=47,NO.2,TYPE B:REF ILL.
S=30 & 22,L=64
S=30 & 22,L=64,NO.3
36100BBOLT (FOR TRANSFER & TRANSAXLE SETTING)
*12-1.25PX53-35,TYPE B:REFER ILLUST.
36103CASE SUB-ASSY, TRANSFER
36111BSEAL, OIL (FOR TRANSFER CASE)
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
L=20,OD=10
36111HPLUG, BREATHER (FOR TRANSFER CASE)
36114BPLUG, NO.1 (FOR TRANSFER CASE)
36114CGASKET, NO.1 (FOR TRANSFER CASE)
36114FPLUG (FOR TRANSFER DRAIN)
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
36114GGASKET (FOR TRANSFER DRAIN PLUG)
36114LPLUG, FILLER(FOR TRANSFER)
36114MGASKET (FOR TRANSFER FILLER PLUG)
36121COVER, TRANSFER CASE, NO.1
36121CBOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVER)
36128ABOLT (FOR BREATHER OIL DEFLECTOR)
36128BDEFLECTOR, BREATHER OIL
4302
9017912068
main90179-12068

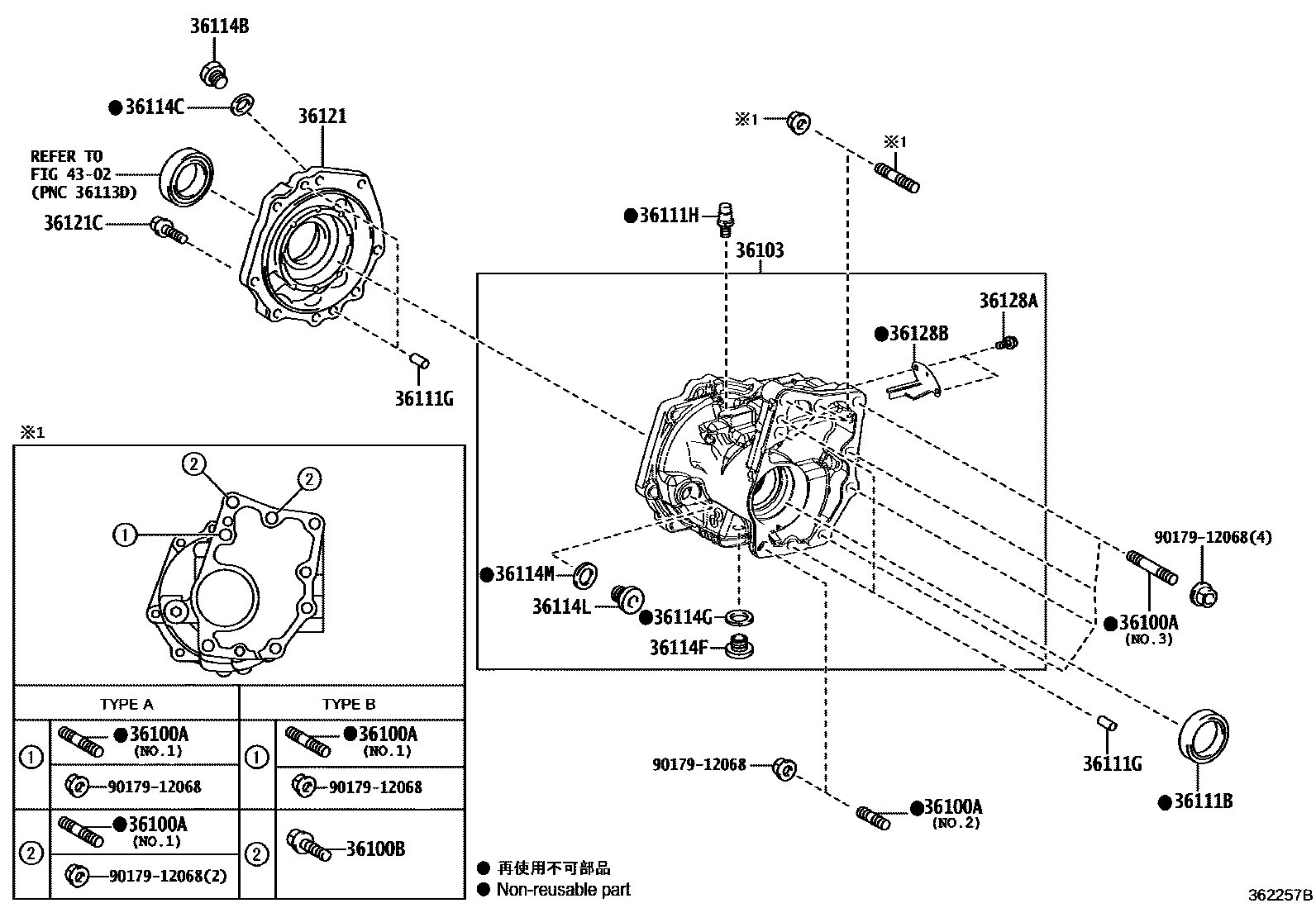

18 parts on this diagram · 2 diagrams in section
