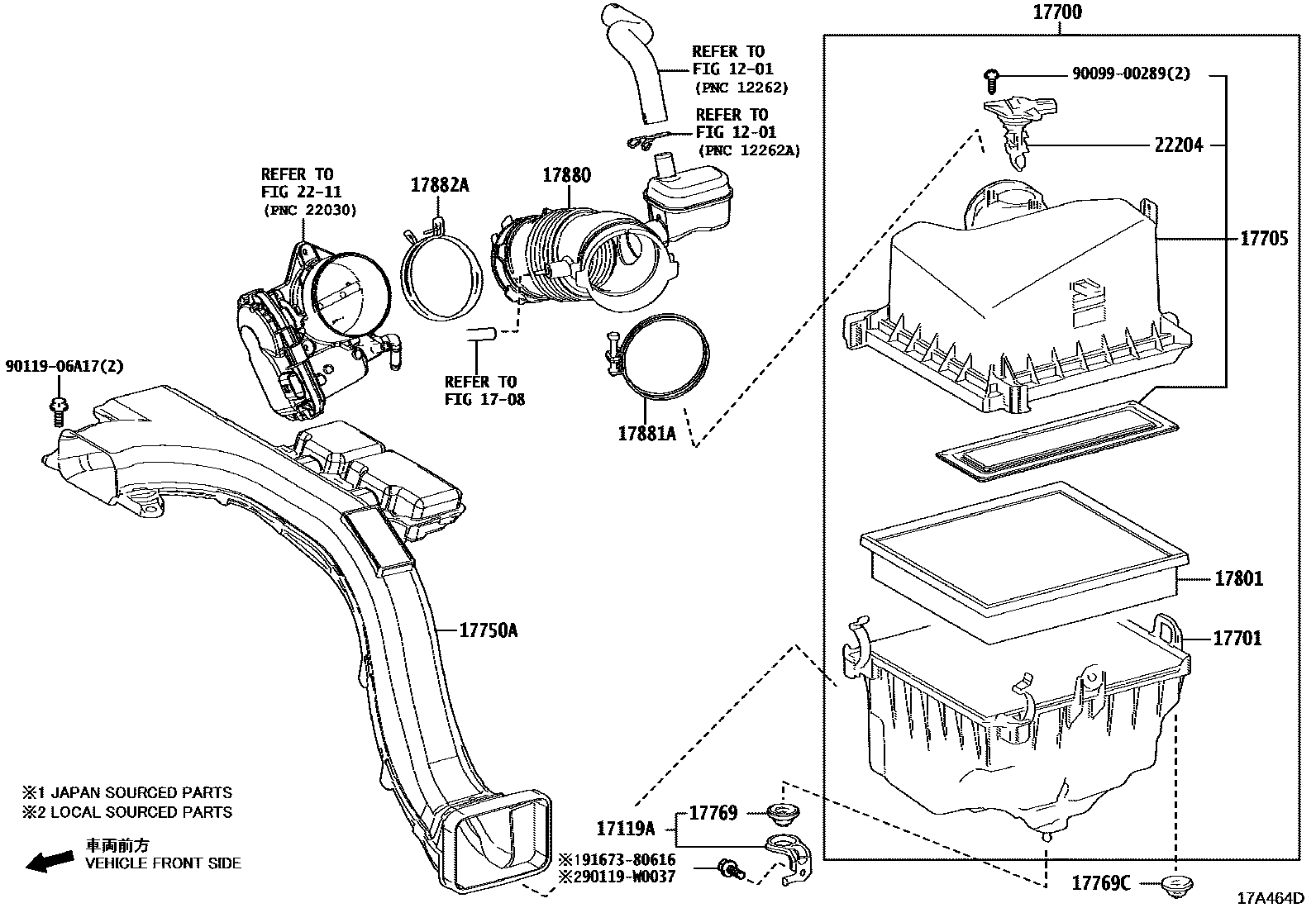

AIR CLEANER

0001 1 0002 1 0003 1

1201

1708

17119ABRACKET, AIR CLEANER

main17119-25010iA25#..AXAA5#,AXAH5#,AXAL54201811-202310

17700CLEANER ASSY, AIR

main17700-25070iA25AFKS..AXAA5#201811-202005

sub17700-25071

main17700-25071iA25AFKS..AXAA5#202006-202112

main17700-25081iA25AFKS..AXAA5#202112-202310

main17700-25101iA25AFXS..AXAH5#,AXAL54202112-202310

main17700-25110iA25AFXS..AXAL54201811-202006

sub17700-25111

main17700-25111iA25AFXS..AXAH5#,AXAL54202006-202112

17701CASE SUB-ASSY, AIR CLEANER

main17701-25070iA25AFKS..AXAA5#201811-202006

sub17701-25071

main17701-25071iA25AFKS..AXAA5#202006-202310

main17701-25080iA25AFXS..AXAH5#,AXAL54201811-202006

sub17701-25081

main17701-25081iA25AFXS..AXAH5#,AXAL54202006-202310

17705CAP SUB-ASSY, AIR CLEANER

main17705-25040iA25AFKS..AXAA5#201811-202112

main17705-25050iA25AFKS..AXAA5#202112-202310

main17705-25070iA25AFXS..AXAH5#,AXAL54202112-202310

main17705-25080iA25AFXS..AXAH5#,AXAL54201811-202112

17750AINLET ASSY, AIR CLEANER

main17750-24010iA25AFKS..AXAA5#202112-202210

main17750-24010iA25AFKS..AXAA5#202210-202304

W/O(MARK)

main17750-24030iA25AFKS..AXAA5#202304-202408

MARK=WHITE

sub17750-24040

main17750-24031iA25AFKS..AXAA5#202412

W/O(MARK)

main17750-24040iA25AFKS..AXAA5#202408-202412

main17750-25030iA25AFKS..AXAA5#201811-202112

main17750-25040iA25AFXS..AXAH5#,AXAL54201811-202310

17769SUPPORT, AIR CLEANER

main17769-25020iA25AFXS..AXAH5#,AXAL54201811-202310

NO.1:REFER ILLUST.

main17769-25030iA25AFXS..AXAH5#,AXAL54201811-202310

NO.2:REFER ILLUST.

17769CSUPPORT, AIR CLEANER, NO.1

main17769-25020iA25AFKS..AXAA5#201811-202310

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-25020iA25AFKS..AXAA5#201811-202310

main17801-77050iA25AFXS..AXAH5#,AXAL54201811-202310

17880HOSE ASSY, AIR CLEANER

main17880-25040iA25AFXS..AXAH5#,AXAL54201811-202310

main17880-25050iA25AFKS..AXAA5#201811-202310

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10850iA25AFXS..AXAH5#,AXAL54201811-202310

main96111-10880iA25AFKS..AXAA5#201811-202310

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main17891-31010iA25AFXS..AXAH5#,AXAL54201811-202310

main90466-71001iA25AFKS..AXAA5#201811-202310

2211

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-75040iA25#..AXAA5#,AXAH5#,AXAL54201811-202310

9009900289

main90099-00289

9011906A17

main90119-06A17

90119W0037

main90119-W0037

9167380616

main91673-80616

19 parts on this diagram · 3 diagrams in section
