MANIFOLD

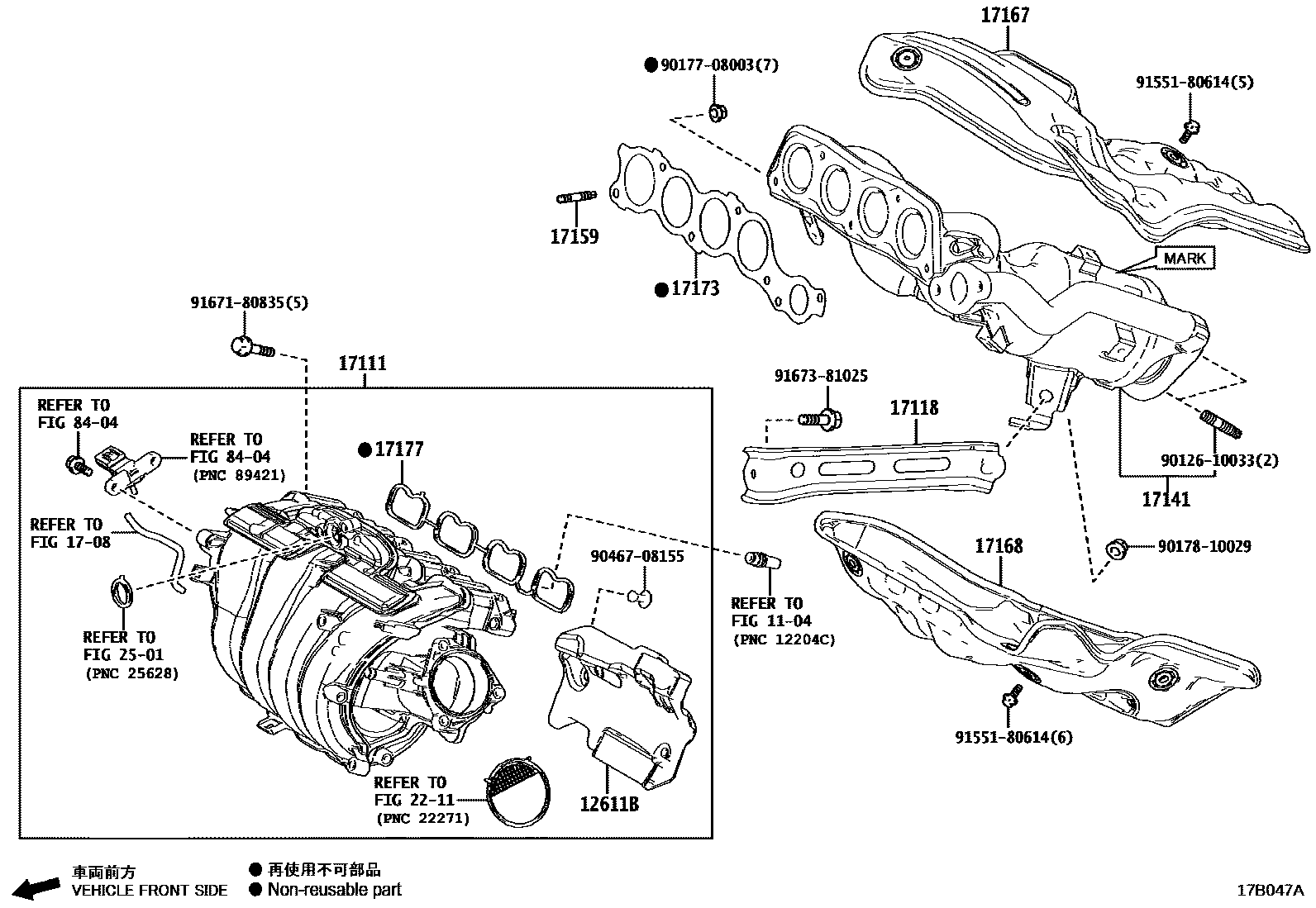

Parts diagram
1104
12611BCOVER, ENGINE, NO.1
main12613-25010i201811-202310
main12613-25020i¥1,700201811-202310
1708
17111MANIFOLD, INTAKE
main17120-25010i¥26,500201811-202310
main17120-25020i¥26,500201811-202310
17118STAY, MANIFOLD
main17118-25030i¥1,540201811-202310
17141MANIFOLD, EXHAUST
main17141-25021i¥99,300202009-202210
MARK L:REFER ILLUST.
main17141-25130i201811-202007
MARK T:REFER ILLUST.
sub17141-25131¥110,000
sub17167-25040¥3,320
sub17168-25040¥3,050
main17141-25131i¥110,000202008-202209
MARK R:REFER ILLUST.
sub17141-25021¥99,300
main17141-25150i¥132,000201811-202007
*114=TOYOTA/25150/Y
sub17141-25151¥110,000
sub17167-25040¥3,320
sub17168-25040¥3,050
main17141-25151i¥110,000202008-202209
*114=TOYOTA/25150/Y
sub17141-25161¥99,300
main17141-25161i¥99,300202209-202210
*114=TOYOTA/25160/Y
main17141-25320i202301-202411
MARK 32:REF.ILLUST
main17141-25330i202112-202301
MARK 33:REF.ILLUST
sub17141-25420
main17141-25350i202210-202301
MARK 35:REF.ILLUST
sub17141-25320
main17141-25420i202301-202411
MARK 42:REF.ILLUST
main17141-25420i202209-202210
main17141-25740i202411
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
main90126-08052i¥80201811-202310
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
main17167-25010i¥3,650201811-202007
main17167-25040i¥3,320202008-202310
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
main17168-25010i¥3,360201811-202007
main17168-25040i¥3,050202008-202310
17173GASKET, EXHAUST MANIFOLD TO HEAD
main17173-25020i¥1,060201811-202310
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
main17171-25010i¥820201811-202310
2211
2501
8404
9012610033
main90126-10033¥440
9017708003
main90177-08003¥80
9017810029
main90178-10029¥100
9046708155
main90467-08155¥110
9155180614
main91551-80614¥60
9167180835
main91671-80835¥100
9167381025
main91673-81025¥120

21 parts on this diagram · 4 diagrams in section
