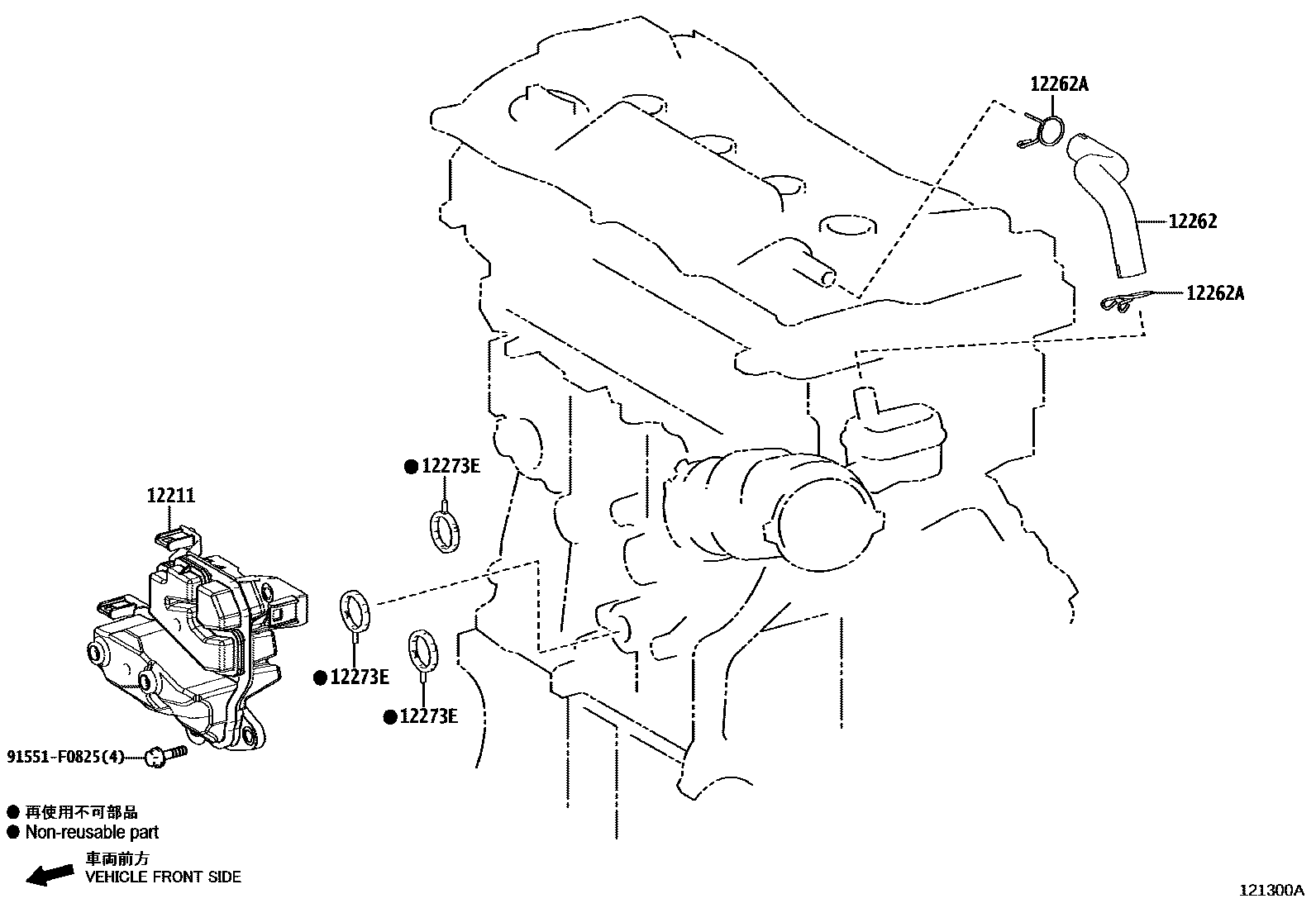

VENTILATION HOSE

0001 1 0002 1

12211CASE, VENTILATION, NO.1

main12211-25010iA25#..AXAA5#,AXAH5#,AXAL54201811-202007

sub12211-25011

main12211-25011iA25AFKS..AXAA52..G,X;A25AFKS..AXAA54..G,V;A25AFXS..AXAH5#,AXAL54202008-202403

12262HOSE, VENTILATION, NO.2

main12262-25030iA25AFKS..AXAA5#201811-202310

main12262-25080iA25AFXS..AXAH5#,AXAL54201811-202310

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21004iA25#..AXAA5#,AXAH5#,AXAL54201811-202310

12273EGASKET(FOR VENTILATION CASE)

main12273-24010iA25#..AXAA5#,AXAH5#,AXAL54201811-202403

91551F0825

main91551-F0825

5 parts on this diagram · 2 diagrams in section
