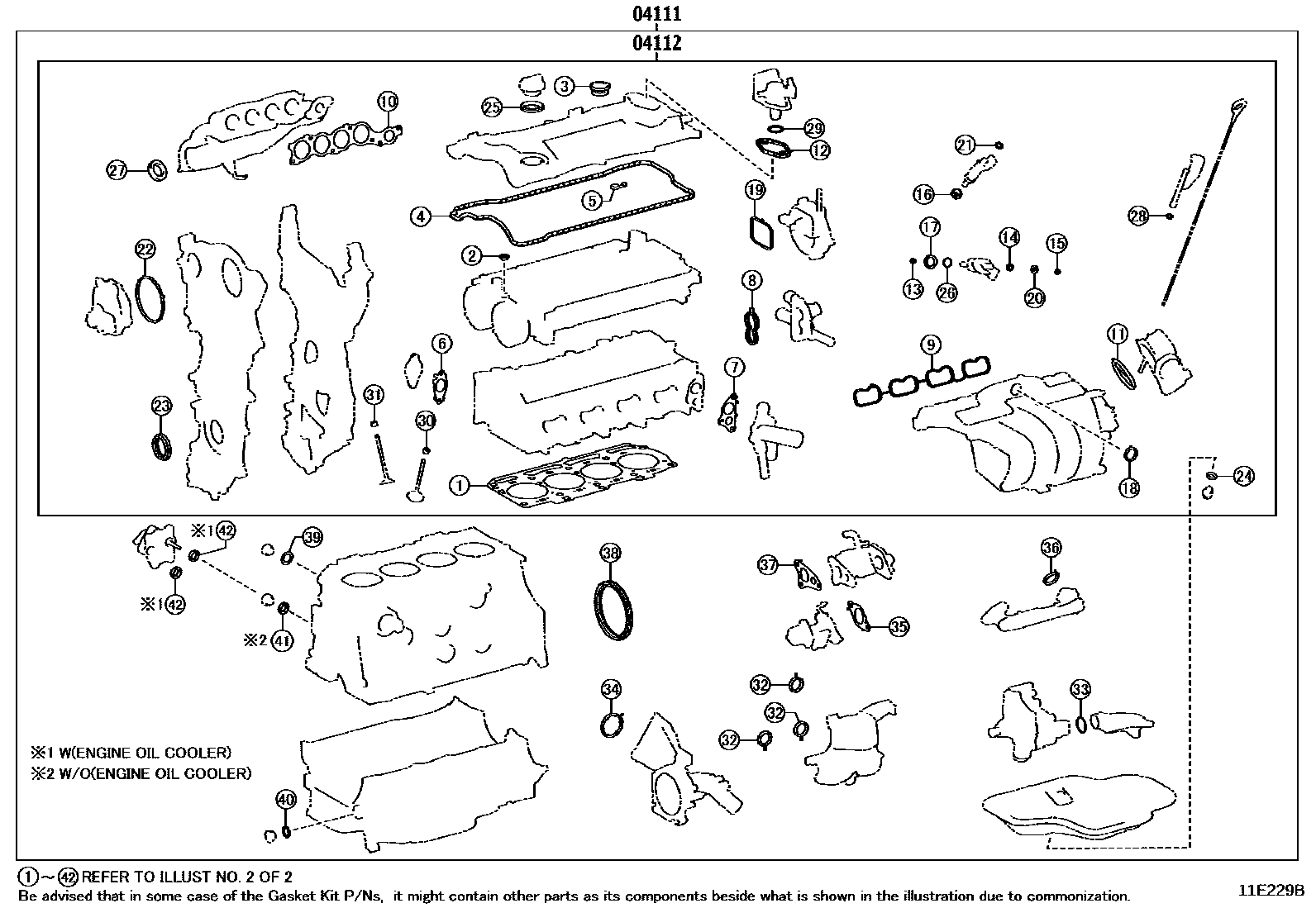

ENGINE OVERHAUL GASKET KIT

0001 1 0002 1 0003 1 0004 1

04111GASKET KIT, ENGINE OVERHAUL

main04111-25180iA25AFKS..AXAA5#201811-202007

main04111-25230supersedes 04111-25251iA25AFKS..AXAA5#202104-202112

sub04111-25231

main04111-25240iA25AFXS..AXAH5#,AXAL54202008-202112

sub04111-25241

main04111-25261iA25AFXS..AXAH5#,AXAL54202310

main04111-25280iA25AFKS..AXAA5#..G,M,X202112-202210

04112GASKET KIT, ENGINE VALVE GRIND

main04112-25120iA25AFKS..AXAA5#202008-202103

main04112-25170iA25AFKS..AXAA5#202104-202112

main04112-25171iA25AFKS..AXAA5#202310

main04112-25180iA25AFXS..AXAH5#,AXAL54202008-202112

main04112-25181iA25AFXS..AXAH5#,AXAL54202210-202310

2 parts on this diagram · 4 diagrams in section
