PARTIAL ENGINE ASSEMBLY

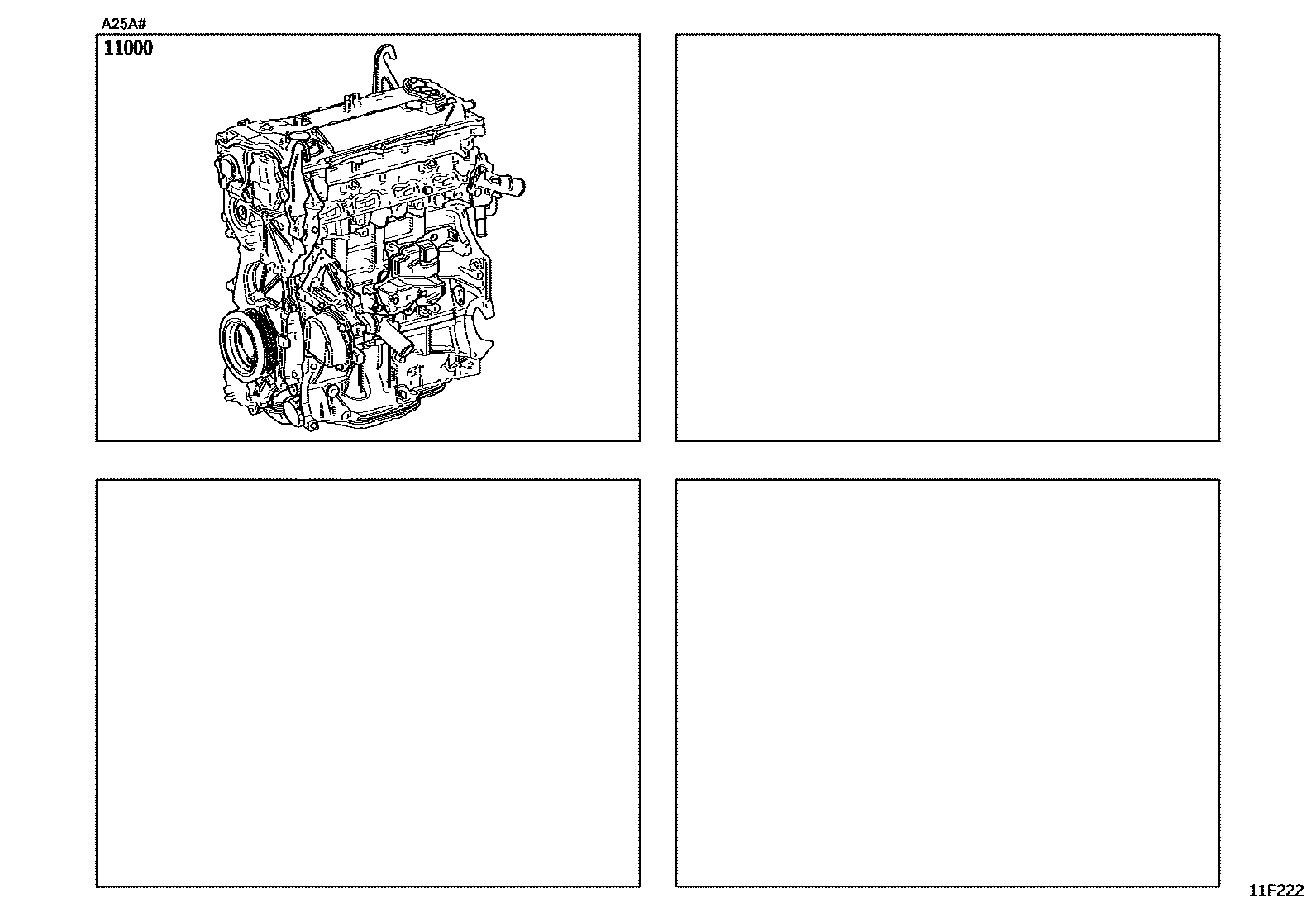

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-25220i201811-202112
main19000-25230i201811-202112
TOWING PACKAGE-WITH
main19000-25250i201811-202112
main19000-25300i202112-202204
W(PNC 12211)
main19000-25300i202112-202402
main19000-25340i202112-202204
W(PNC 12211)
main19000-25360i202112-202204
W(PNC 12211)
sub19000-2E010
main19000-2E010i202204-202310
W/O(PNC 12211)
main19000-2E020i202204-202310
W/O(PNC 12211)
main19000-2E020i202310
main19000-2E030i202204-202310
W/O(PNC 12211)
main19000-2E030i202403

1 parts on this diagram · 1 diagram in section
