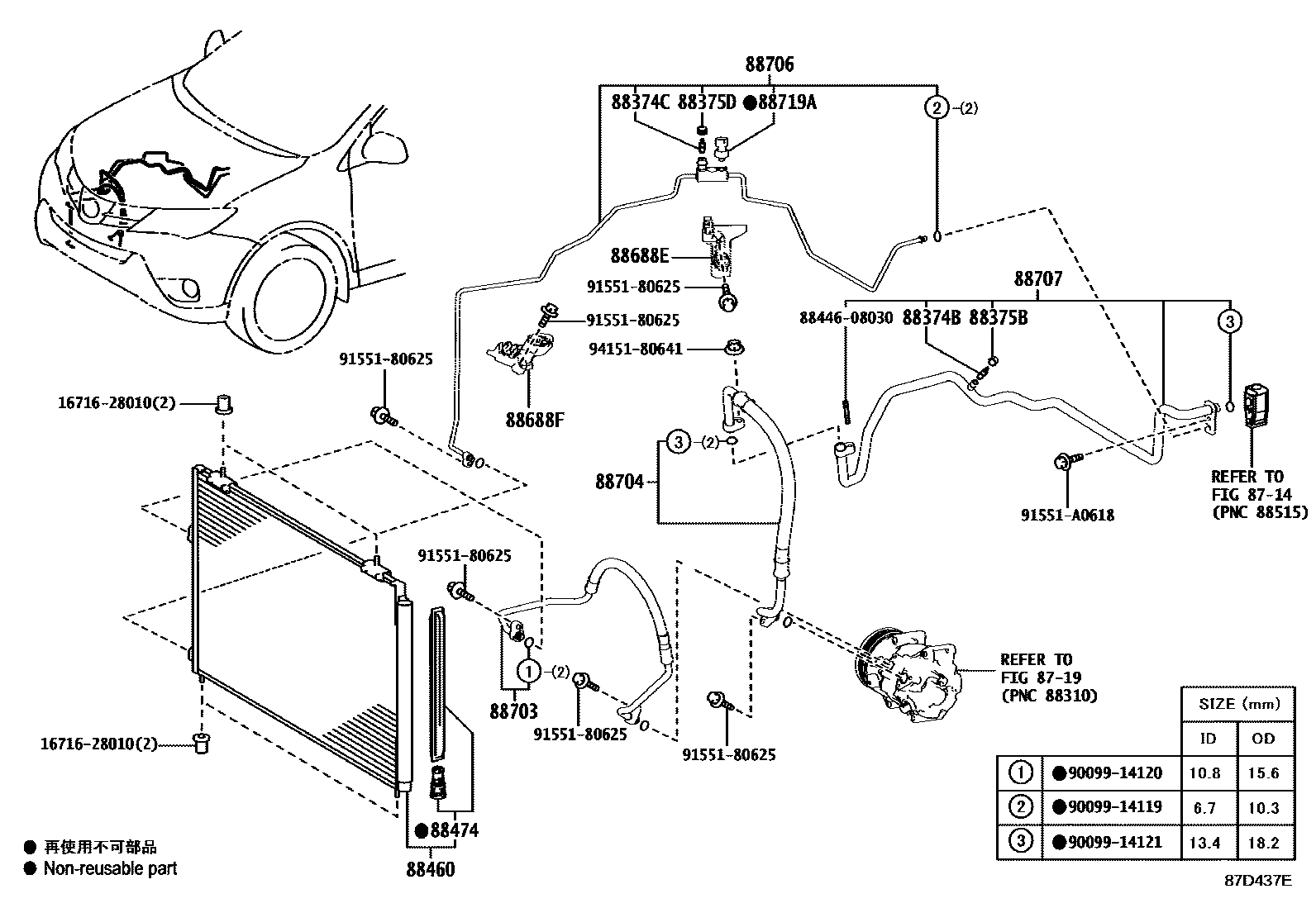

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iASA4#201212-201810

88374CVALVE, SERVICE, NO.2

main88374-30010iASA4#201212-201810

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iASA4#201212-201810

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iASA4#201212-201810

88460CONDENSER ASSY, COOLER

main88460-42110iASA4#201212-201810

main88460-42150iAVA44201510-201810

88474DRYER, COOLER

main88474-12030iASA4#201212-201810

main88474-47020iAVA44201510-201810

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-42510iASA4#201212-201810

88688FBRACKET, COOLER REFRIGERANT HOSE, NO.2

main88688-42520iASA4#201212-201810

88703HOSE SUB-ASSY, DISCHARGE

main88703-42210iASA4#201212-201810

main88703-42240iAVA44201510-201810

88704HOSE SUB-ASSY, SUCTION

main88704-42280iASA4#201212-201810

main88704-42710iAVA44201510-201810

88706PIPE SUB-ASSY, LIQUID

main88706-42450iASA4#201212-201810

main88706-42810iAVA44201510-201810

88707PIPE SUB-ASSY, SUCTION

main88707-42120iASA4#201212-201810

main88707-42150iAVA44201510-201810

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iASA4#201212-201810

1671628010CUSHION, FAN SHROUD

main16716-28010

8844608030BOLT, IDLE PULLEY

main88446-08030

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9155180625

main91551-80625

91551A0618

main91551-A0618

9415180641

main94151-80641

23 parts on this diagram · 2 diagrams in section
