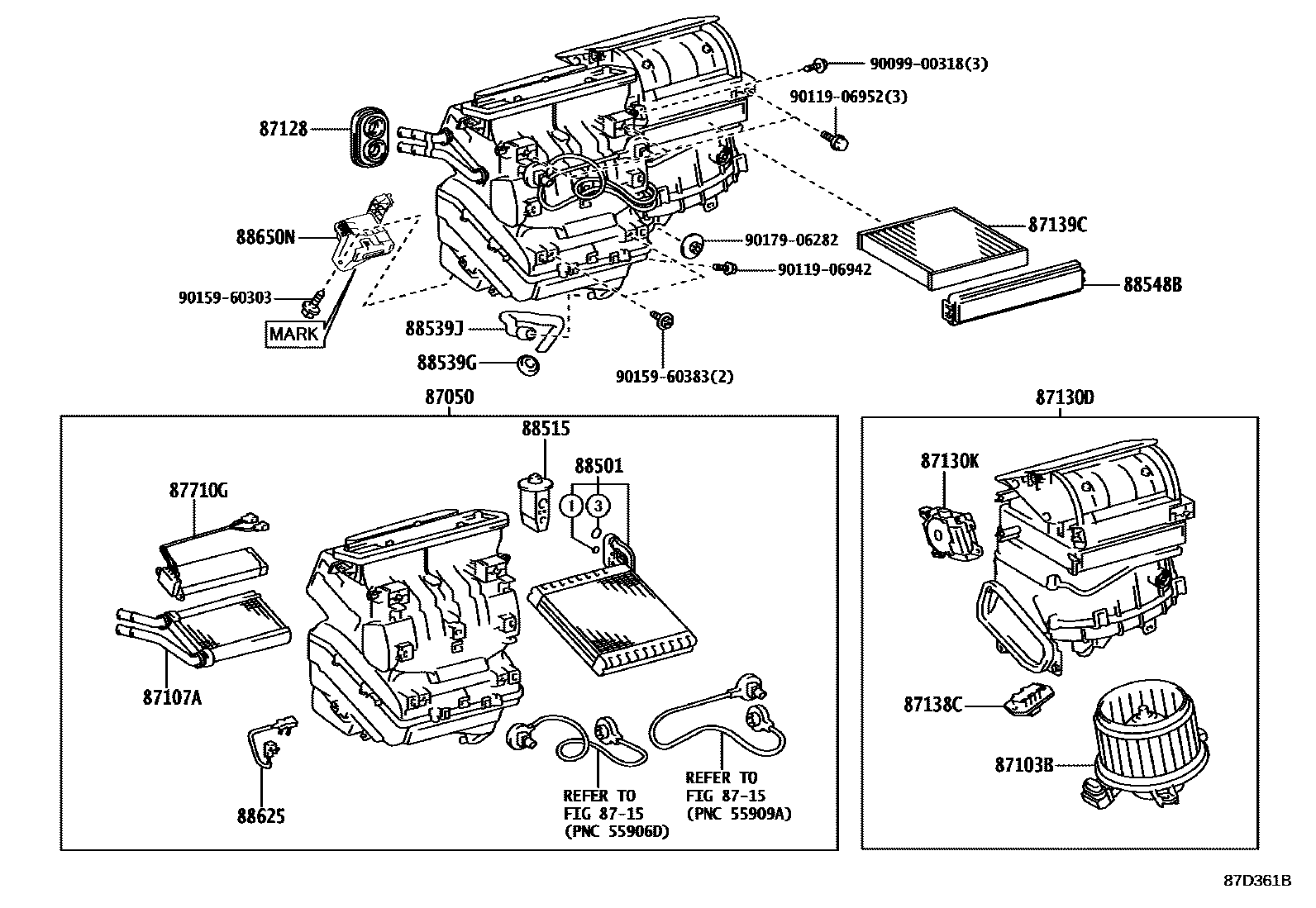

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MANUAL 0002 1AUTO 0005 1O-RING

87050RADIATOR ASSY, AIR CONDITIONER

main87050-12401iASA4#..LE201212-201504

REFER TO PNC 88650N

main87050-12420iASA4#..LIMD,XLE201212-201510

REFER TO PNC 88650N

main87050-42531iASA4#..LE201504-201510

REFER TO PNC 88650N

main87050-42531iASA4#..LE201510-201810

main87050-42541iASA4#..LIMD,SE,XLE201510-201810

main87050-42720iAVA44201510-201810

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-42090iASA4#..LE201212-201810

main87103-42101iASA4#..LIMD,XLE201212-201810

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-42170iASA4#201212-201810

87128GROMMET, HEATER

main87128-42010iASA4#201212-201810

87130DBLOWER ASSY

main87130-12561iASA4#..LE201212-201504

main87130-12581iASA4#..LIMD,XLE201212-201510

main87130-42340iASA4#..LE201504-201810

main87130-42350iASA4#,AVA44..LIMD,SE,XLE201510-201810

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-42130iASA4#..LE201212-201504

main87106-42170iASA4#..LE201504-201810

main87106-47130iASA4#..LIMD,XLE201212-201510

main87106-47160iASA4#,AVA44..LIMD,SE,XLE201510-201810

87138CRESISTOR, BLOWER

main87138-26160iASA4#..LE201212-201810

87139CFILTER, CLEAN AIR

main87139-50100iASA4#..LIMD201212-201510

KOREA SPEC,DEODORANT FILTER

main87139-50100iASA4#201212-201510

*DPF

main87139-50100iASA4#,AVA44201510-201810

POLLEN DEODORANT,*DPF

main87139-52040iASA4#,AVA44201510-201810

POLLEN FILTER,POLLEN FILTER

main87139-52040iASA4#201212-201510

POLLEN FILTER

8715

87710GQUICK HEATER ASSY

main87710-12020iASA4#201212-201810

main87710-42040iAVA44201510-201810

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-72020iASA4#201212-201810

main88501-75010iAVA44201510-201810

88515VALVE, COOLER EXPANSION

main88515-12100iASA4#..LE201212-201510

main88515-30780iASA4#,AVA44201510-201810

main88515-68010iASA4#..LE201504-201510

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main90480-26030iASA4#201212-201810

88539JHOSE, DRAIN COOLER

main88539-42061iASA4#201212-201810

88548BCASE, AIR FILTER

main88548-42020iASA4#,AVA44201212-201810

88625THERMISTOR, COOLER, NO.1

main88620-42010iASA4#..LE201504-201708

sub88625-26090

main88625-26090iASA4#,AVA44201212-201810

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-42410iASA44..LE201212-201302

P/N LABEL=8865042410

main88650-42460iASA44..LIMD,XLE201212-201302

P/N LABEL=8865042460

main88650-42480iASA42..LE201212-201410

P/N LABEL=8865042480

main88650-42481iASA42..LE201410-201510

main88650-42490iASA42..LIMD,XLE201212-201410

P/N LABEL=8865042490

main88650-42491iASA42..LIMD,XLE201410-201510

main88650-42530iASA44..LE201302-201410

P/N LABEL=8865042530

main88650-42531iASA44..LE201410-201510

main88650-42550iASA44..LIMD,XLE201302-201410

P/N LABEL=8865042550

main88650-42551iASA44..LIMD,XLE201410-201510

main88650-42560iAVA44201510-201608

main88650-42590iASA42..LIMD,SE,XLE201510-201608

main88650-42600iASA44..LIMD,SE,XLE201510-201608

main88650-42610iASA42..LE201510-201608

main88650-42630iASA44..LE201510-201608

main88650-42680iASA42..LE201608-201810

main88650-42700iASA44..LE201608-201810

main88650-42730iASA42..LIMD,SE,XLE201608-201810

main88650-42740iASA44..LIMD,SE,XLE201608-201707

sub88650-42850

main88650-42760iAVA44201608-201810

main88650-42850iASA44..LIMD,SE,XLE201708-201810

9009900318

main90099-00318

9011906942

main90119-06942

9011906952

main90119-06952

9015960303

main90159-60303

9015960383

main90159-60383

9017906282

main90179-06282

23 parts on this diagram · 3 diagrams in section
