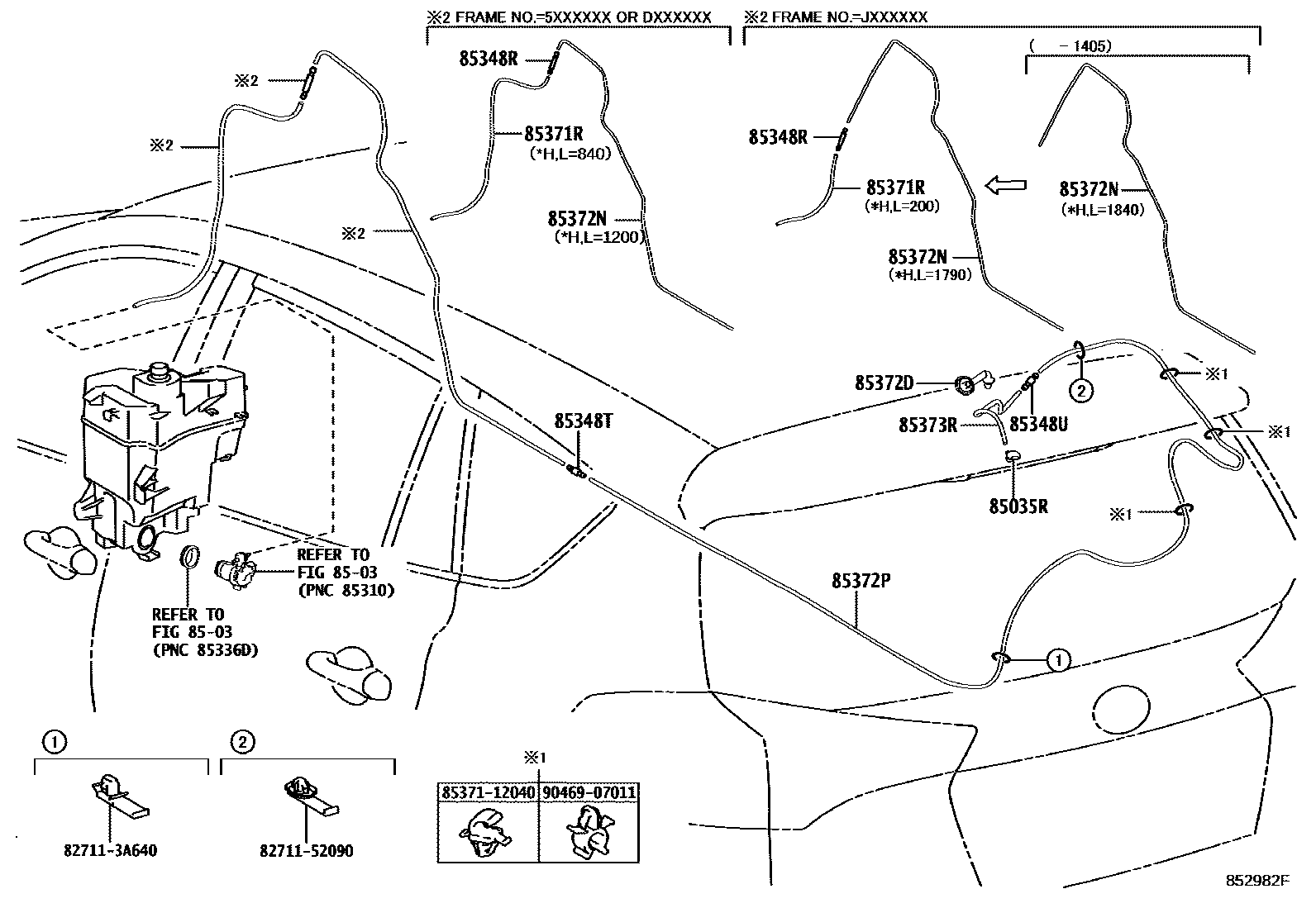

REAR WASHER

8503

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-42020iASA4#201212-201810

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-32150iASA4#201212-201810

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122iASA4#201212-201810

85348UJOINT, REAR WASHER HOSE, NO.3

main85349-89122iASA4#201212-201810

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33080iASA4#201212-201510

L=1450(*H,L=840),*562

main90099-33080iASA4#201312-201510

L=1450(*H,L=200),*561

main90099-33080iASA4#,AVA44201510-201810

L=1450(*H,L=200),*561,*562

85372DGROMMET, REAR WASHER HOSE

main85373-44010iASA4#201212-201810

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-33382iASA4#201212-201510

L=1200,*562

main90099-33382iASA4#201312-201510

L=1840,*561

main90099-33382iASA4#201405-201510

L=1790,*561

main90099-33382iASA4#,AVA44201510-201810

L=1200,*561,*562

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90099-62098iASA4#201212-201810

L=3374

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-62065iASA4#201212-201810

L=350

827113A640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A640

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-12040

9046907011

main90469-07011

14 parts on this diagram · 1 diagram in section
