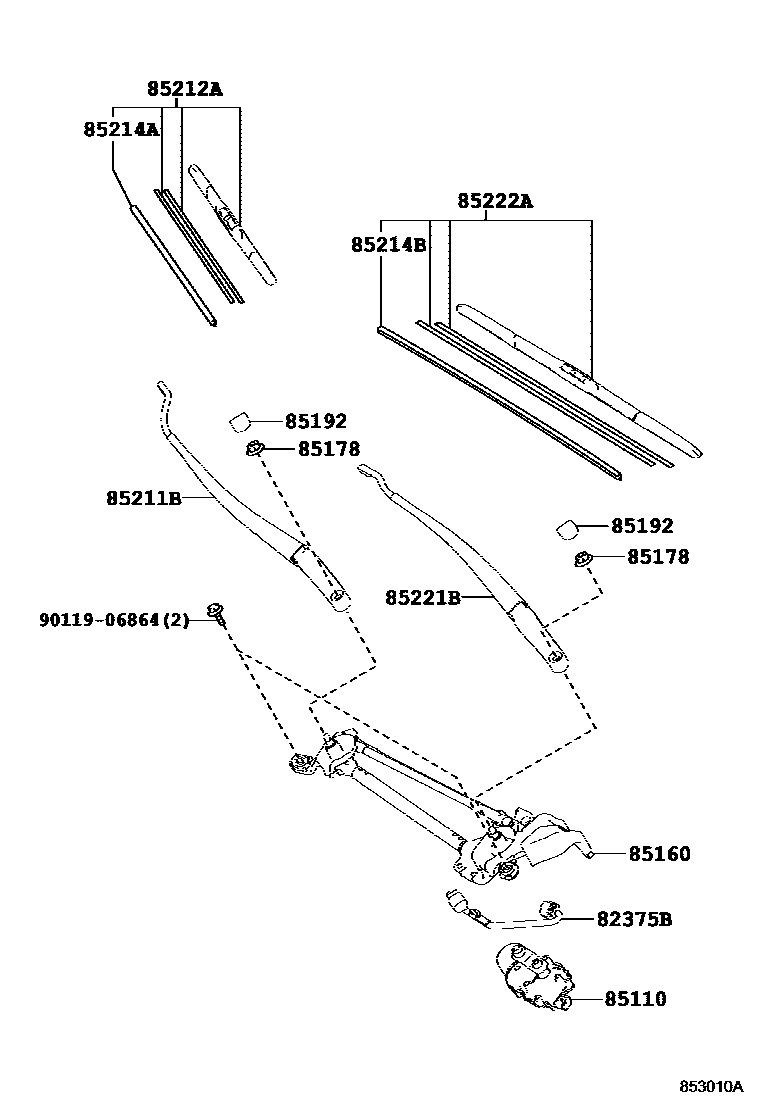

WINDSHIELD WIPER

0001 1 0002 1

82375BWIRE, WIPER MOTOR

main82375-48020iASA4#,AVA44201212-201810

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-42190iASA4#201212-201810

85160LINK ASSY, WINDSHIELD WIPER

main85150-42170iASA4#201212-201810

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006iASA4#201212-201810

85192COVER, WINDSHIELD WIPER ARM

main85292-13010iASA4#201212-201810

85211BARM, FRONT WIPER, RH

main85211-42140iASA4#201212-201810

85212ABLADE, FR WIPER, RH

main85212-42130iASA4#,AVA44201212-201810

85214ARUBBER, WIPER, RH

main85214-28090iASA4#,AVA44201212-201810

85214BRUBBER, WIPER, LH

main85214-52110iASA4#201309-201810

main85214-68020iASA4#201212-201308

sub85214-52110

85221BARM, FRONT WIPER, LH

main85221-42140iASA4#,AVA44201212-201810

85222ABLADE, FR WIPER, LH

main85222-42120iASA4#201212-201810

9011906864

main90119-06864

12 parts on this diagram · 2 diagrams in section
