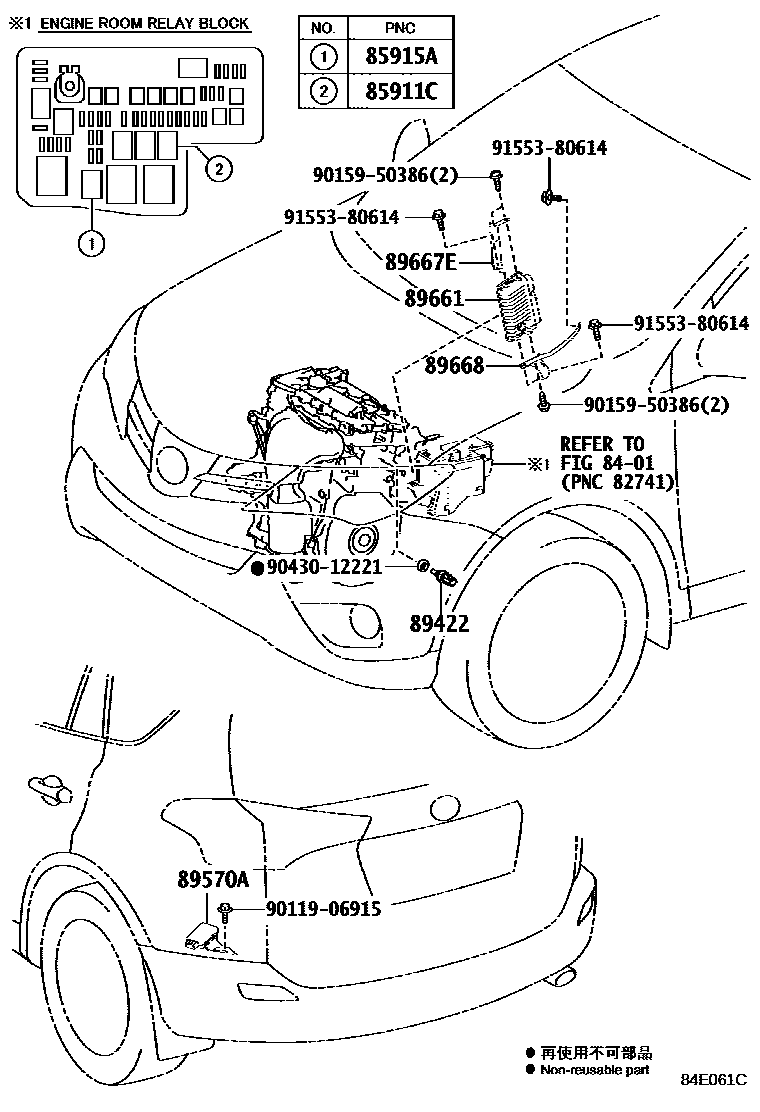

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

8401

85911CRELAY, EFI 2

main90987-02027iASA4#201212-201810

85915ARELAY, MAIN

main90987-02027iASA4#201212-201810

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iASA4#201212-201810

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-42010iASA42201212-201510

main89570-42030iASA42,AVA44201510-201810

89661COMPUTER, ENGINE CONTROL

main89661-42K50iASA42201212-201311

P/N LABEL=8966142K50

sub89661-42U31

main89661-42K60iASA44201212-201311

P/N LABEL=8966142K60

sub89661-42U41

main89661-42K70iAVA44201510-201706

sub89661-42K71

main89661-42K71iAVA44201707-201810

DENSO

main89661-42U30iASA42201311-201410

P/N LABEL=8966142U30

sub89661-42U31

main89661-42U40iASA44201311-201410

P/N LABEL=8966142U40

sub89661-42U41

main89661-42U60iASA42201410-201505

P/N LABEL=8966142U60

sub89661-42U61

main89661-42U61iASA42201506-201510

sub89661-42U62

main89661-42U70iASA44201410-201505

P/N LABEL=8966142U70

sub89661-42U71

main89661-42U71iASA44201506-201510

sub89661-42U72

main89661-42V90iASA42201510-201611

sub89661-42V91

main89661-42V91iASA42201612-201707

sub89661-42V92

main89661-42V92iASA42201708-201804

DENSO

sub89661-42V93

main89661-42V93iASA42201805-201810

DENSO

main89661-42W00iASA44201510-201612

sub89661-42W01

main89661-42W01iASA44201701-201804

sub89661-42W02

main89661-42W02iASA44201805-201810

DENSO

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-42060iASA4#,AVA44201212-201810

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-42060iASA4#201212-201810

main89668-78020iAVA44201510-201810

9011906915

main90119-06915

9015950386

main90159-50386

9043012221

main90430-12221

9155380614

main91553-80614

12 parts on this diagram · 3 diagrams in section
